OWNER MAINTENANCE
25
SPECIFICATION:
"H"
Horizontal centre line of headlights
from ground:
Low Beam: 27.2 in. (690 mm)
High Beam: 26.5 in. (674 mm)
"W"
Distance between each headlight cen-
tre :
Low Beam: 52.6 in. (1,336 mm)
High Beam: 43.2 in. (1,098 mm)
"L"
Distance between the headlights and
the wall that the lights are tested
against : 118.11 in. (3,000 mm)

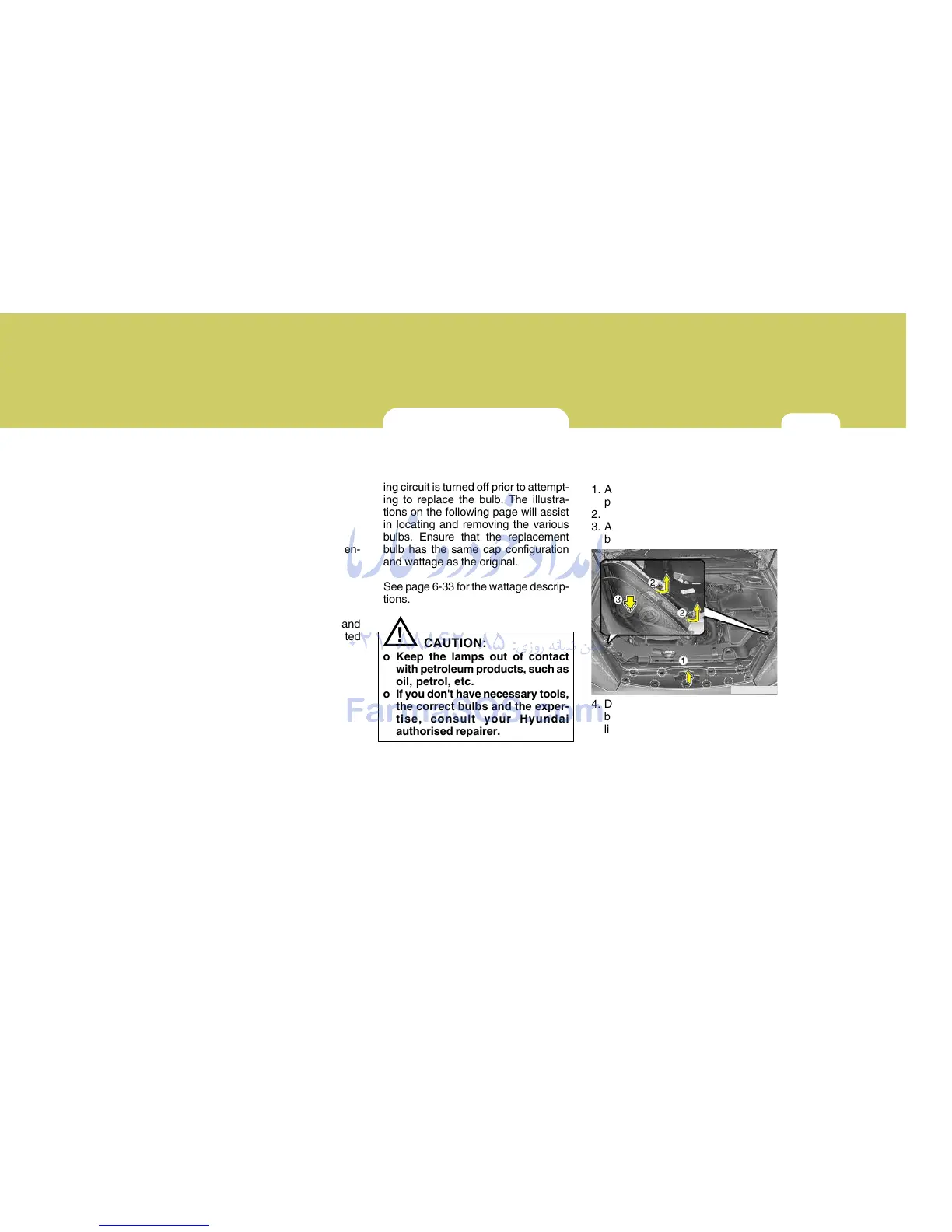

REPLACING LIGHT BULBS
G260A01MC-EAT
In the event of bulb failure being expe-
rienced, ensure that the relative light-
ing circuit is turned off prior to attempt-
ing to replace the bulb. The illustra-
tions on the following page will assist
in locating and removing the various
bulbs. Ensure that the replacement
bulb has the same cap configuration
and wattage as the original.
See page 6-33 for the wattage descrip-
tions.
CAUTION:
o Keep the lamps out of contact
with petroleum products, such as
oil, petrol, etc.
o If you don't have necessary tools,
the correct bulbs and the exper-
tise, consult your Hyundai
authorised repairer.
!
G270A01GK-EAT
Headlight and Front Turn Signal
Light
1. Allow the bulb to cool. Wear eye
protection.
2. Open the engine bonnet.
3. Always grasp the bulb by its plastic
base, avoid touching the glass.
4. Disconnect the power cord from the
bulb base in the back of the head-
light.
OGK076066N
