Adding and removing drives
7-
1
1

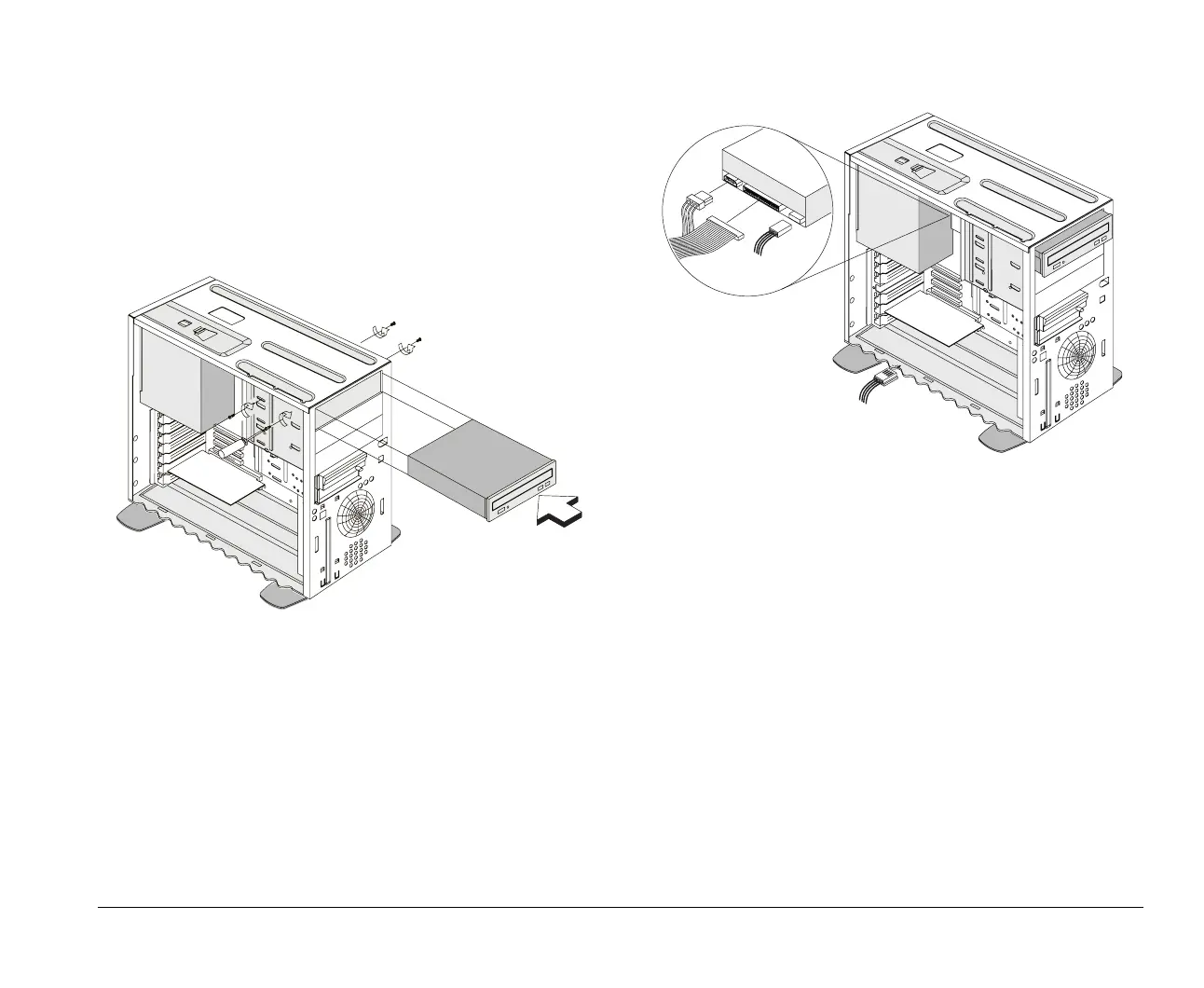

Installing a drive in bay 1, 2,
or 3
1.
Inser
t the drive into the ba
y
.
2.
Align the screw holes and secure the driv
e with f
our
screws
.
.
3.
Connect the powe
r and signal cables to the driv
e.
