Removing the CD/DVD cable
To remove the CD/DVD cable, complete the following steps:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.
2. Turn off the server (see “Turning off the server” on page 21) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables from the server.
3. Remove the top cover (see “Removing the server top cover” on page 33).
4. Remove the air baffle (see “Removing the air baffle” on page 365).
5. Remove the CD/DVD drive (see “Removing a CD/DVD drive” on page 305).

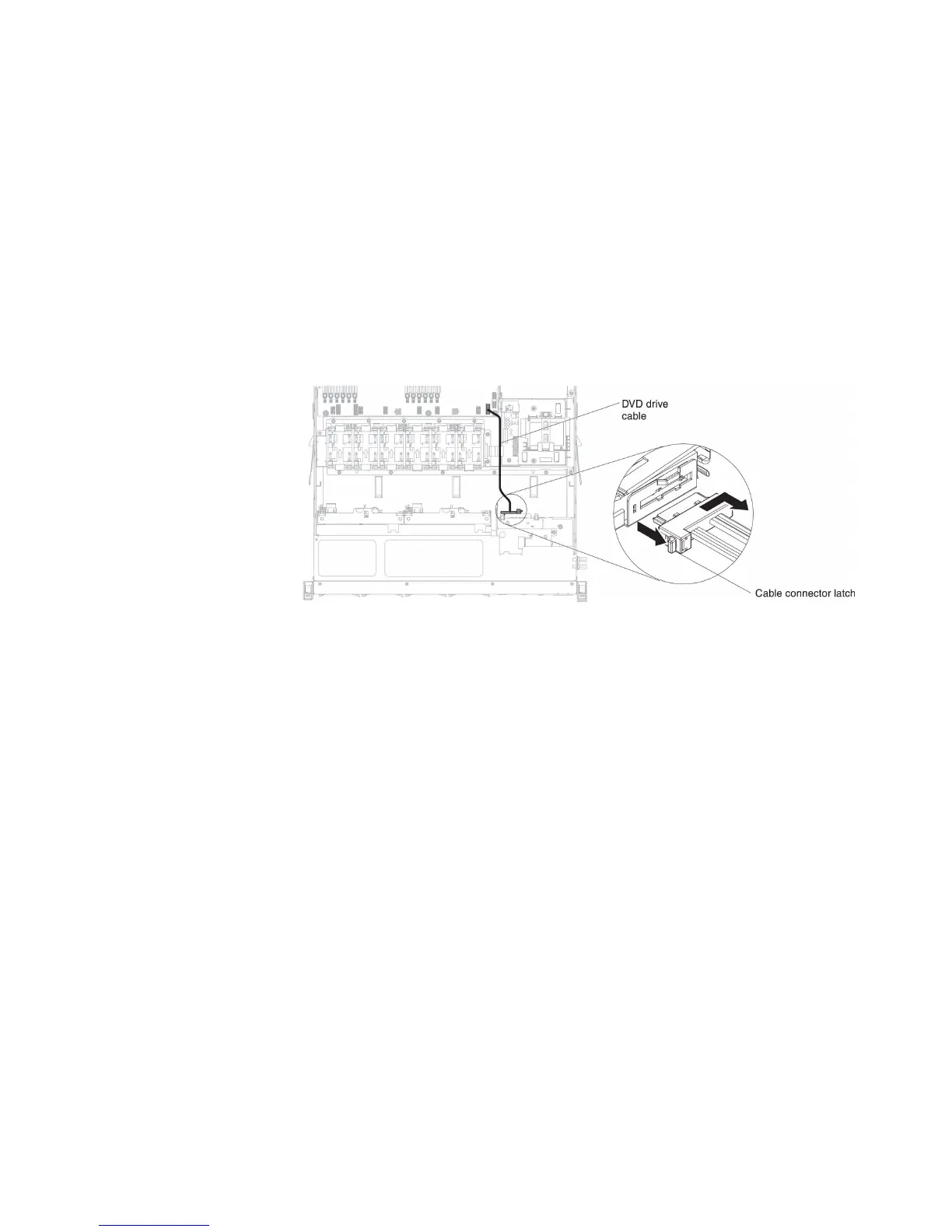

6. From the front of the server, grasp the cable connector latch and pull it up
toward the rear of the server; then, slide the cable connector to the unlock
position.
7. Remove the cable from the optical drive cage connector.
8. Disconnect the other end of the CD/DVD cable from the connector on the
system board.
9. Disengage the cable clips and remove the CD/DVD cable from the server.
10. If you are instructed to return the CD/DVD cable, follow all packaging
instructions, and use any packaging materials for shipping that are supplied
to you.
Replacing the CD/DVD cable
To install the CD/DVD cable, complete the following cable:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.
2. Align the cable connector with the connector on the rear of the optical drive
cage and press the cable connector into the optical drive cage connector.
3. From the front of the server, grasp the cable connector latch and pull it up
toward the rear of the server; then, slide the cable connector to the lock
position.
Chapter 6. Removing and replacing components 309
