IBM System x3650 M4 BD Type 5466 User Manual

v If using Installation Tool A, twist the microprocessor installation tool
handle counterclockwise to the open position.
v If using Installation Tool B,▌1▐lift the interlock latch and hold it up
while you▌2▐twist the microprocessor installation tool handle
counterclockwise to the open position, and then release the interlock
latch. The following illustration of the installation tool shows the
location of the interlock latch and counterclockwise rotation of the
handle before loading the microprocessor.
b. Align the installation tool with the screws, as shown in the following
graphic, and lower the installation tool on the microprocessor. The
installation tool rests flush on the socket only when it is aligned correctly.

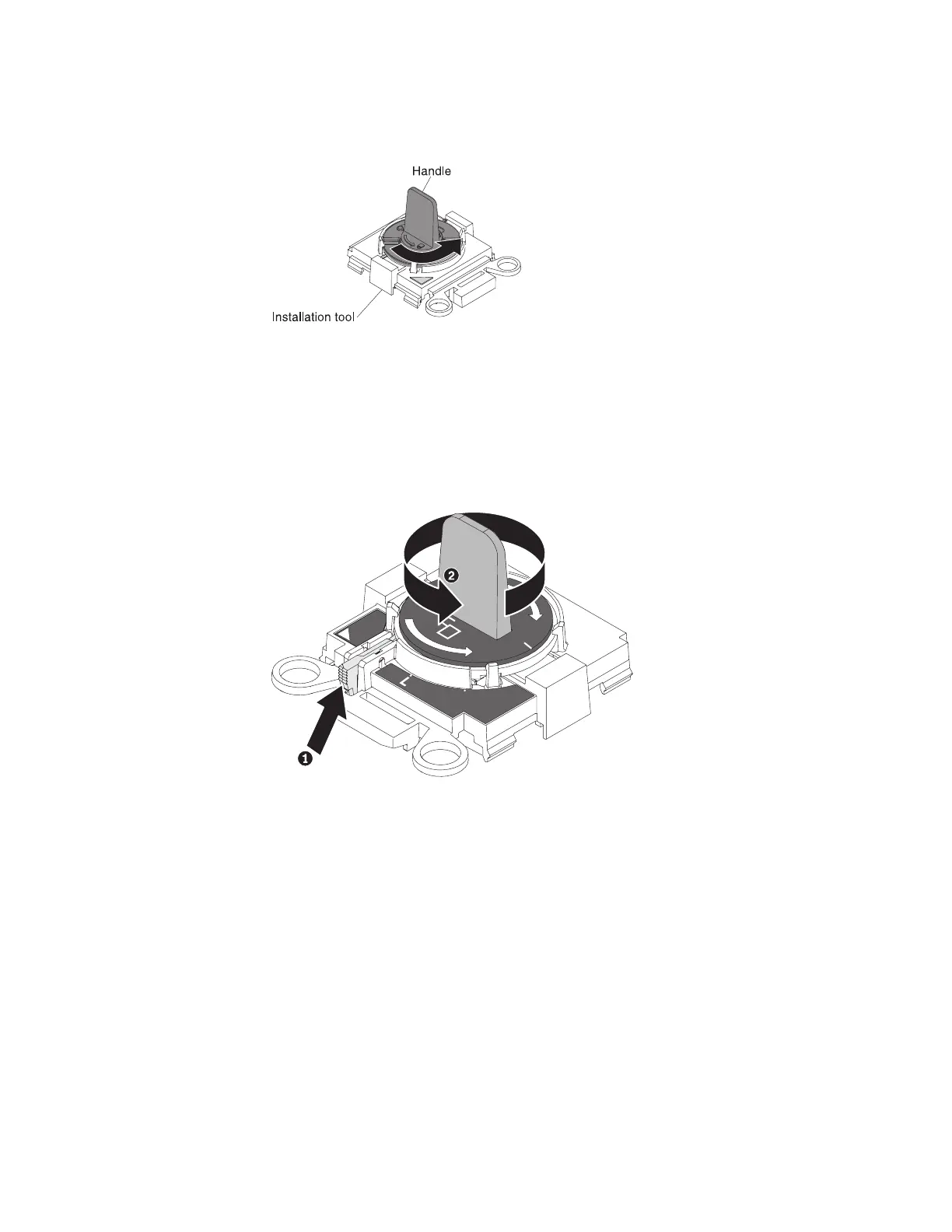

Figure 161. Installation tool handle adjustment
H
Figure 162. Installation tool handle adjustment
Chapter 6. Removing and replacing components 241

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
