Icom IC-9700 Service Manual

3-2

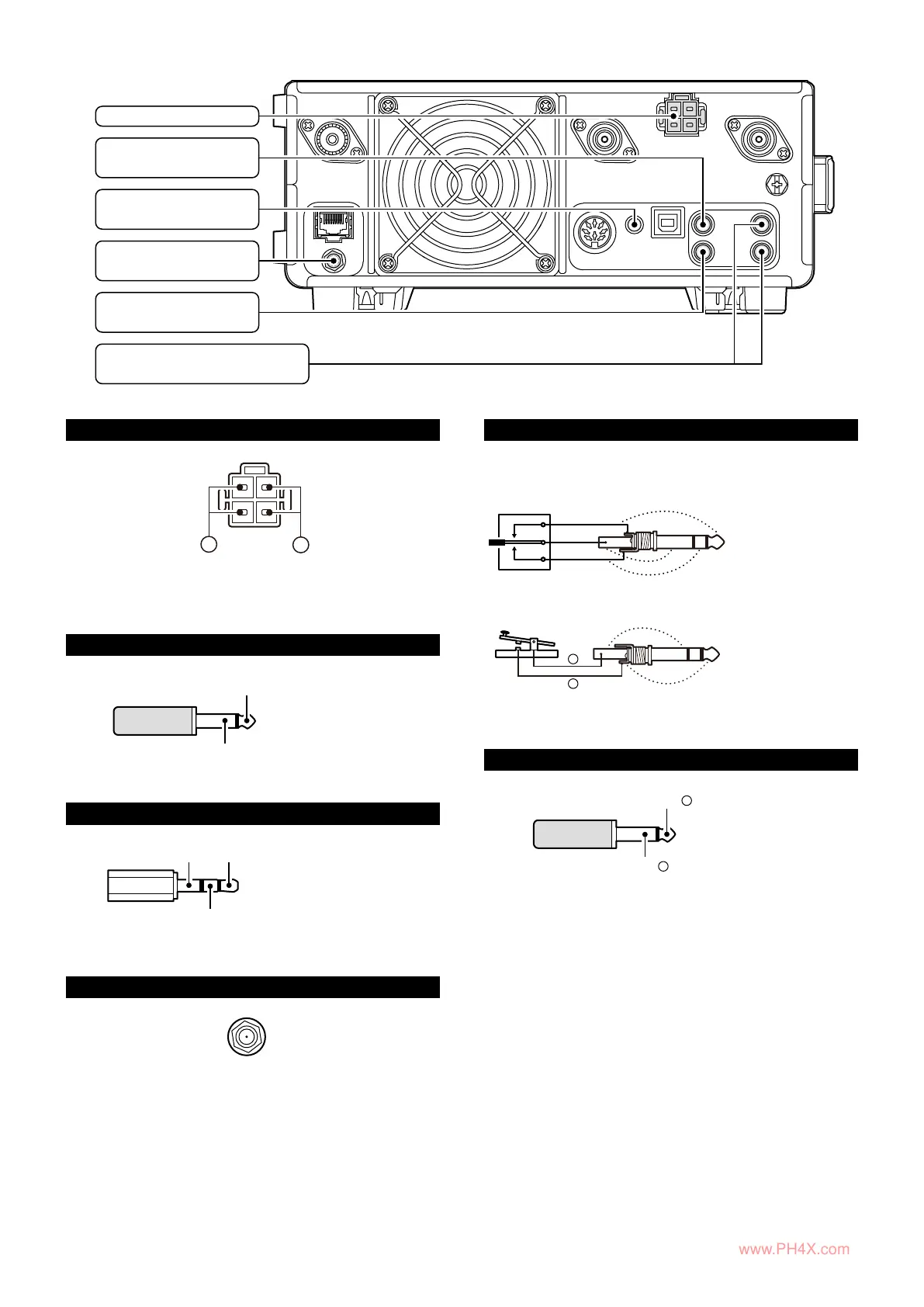

● REAR panel (1)
[REF IN 10MHz]
• SMA connector: 50 Ω
[REMOTE]
• 3.5 mm (⅛ in) (d)
[DC 13.8 V]
[KEY]
• 3.5 mm (⅛ in) (d)
[EXT-SP MAIN]/[EXT-SP SUB]
• 3.5 mm (⅛ in) (d)
[DATA]
• 2.5 mm (d)
[DC 13.8 V]
Rear panel view
+
−
• Input voltage: 13.8 V DC ±15%
[REMOTE]
3.5 mm (⅛ in) (d)
GND
I/O
[DATA]
2.5 mm (¹⁄10 in) (d)
GND TxD
RxD
• Data communication: RS-232C compliant
[REF IN 10MHz]
SMA connector
• Input frequency: 10 MHz
• Impedance: 50 Ω (unbalanced)
• Input level: –10 dBm (approximate)
[KEY]
Connects to a Paddle key or Straight key.
• Paddle key
3.5 mm (⅛ in) (d)
Dot
Com
Dash
• Straight key
3.5 mm (⅛ in) (d)
+
−
[EXT-SP MAIN]/[EXT-SP SUB]
Audio −
Audio +
3.5 mm (⅛ in) (d)
• Output impedance: 4~8 Ω
• Output level: More than 2.0 W at 10%
distortion into an 8 Ω load.
