Icom IC-9700 Service Manual

SECTION 2 INSIDE VIEWS
2-1
CLOCK GENERATOR
(IC8701)
ADC
(IC7501)
[DATA] (J2901)
[ACC] (J2911)
[LAN] (J1901)
[REF IN 10MHz]
(W131:CHASSIS)
J9151
CPLD
(IC301)
FLASH ROM
(IC331)
FPGA
(IC7601)
DAC
(IC7201)
MAIN-CPU
(IC101)
LVDS DRIVER
(IC8693)
CLOCK DIVISION IC
(IC8692)
Inside the shielded case.
SUB-CPU
(IC311)
DV-DSP
(IC502)
USB HUB
(IC1601)
USB CODEC
(IC1531)
J9501
J2881
SDRAM
(IC102)
DAC
(IC2001)
APC AMPLIFIER
(IC2541)
ALC AMPLIFIER
(IC2501)
J9401
J9101
J9301
J9201
J3071
J3091
J3081
J3021
J3111
J3101
J9001
J8661
[USB] (J1601)
[REMOTE]/[KEY]
(J2891)
[EX-SP MAIN]/
[EX-SP SUB]
(J2891)
REFERENCE
OSCILLATOR
(X1)
Inside the shielded case.
+5 V REGULATOR
(IC1221)

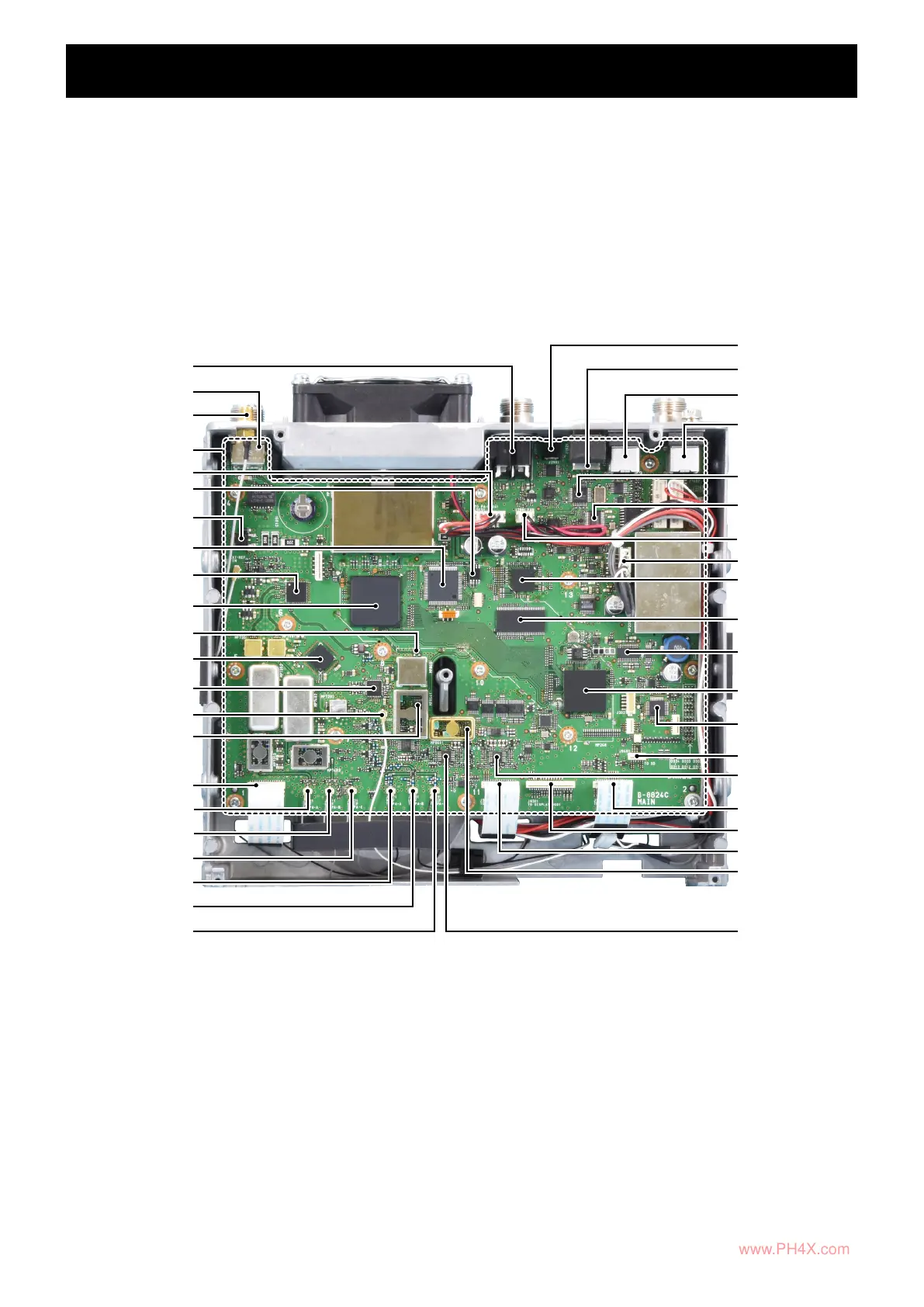

• MAIN UNIT (TOP VIEW)
MAIN UNIT
