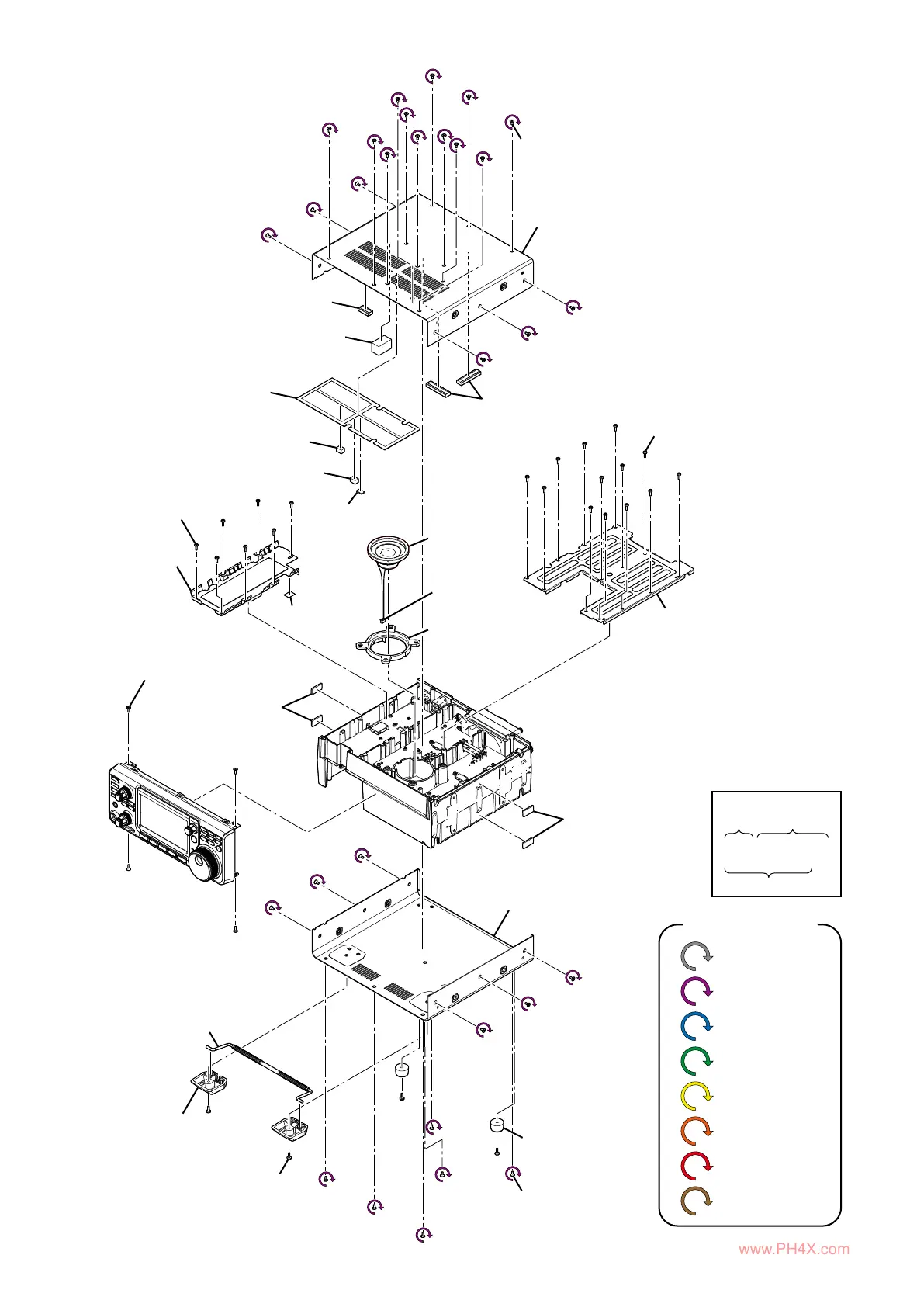

Icom IC-9700 Service Manual

6-3
W41 (CHASSIS)
(8600037710)
SP1 (CHASSIS)
(2510002001)
MP2 (CHASSIS)
(8110011590)
MP4 (CHASSIS)
(8110011570)
MP5 (CHASSIS)
(8110011580)
MP20 (CHASSIS)
(8930100240)
MP21 (CHASSIS)×18
(8810009061)
MP32 (CHASSIS)×2
(8930002900)
MP33 (CHASSIS)
(8930074520)
MP34 (CHASSIS)×2
(8930075100)
MP35 (CHASSIS)×4
(8810005771)
MP36 (CHASSIS)×12
(8810009061)
MP51 (CHASSIS)
(8930093300)
MP56 (CHASSIS)×13
(8810008661)
MP58 (CHASSIS)×4
(8810009651)
MP64 (CHASSIS)
(8930074910)
MP64 (CHASSIS)
(8930074910)
MP68 (CHASSIS)
(8930076541)
MP69 (CHASSIS)
(8930078841)
MP70 (CHASSIS)
(8930076780)
MP78 (CHASSIS)
(8930072800)
MP79 (CHASSIS)
(8930093910)
MP80 (CHASSIS)
(8930093910)
MP63 (CHASSIS)
(8930098820)
MP3 (CHASSIS)
(8110011600)
MP57 (CHASSIS)×7
(8810008661)
Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
: <0.8 (N•m)>
: <0.7 (N•m)>
: <0.6 (N•m)>
: <0.5 (N•m)>
: <0.4 (N•m)>
: <0.3 (N•m)>
: <0.2 (N•m)>
: <0.1 (N•m)>
Tightening torque
www.PH4X.com

Icom IC-9700 Specifications

General

Receiver Type	Triple conversion superheterodyne
Display	4.3 inch color TFT touch screen
Type	VHF/UHF/1.2GHz All Mode Transceiver
Receiver System	Triple conversion superheterodyne
D-STAR	Yes
Antenna Impedance	50 ohms
Power Supply	13.8V DC ±15%
Frequency Range	144-146 MHz, 430-440 MHz, 1240-1300 MHz
Mode	FM, SSB, CW, AM
Antenna Connector	2m/70cm: SO-239, 23cm: Type-N
Dimensions	240 x 94 x 238 mm
Weight	Approx. 4.7 kg
RF Power Output	2m/70cm: 100W, 23cm: 10W
GPS	Yes (Internal)
Sensitivity	0.18 μV (FM)
