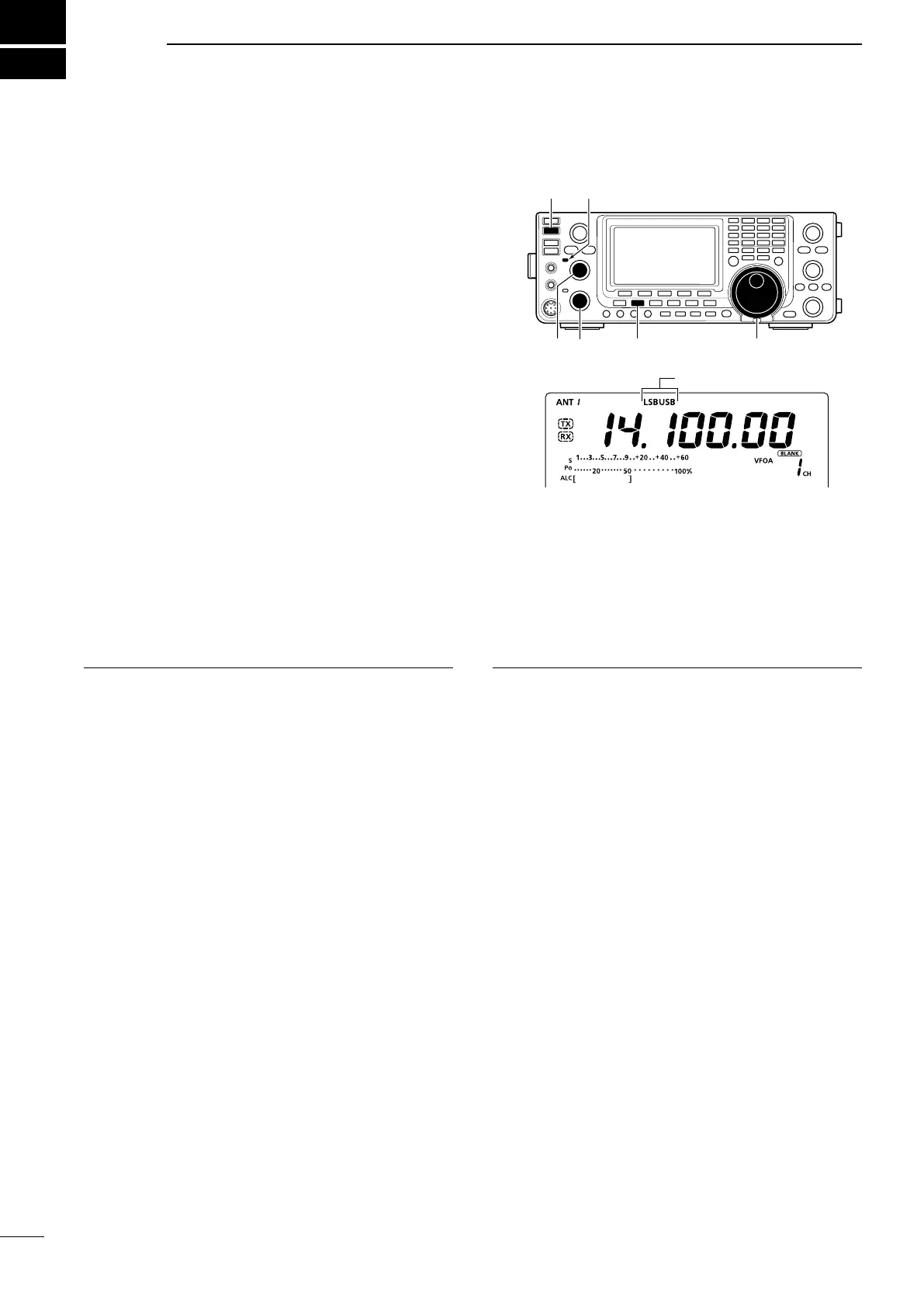

RECEIVE AND TRANSMIT
AGC TBW SCP
M1
[DIAL][SSB][AF][MIC]
[TRANSMIT] TX indicator
“LSB” or “USB” appears
■ Operating SSB
q Select the desired band. (p. 25)
w Push [SSB] to select the LSB or USB mode.
•When operating above 10 MHz, USB is selected first;
when operating below 10 MHz, LSB is selected first.
•Ifdesired,after USBorLSB is selected, hold down
[SSB] for 1 second to select the data mode.
e Rotate [DIAL] to tune a desired signal.
•TheS-meterindicatesthereceivedsignalstrength.
•Thetuningstepcanbechangedinthetuningsteppro-
gram mode. (p. 27)
r Rotate the [AF] control to adjust the audio to a com-
fortable listening level.
t Push [PTT] on the microphone to transmit (or
[TRANSMIT] on the transceiver).
•TheTXindicatorlightsred.
y Speak into the microphone at your normal voice
level.
•Rotatethe[MIC]controltoadjustthemicrophonegain
at this step, if necessary.
u Release [PTT] to receive (or push [TRANSMIT]
again).
Convenient Receive functions
•Preampandattenuator(p.55)
•TwinPBT(PassbandTuning)(p.59)
•AGC(AutoGainControl)(p.56)
•NoiseBlanker(p.60)
•NoiseReduction(p.61)
•Notchlter(p.61)
•VSC(VoiceSquelchControl)(p.76)
Convenient Transmit functions
•SpeechCompressor(p.64)
•VOX(VoiceOperatedTransmit)(p.62)
•Transmitqualitymonitor(p.65)
•Transmitlterwidthselection(p.64)
•Audiotonecontrol(pp.90,91)
