q POWER SWITCH [POWER] (p. 23)
➥ Push to turn ON the transceiver power.
  •First,conrmtheDCpowersourceisturnedON.
➥ Hold down for 1 second to turn OFF the power.
w TRANSMIT SWITCH [TRANSMIT] (p. 34)
Push to select transmit or receive.
 •Whiletransmitting,theTXindicator(@1) lights red.
 •Whilereceivingorwhenthesquelchopens,theRXindi-
cator (i) lights green.
e ANTENNA TUNER SWITCH [TUNER] (pp. 83, 84)
➥ Push to turn the internal antenna tuner ON or
OFF (bypass).
  •WhenthetunerisON,“ ” appears.
  •Theinternalantennatunersettingscanbememo-
rized in each frequency band.
➥ Hold down for 1 second to manually start the an-
tenna tuner.
  •Ifthetunercannottunetheantennawithin20sec-
onds, the tuning circuit is automatically bypassed.
r ANTENNA•METER SWITCH [ANT•METER]
ANTENNA SWITCH Operation
➥ Push to select either the ANT1 or ANT2 connec-
tor. (p. 82)
METER SWITCH Operation
➥ Hold down for 1 second to display either the
COMP or SWR meter in addition to the ALC
meter. (p. 33)
t HEADPHONE JACK [PHONES] (p. 17)
Plug in standard stereo headphones. Impedance: 8
to 16
ø.
 •Outputpower:5mWwithan8ø load.
 •Whenheadphonesareconnected,theinternalspeaker,
and any external speaker, are disabled.
y ELECTRONIC KEYER JACK [ELEC-KEY]
Plug in a bug or paddle type key to use the internal
electronic keyer for CW operation. (p. 16)
 •SelecttheELEC-KEY,BUGKEYorStraightkeykeyer
type in the “Keyer Type” item of the Keyer Set mode.
 •Whenastraightkeyisconnected,“Straightkey”must
be selected in the “Keyer Type” item of the Keyer Set
mode. (p. 43)
 •Astraightkeyjackislocatedontherearpanel.See
[KEY] on pages 8 and 16.
 •Youcan reverse the keyer paddle polarity(dot and
dash) in the “Paddle Polarity” item of the Keyer Set
mode. (p. 42)
 •Fourkeyermemorychannelsareavailableforyourcon-
venience. (p. 40)
(dot)
(com)
(dash)
u MICROPHONE CONNECTOR [MIC]
Plug in the supplied or optional microphone.
 •Seepage22forappropriatemicrophonesandmicro-
phone connector information.
i RX INDICATOR
Lights green while receiving or when the squelch
opens.
o AF CONTROL [AF] (inner control; p. 31)
Rotate to adjust audio output level to the speaker or
headphones.

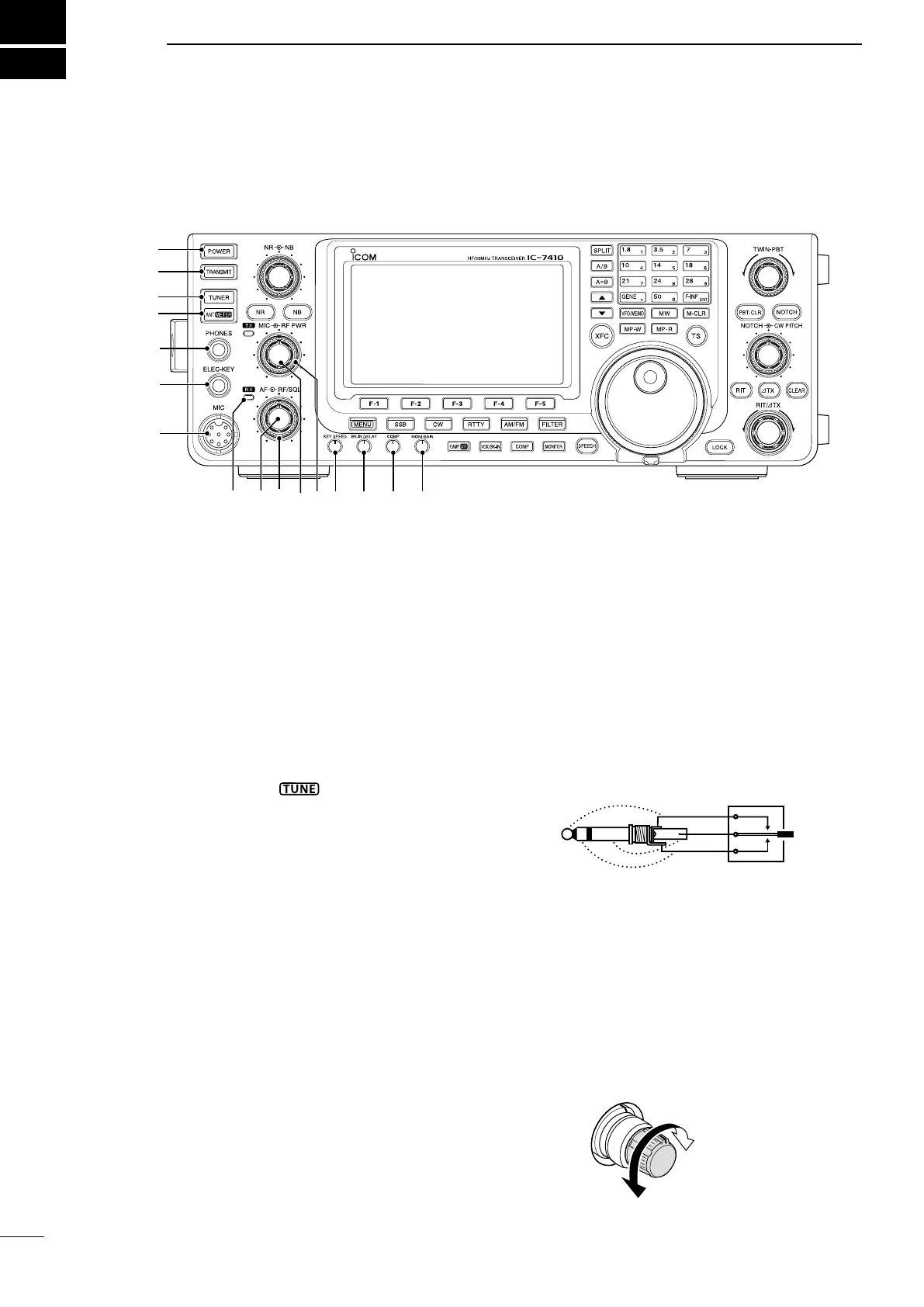

■ Front panel
1
1
PANEL DESCRIPTION
Increases
Decreases
t
i !4!3 !5 !6
y
e
r
u
!0
w
q
!2!1o
