Ihse Draco U-Switch User Manual

Draco U-Switch Description
21

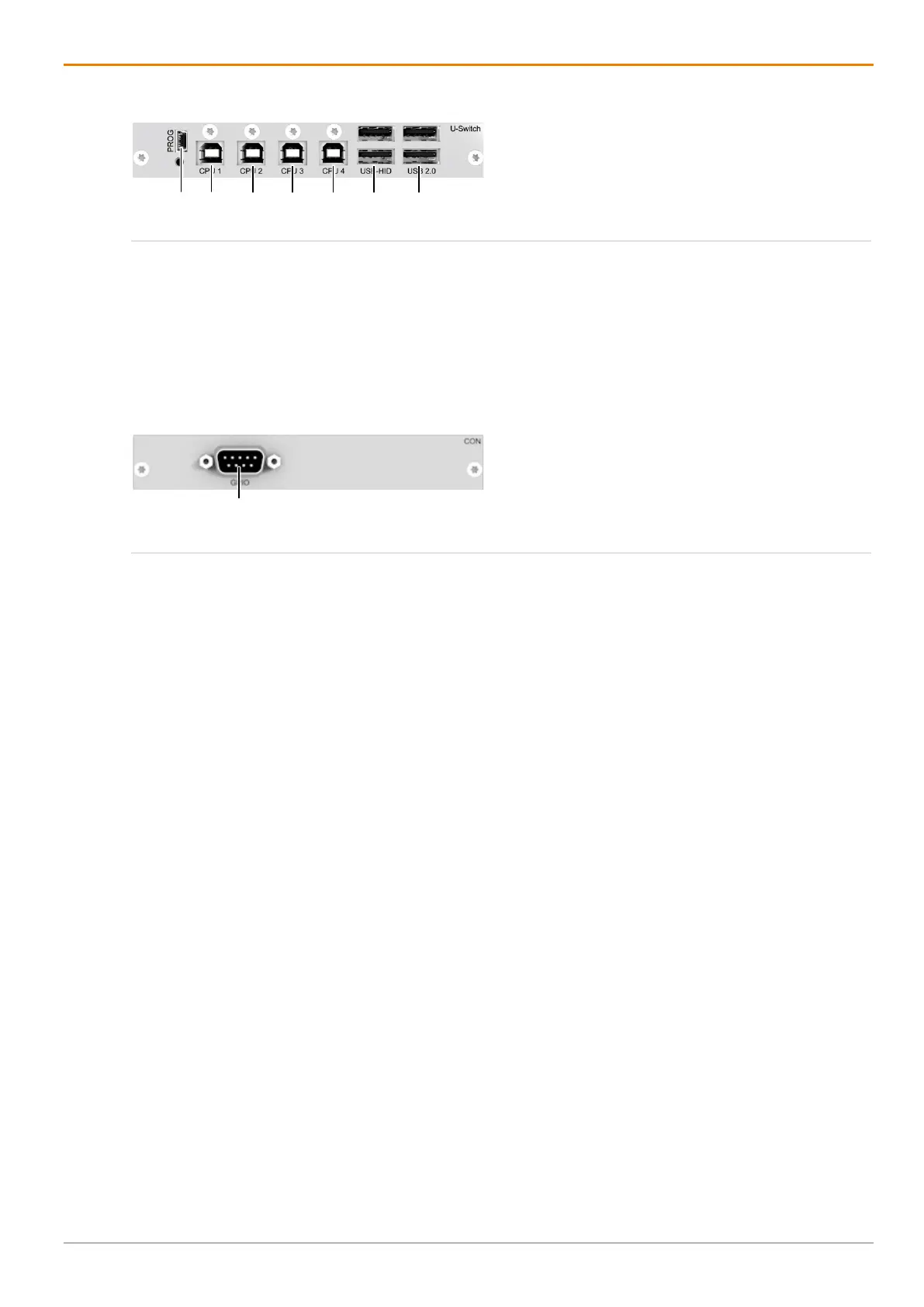

3.10 Device View U-Switch Module B476-4U4T
Fig. 16 Interface side U-Switch module B476-4U4T
1 Input Mini-USB (service)
2
CPU 1: Output USB-HID and USB 2.0
3
CPU 2: Output USB-HID and USB 2.0
4
CPU 3: Output USB-HID and USB 2.0
5 CPU 4: Output USB-HID and USB 2.0
6
Input / Output USB-HID
7
Input / Output USB 2.0 (up to 480 Mbit/s)
3.11 Device Views Add-on Module GPIO R474-BGX
Console side (CON module)
Fig. 17 Interface side R474-BGX
1 Input GPIO (D-Sub 9, male socket) for an external
switching solution via push button or dry-contact
1
2
3
4
1
5
6
7
