3.12.7 Status-LEDs 6-Slot-Chassis Draco vario 474-BODY6R-R1

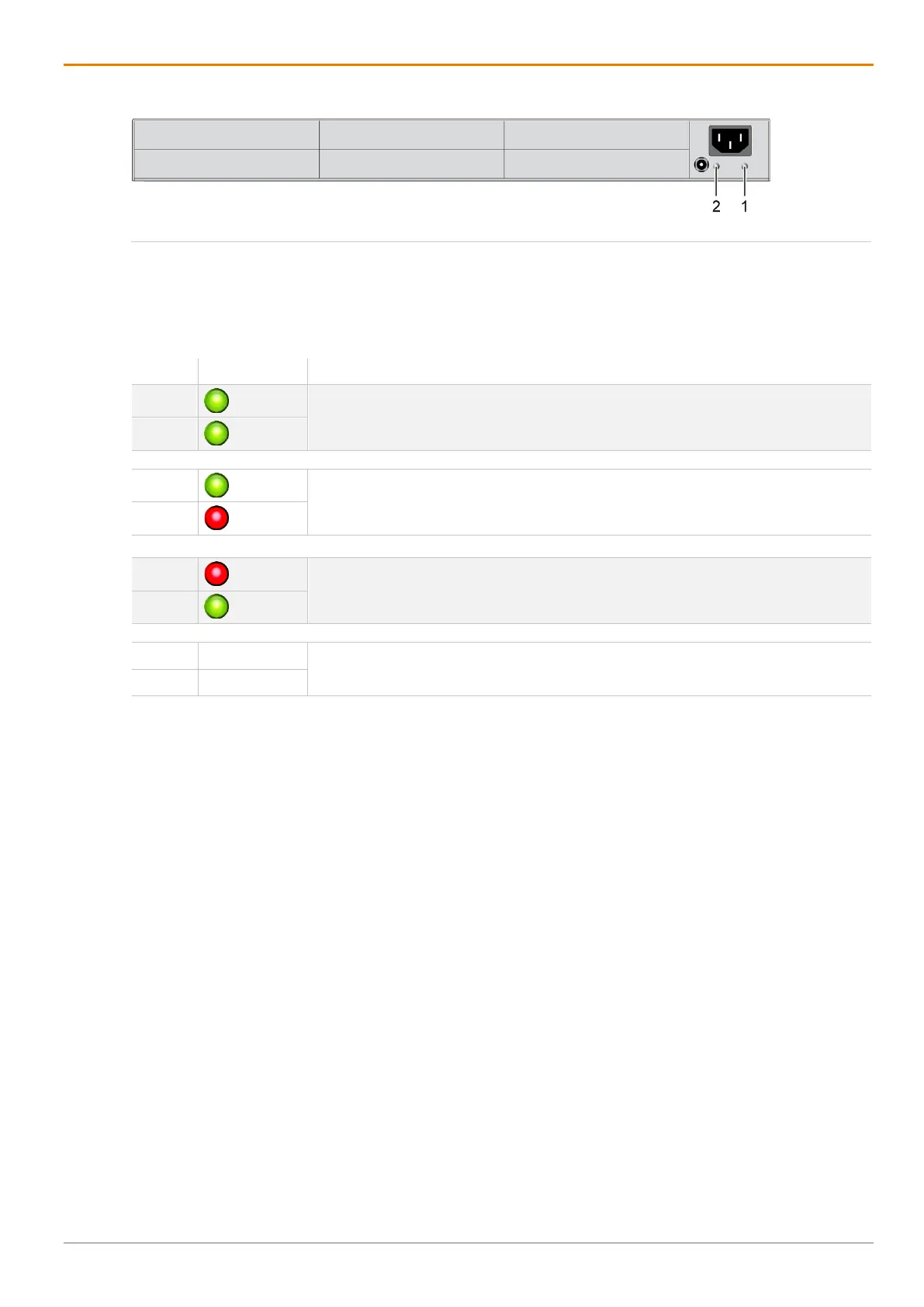

Fig. 24 Interface side chassis 474-BODY6R-R1 - Status LEDs
1 Status LED power supply voltage 1
2 Status LED power supply voltage 2
Status LEDs for Power Supply Voltage
The following tables show the LED states/colors for the power supply voltage (see chapter 3.9.7 page 18).
Pos. LED Description
1
Green
Redundant power supply voltage available
2
Green
1
Green
No redundant power supply voltage available
2
Red
1
Red
No redundant power supply voltage available
2
Green
1 Off
No power supply voltage available
2 Off
