3.12.5 Status LED 4-Slot-Chassis Draco vario 474-BODY4

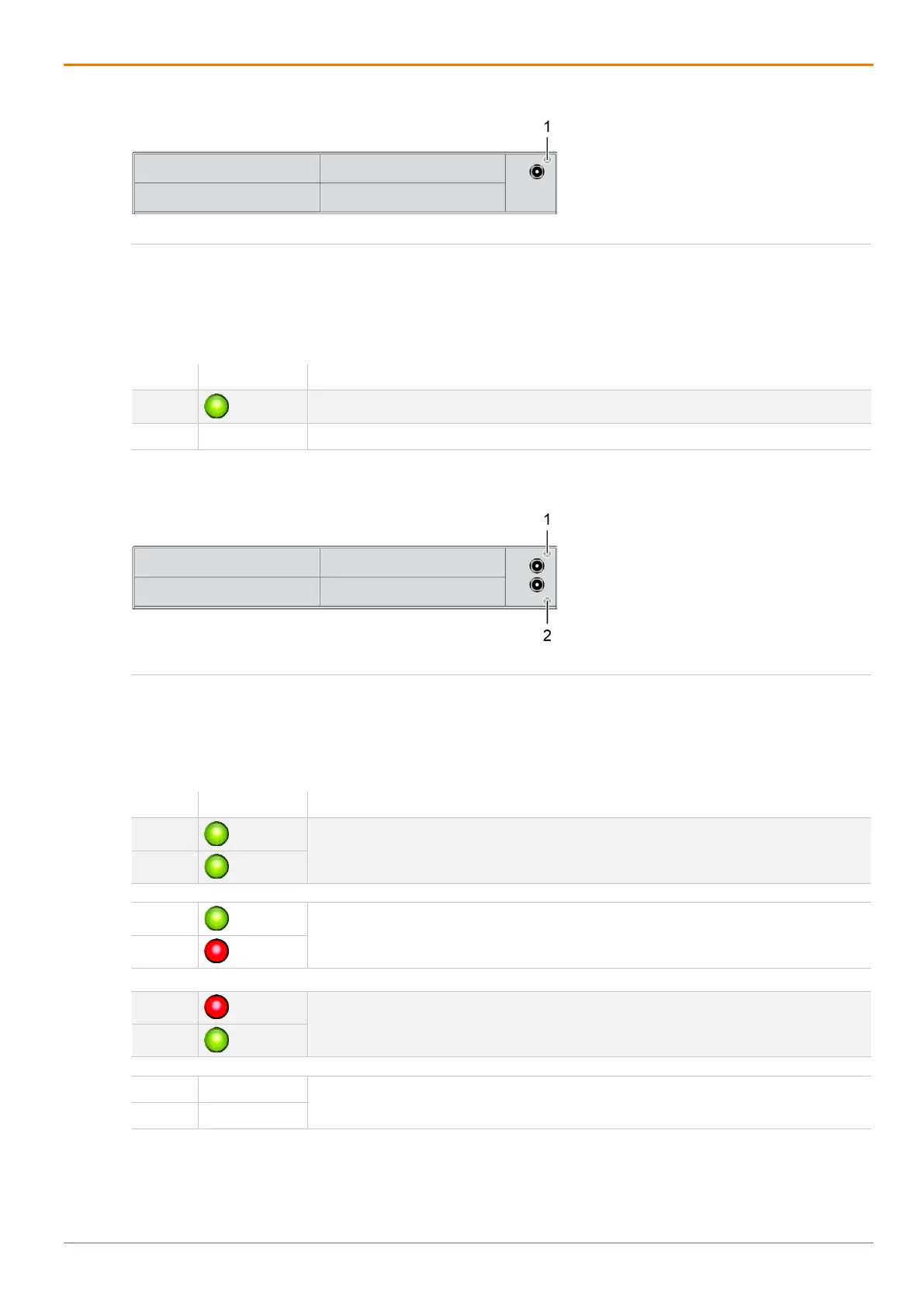

Fig. 22 Interface side chassis 474-BODY4 - Status LEDs
1 Status LED power supply voltage 1
Status LED for Power Supply Voltage
The following table shows the LED states/colors for the power supply voltage (see chapter 3.9.5, page 17).
Pos. LED Beschreibung
1
Grün
Power supply voltage available
2 Aus No power supply voltage available
3.12.6 Status LEDs 4-Slot-Chassis Draco vario 474-BODY4R
Fig. 23 Interface side chassis 474-BODY4R - Status LEDs
1 Status LED power supply voltage 1
2 Status LED power supply voltage 2
Status LEDs for Power Supply Voltage
The following tables show the LED states/colors for the power supply voltage (see chapter 3.9.6 page 18).
Pos.
LED
Description
1
Green
Redundant power supply voltage available
2
Green
1
Green
No redundant power supply voltage available
2
Red
1
Red
No redundant power supply voltage available
2
Green
1 Off
No power supply voltage available
2 Off
