3-4
A
A
B
B
Part. A
Part. B
1
2
2
3
4
4
5
5
9
8
8
8
9
6
6
7
7
27 - IE
INSTALLERUSERTECHNICIAN

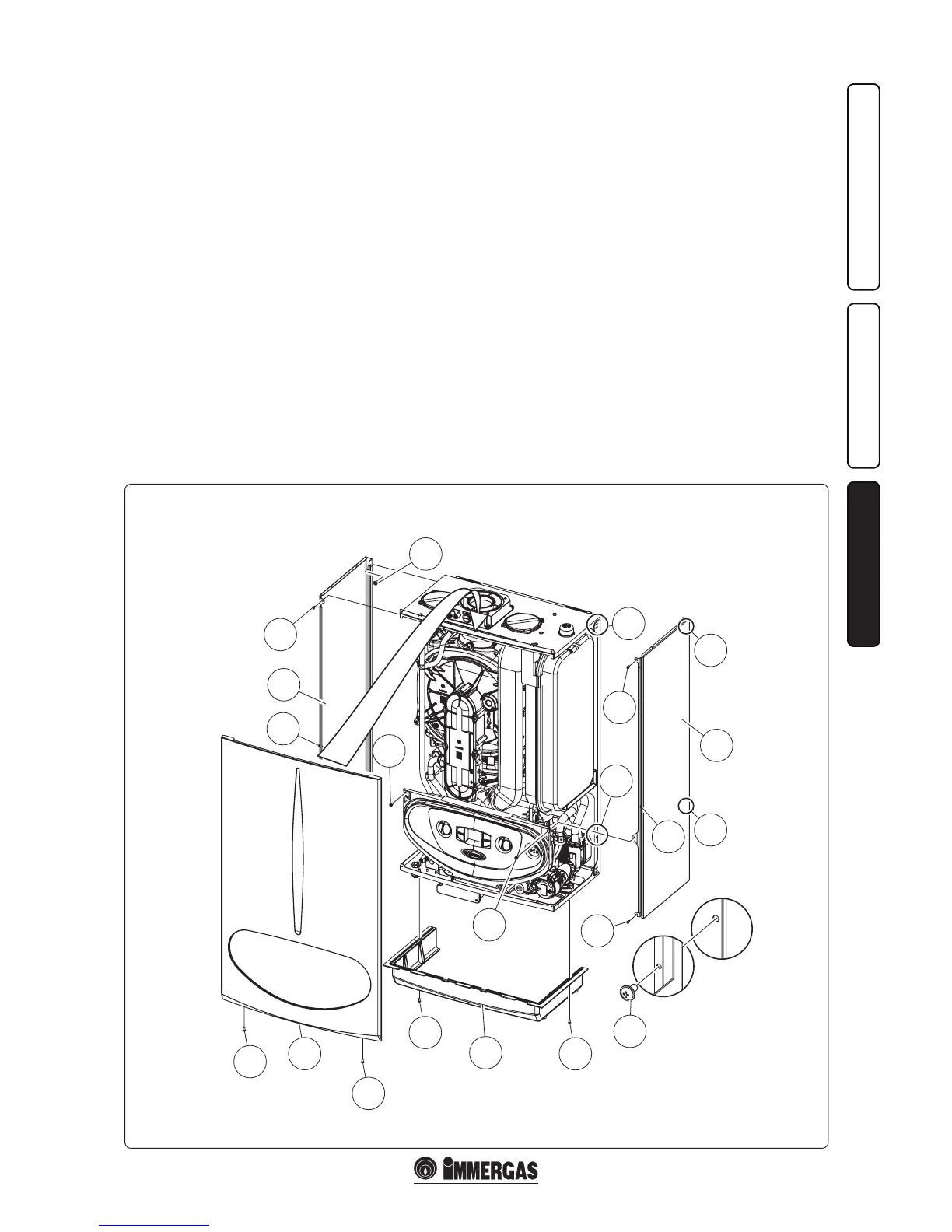

3.18 CASING REMOVAL.
To facilitate boiler maintenance the casing can
be completely removed as follows:
- disassemble the lower plastic protection grid
(1) by loosening the two lower screws (2);
- loosen the two screws (4) present in the lower
part of the casing front (3);
- unhook the central xing (6) exerting slight
pressure in the median zone of the side (5);
- pull the front casing slightly in the lower part
towards yourself and push upwards at the same
time (see gure);
- loosen the 2 front screws on the control panel
(7);
- loosen the screws (8) present in the front part
of the two sides (5);
- pull the sides lightly to the outside and loosen
the two rear screws using a screwdriver with
long point (9).
