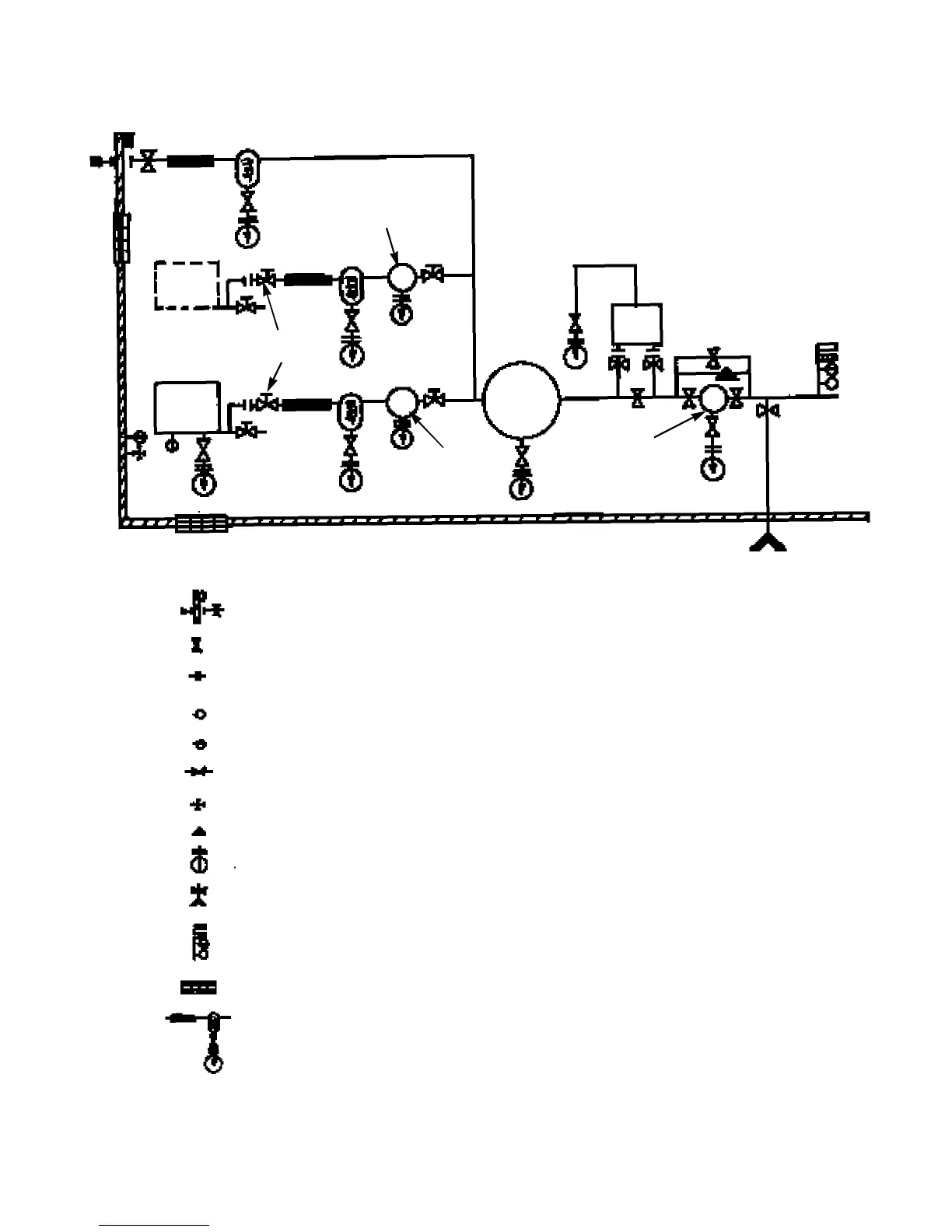

6.10 TYPICAL SYSTEM FLOW DIAGRAM (TWO BASE PLATE MOUNTED UNITS)
FUTURE
COMP.
ISOLATION
VALVE
PRE FILTER
AFTER
FILTER
DRYER
TOP
TO
SYSTEM
OUTSIDE
COMPRESSOR
ROOM
RECEIVER
BOT
PRE FILTER
GLADHAND Emergency Standby Air Hook Up.Complete with Necessary Fitting For Portable
or IR Rental Air Unit From Local IRDistributor
VALVE Water, Or Ball Type Valve
UNION Aids in Disconnecting Compressor From The System
PRESSURE GAUGE
DRIP LEG
MANOMETER
DIFFERENTIAL PRESSURE INDICATOR
THERMOMETER
I-R AUTOMATIC DRAIN VALVE
FALSE LOADER Blows Off Air Outside Of Compressor Room
SYSTEM INSTRUMENTATION INCLUDES
Nephelometer;Hygrometer;Pressure;Temperature
VENTILATION Moisture Louvers, Exhaust Fans
AFTERCOOLER/SEPARATOR, ISOLATION VALVE, UNION, STRAINER AND TRAP
To Next Page
