Inovance MD310 T1.5B User Manual

3 Easy Setup
- 12 -

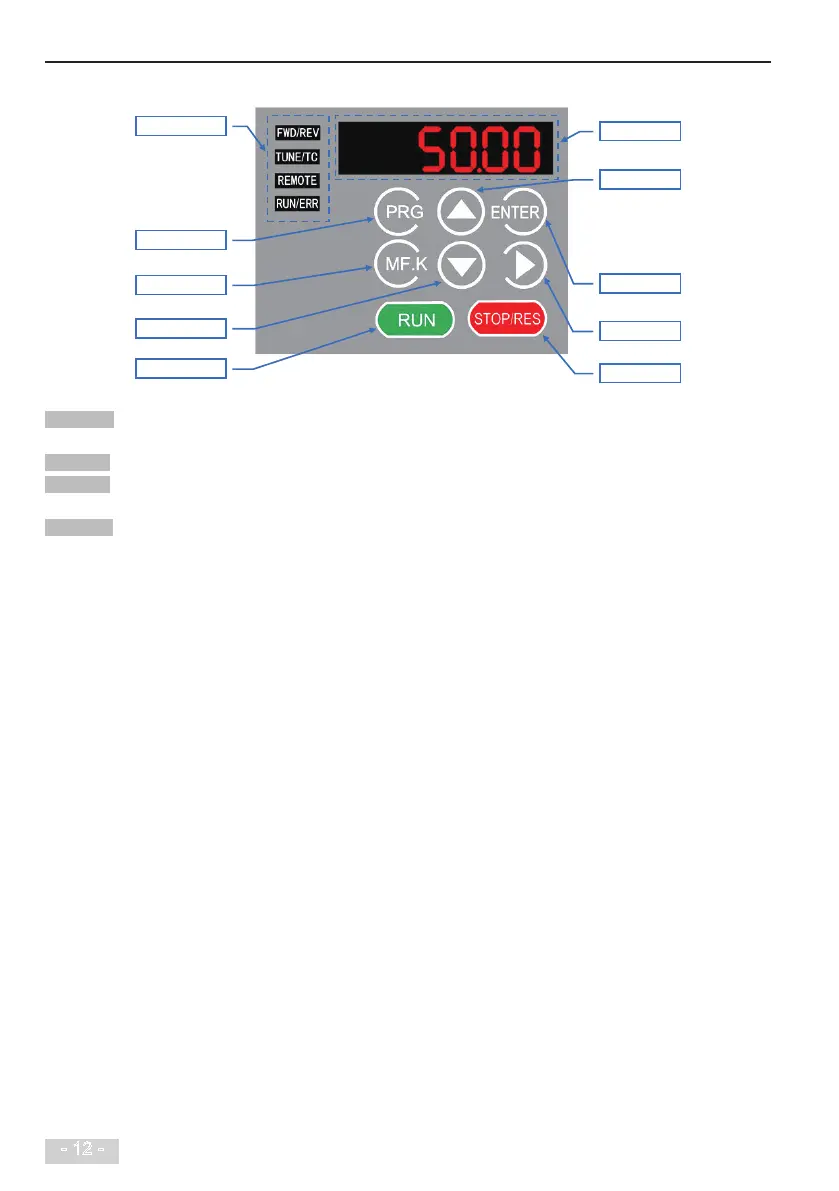

Step 1: Get Familiar With Keypad
Indicators
LED display
Confirm key
Shift key
Stop/Reset key
Programming key
RUN key
Decrement key
Increment key
Multi
-function key
■
Indicators
FWD/REV : It indicates forward or reverse rotation�
OFF indicates forward rotation and ON indicates reverse rotation�
TUNE/TC : ON indicates torque control mode, blinking slowly indicates auto-tuning state, blinking quickly indicates fault state�
REMOTE : It indicates whether the AC drive is operated by means of keypad, terminals or communication�
OFF indicates keypad control, ON indicates terminal control, and blinking indicates communication control�
RUN/ERR : It indicates the state of the AC drive�
OFF indicates the stop state, ON (green) indicates the running state, and ON (red) indicates the faulty state�
■
LED Display
The 5-digit LED display is able to display the frequency reference, output frequency, monitoring data and fault codes�

Inovance MD310 T1.5B Specifications

General

Power	1.5 kW
Storage Temperature	-20°C to +60°C
Power Supply Voltage	380-480 VAC
Control Mode	V/F control, Sensorless vector control
Protection Features	Over-voltage, Under-voltage, Over-current, Overload, Short-circuit
Communication Interface	RS485, Modbus RTU
Operating Temperature	-10°C to +40°C
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000 m
