Inovance MD310 T1.5B User Manual

3 Easy Setup
- 13 -
■

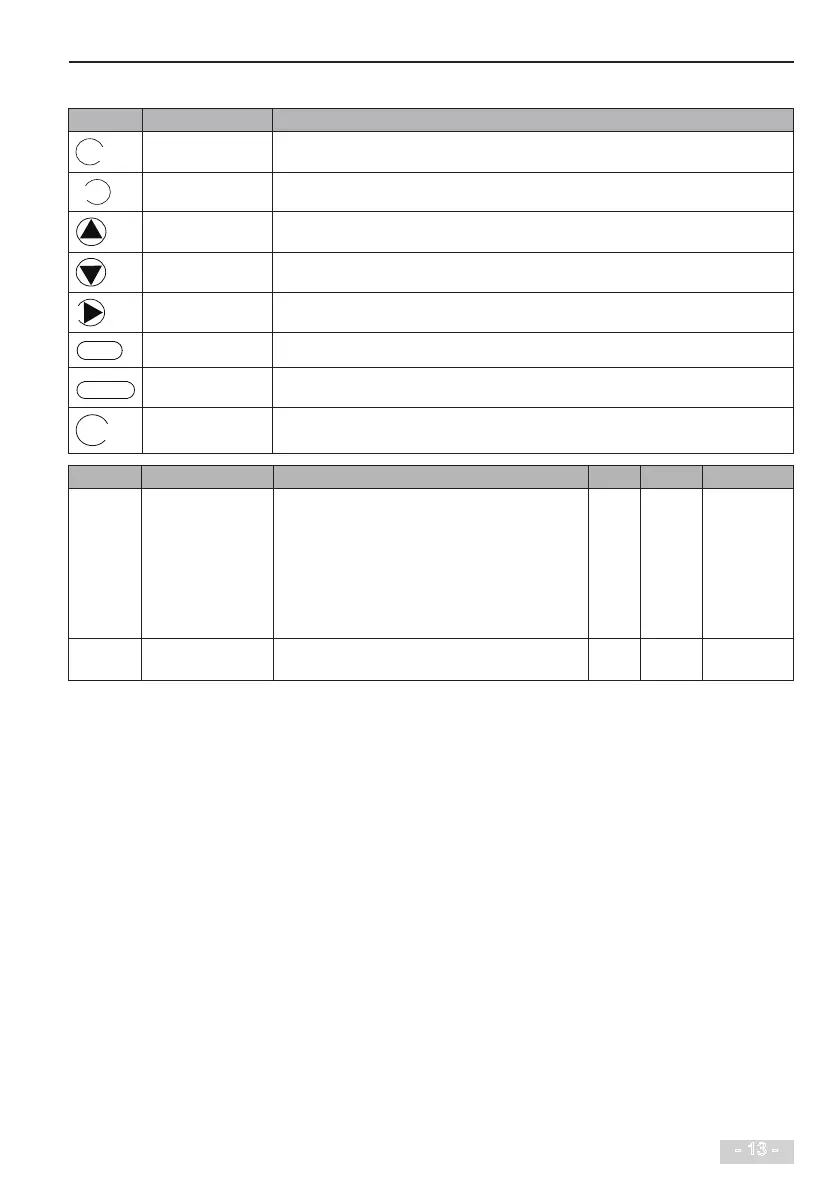

Keys On Keypad
Key Key Name Function
PRG
Programming Enter or exit Level I menu�
ENTER
Conrm Enter the menu interfaces level by level, and conrm the parameter setting.
Increment Increase data or Para� No��
Decrement Decrease data or Para� No��
Shift
Select the displayed parameters in turn in the stop or running state, and select the digit to be
modied when modifying parameters.
RUN
RUN Start the AC drive in the keypad operation mode�
STOP/RES
Stop/Reset
Stop the AC drive when it is in the running state and perform the reset operation when it is in the
faulty state� The functions of this key are restricted by F7-02�
MF�K
Multifunction
Perform function switchover (such as quick switchover of command source or direction)
according to the setting of F7-01�
Para� No� Para� Name Setting Range Unit Default Commission
F7-01 MF�K key function
selection
0: MF�K key disabled
1: Switchover from remote control (terminal or
communication) to keypad control
2: Switchover between forward rotation and reverse
rotation
3: Forward jog
4: Reverse jog
5: Individualized parameter display
N�A� 0
F7-02 STOP/RESET key
function
0: STOP/RESET key enabled only in keypad control
1: STOP/RESET key enabled in any operation mode
N�A� 1

Inovance MD310 T1.5B Specifications

General

Power	1.5 kW
Storage Temperature	-20°C to +60°C
Power Supply Voltage	380-480 VAC
Control Mode	V/F control, Sensorless vector control
Protection Features	Over-voltage, Under-voltage, Over-current, Overload, Short-circuit
Communication Interface	RS485, Modbus RTU
Operating Temperature	-10°C to +40°C
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000 m
