Product Overvi
ew
Intel
®
Server Board S5500BC TPS
Intel order number: E42249-003
Revision 1.0
4
2.2
Server Board Layout

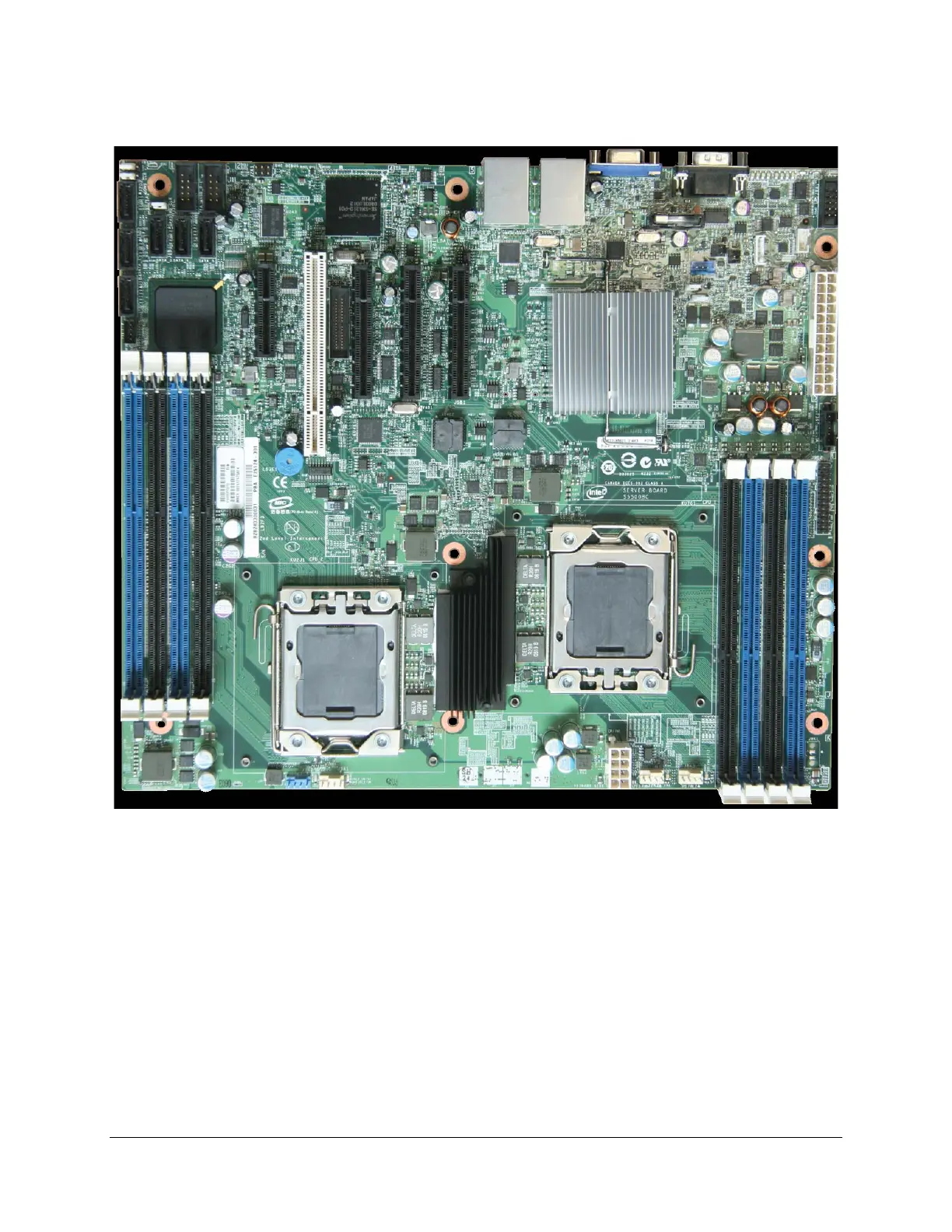

Figure 1. Intel
®
Server Board S5500BC picture
2.2.1
Server Board Connector and Component Layout
Figure 2 shows the board layout of the server board. Each connector and major component is
identified by a number or letter, and a description is below the figure.
