Intel E42249-003 Product Specification

Intel
®
Server Board S5500BC TPS Power and Environmental Specifications
Revision 1.0 Intel order number: E42249-003 75
Item Description Minimum Maximum Units
T
pwok_on
Delay from output voltages within regulation limits to PWOK
asserted at turn on.
100 500
msec
T
pwok_off
Delay from PWOK de-asserted to output voltages (3.3V, 5V,
12V, -12V) dropping out of regulation limits.
1
msec
T
pwok_low
Duration of PWOK in the de-asserted state during an off/on
cycle using AC or the PSOn signal.
100
msec
T
sb_vout
Delay from 5VSB in regulation to O/Ps in regulation at AC
turn on.
50 1000
msec
T
5VSB_holdup
Time the 5VSB output voltage stays within regulation after
loss of AC.
70
msec
V out
AC Input
PWOK
5 VSB
PSON
AF001024
T
vout_holdup
T
AC_on_delay
T
sb_on_delay
T
pwok_on
AC turn on/off cycle PSON turn on/off cycle
T
sb_vout
T
5VSB_holdup
T
pwok_holdup
T
pwok_off
T
pwok_low
T
pson_on_delay
T
sb_on_delay
T
pwok_on
T
pwok_off
T
pson_pwok

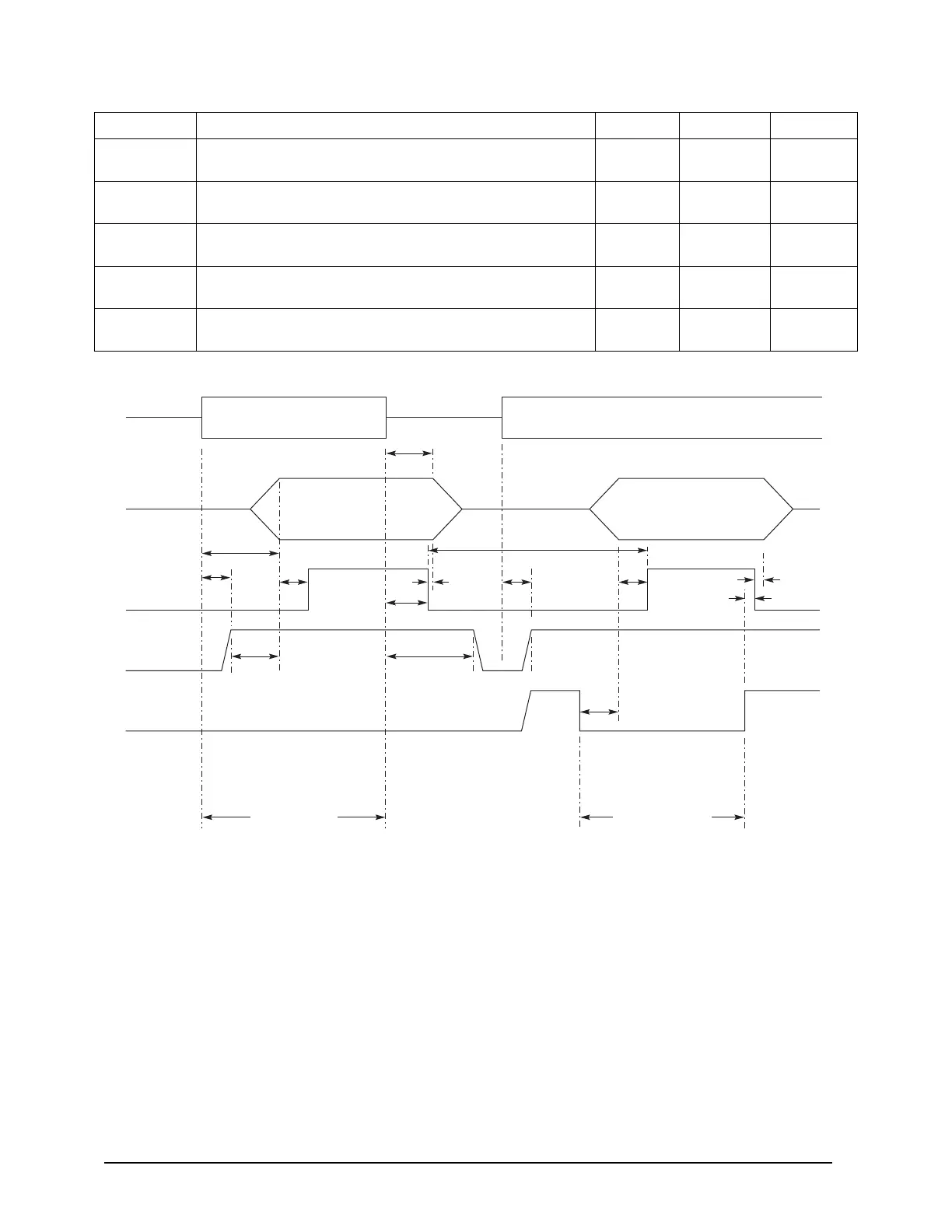

Figure 22. Turn On/Off Timing (Power Supply Signals)
8.2.14 Residual Voltage Immunity in Standby Mode
The power supply should be immune to any residual voltage placed on the outputs (typically a
leakage voltage through the system from standby output) up to 500 mV. There should be no
additional heat generated, or stress of any internal components with this voltage applied to any
individual output or all outputs simultaneously. It should not trip the power supply protection
circuits during turn on.
Residual voltage at the power supply outputs for a no load condition should not exceed 100 mV
when AC voltage is applied and the PSOn# signal is de-asserted.
