Server Board S5500BC TPS Functional Architecture
Revision 1.0 Intel order number: E42249-003 23
the board into an autonomous RAS memory. The server board is designed to support a DDR3-
based memory subsystem with eight DIMM slots.
 1 GB and 2 GB DRAM technology/density support.
 DDR3 800/1066/1333 MT/s support with up to 16 GB capacity.
 Single-rank and dual-rank support.
The BIOS can configure the memory controller dynamically in accordance with the available
DDR3 DIMM population and the selected RAS (reliability, availability, and serviceability) mode
of operation.
3.2.2 DIMM Population Requirements
DIMMs on this board are organized into physical slots on the DDR3 memory channels divided
between two processor sockets. For more information, refer to the following figure.

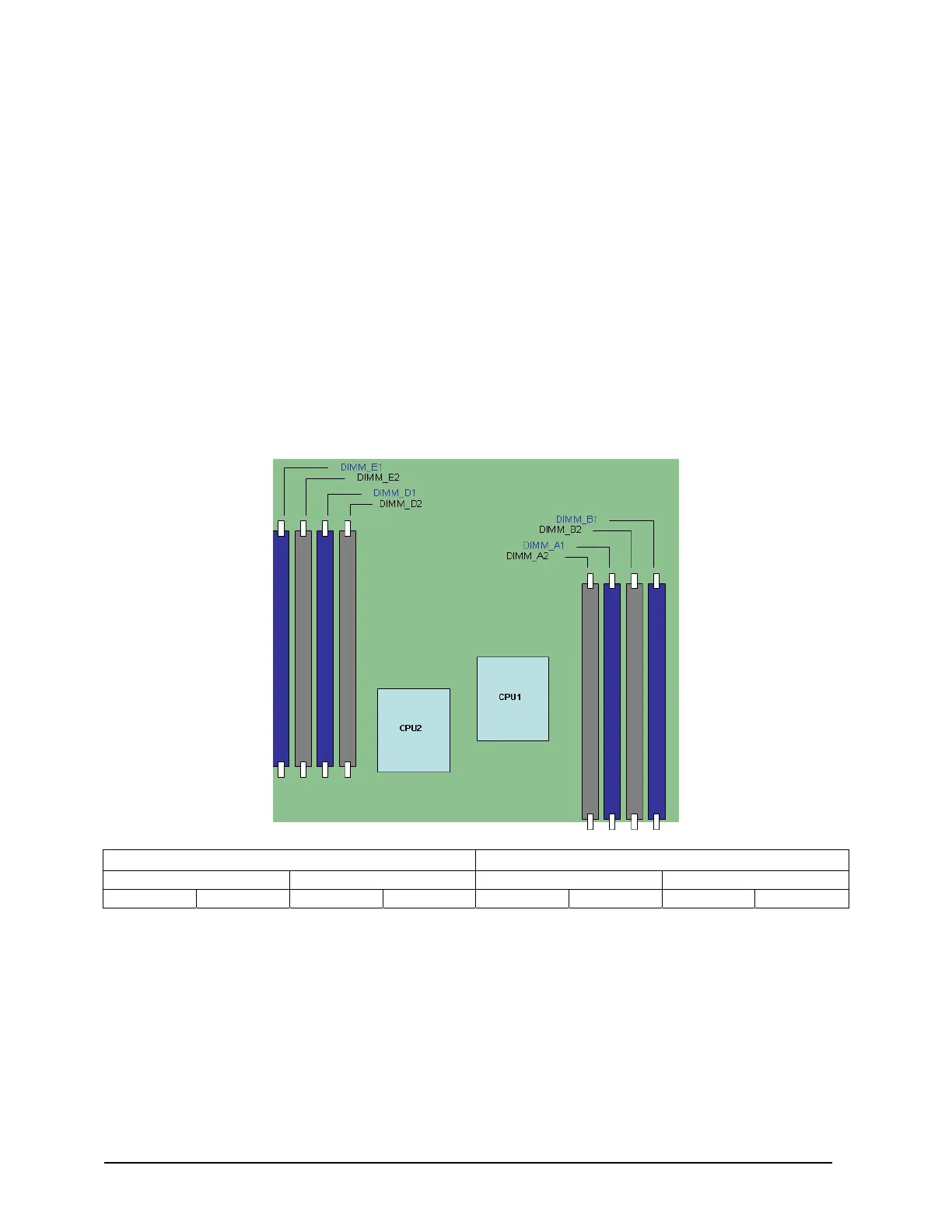

Processor Socket 1 Processor Socket 2
Channel A Channel B Channel D Channel E
A1 A2 B1 B2 D1 D2 E1 E2
Figure 15. DIMM Organization

DIMMs are organized into physical slots on DDR3 memory channels that belong to the
processor sockets.
 The memory channels for processor socket 1 are identified as channels A and B. The
memory channels for processor socket 2 are identified as channels D and E.
 Each node supports four DIMM sockets (two DIMM sockets per channel).
