Product Overvi
ew
Intel
®
Server Board S5500BC TPS
Intel order number: E42249-003
Revision 1.0
14
2.2.4
External I/O Connector Locations

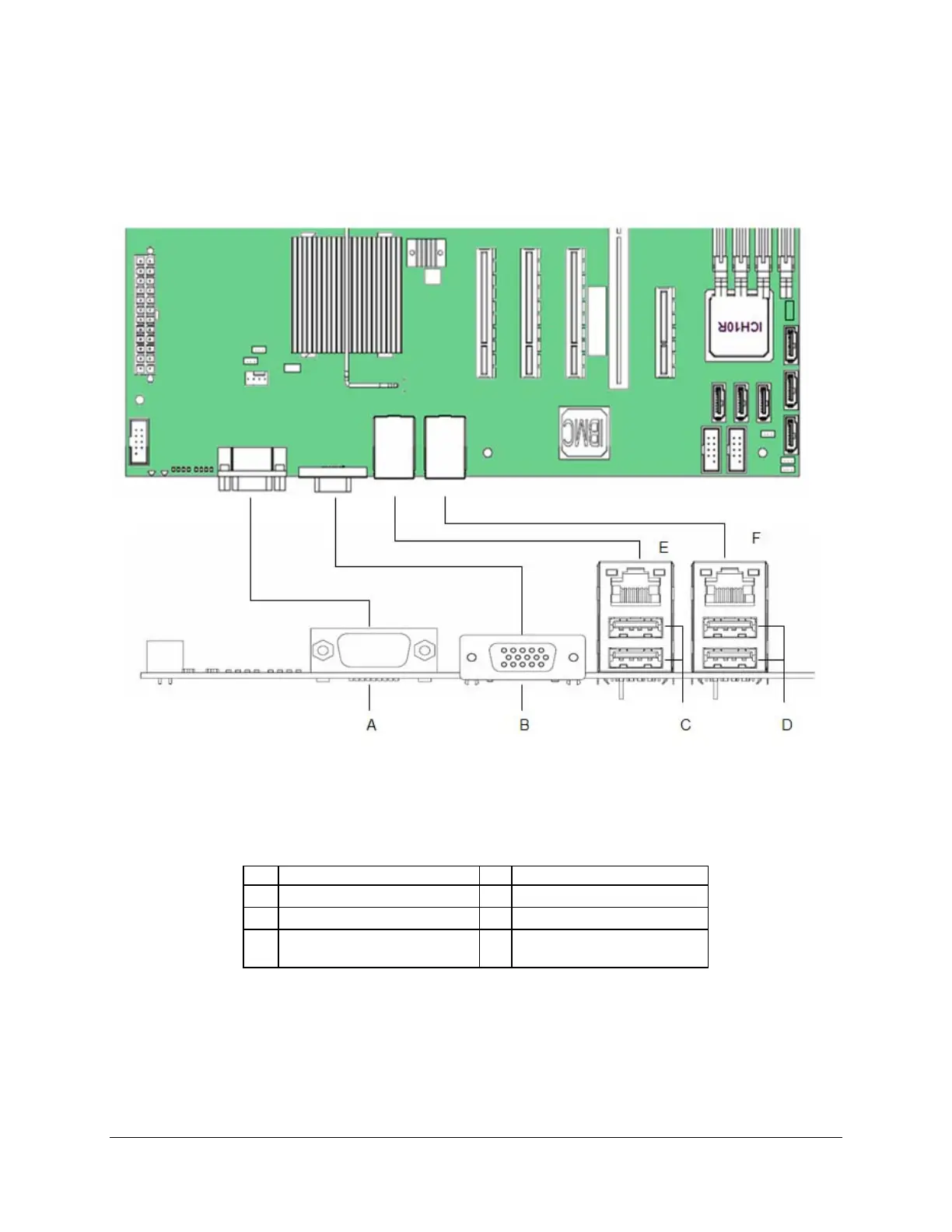

Figure 11. External I/O Layout
Table 3. External I/O Layout Reference
Description
Description
A
Serial Port A
B
Video
C
USB Port 6-7
D
USB Port 8-9
E
NIC Port 1
F
NIC Port 2
(management port)
24
26
