V110 – Marine Satellite Communication System
Installing the ACU
ACU Dimensions
48.43cm (19”)
46.5cm (18.3”)
3.18cm (1.3”)
20cm (7.9”)
43 cm(17”)
47.32 cm(18.6”)
45.32 cm(17.8”)
13cm (5.1”)
4.4cm (1.7”)
38cm (15”)

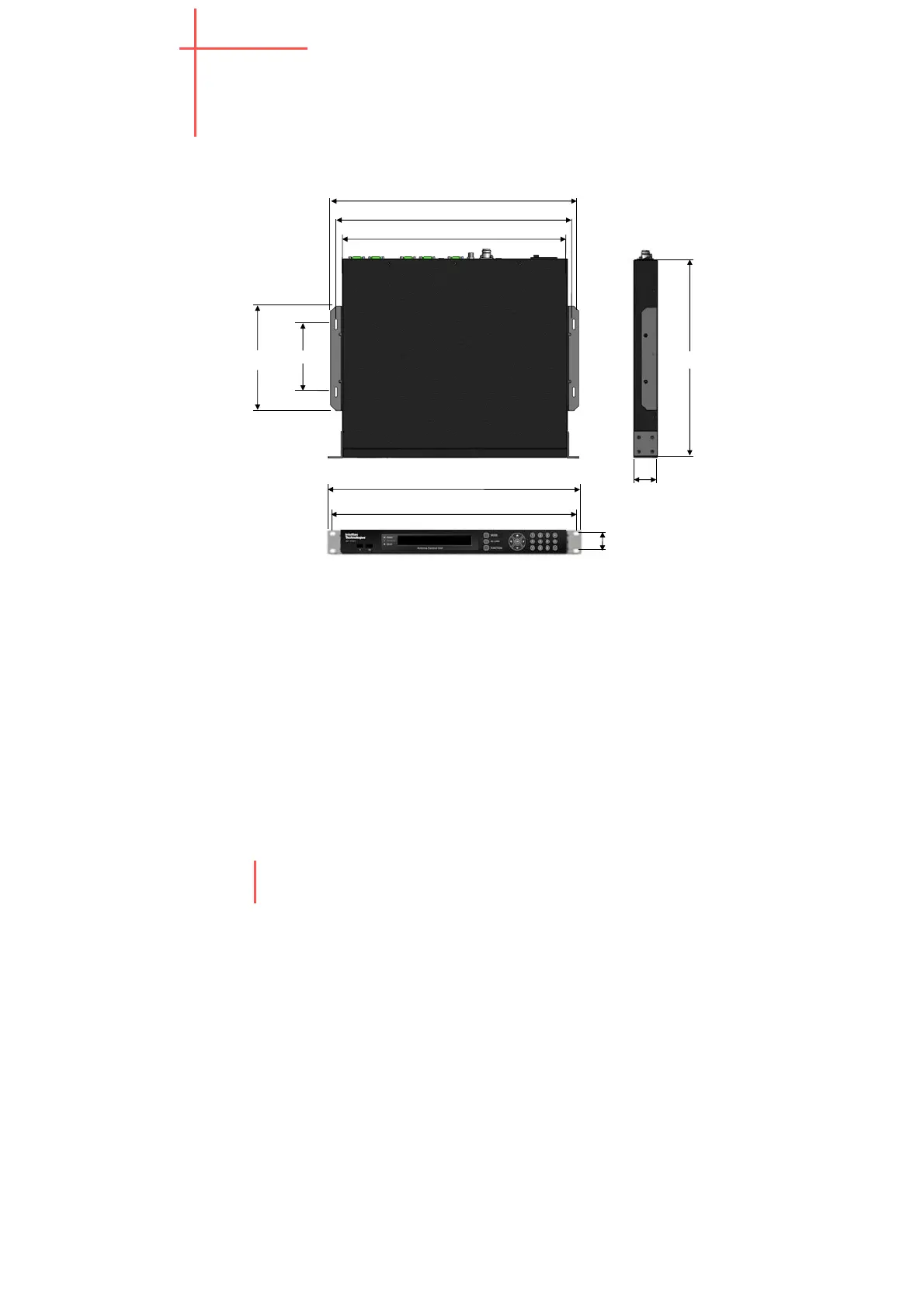

Figure 21. Dimension of ACU
Selection of ACU Installation Site
 The ACU should be installed below deck, in a location that is:
 Dry, cool, and ventilated.
 The front panel should be easy accessible to user.
