Intellian V110 User Manual

57
SAVE ?
→ YES NO
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
5. Press LEFT arrow key to move cursor to YES and press OK key to save
cu rren t settings. Or move cursor to NO and press OK key to abort an d retu rn to
the main display.
OK
M
R
F
System Settings
Set LNB Local Frequency
SETUP MODE ?
→ YES NO
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
+ANTENNA +SATELLITE
→+SYSTEM +INSTALLATION
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
◀ →+SET LOCAL +SET LOCATION ▶
+MODEM PORT +BACKUP & RESTORE
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit

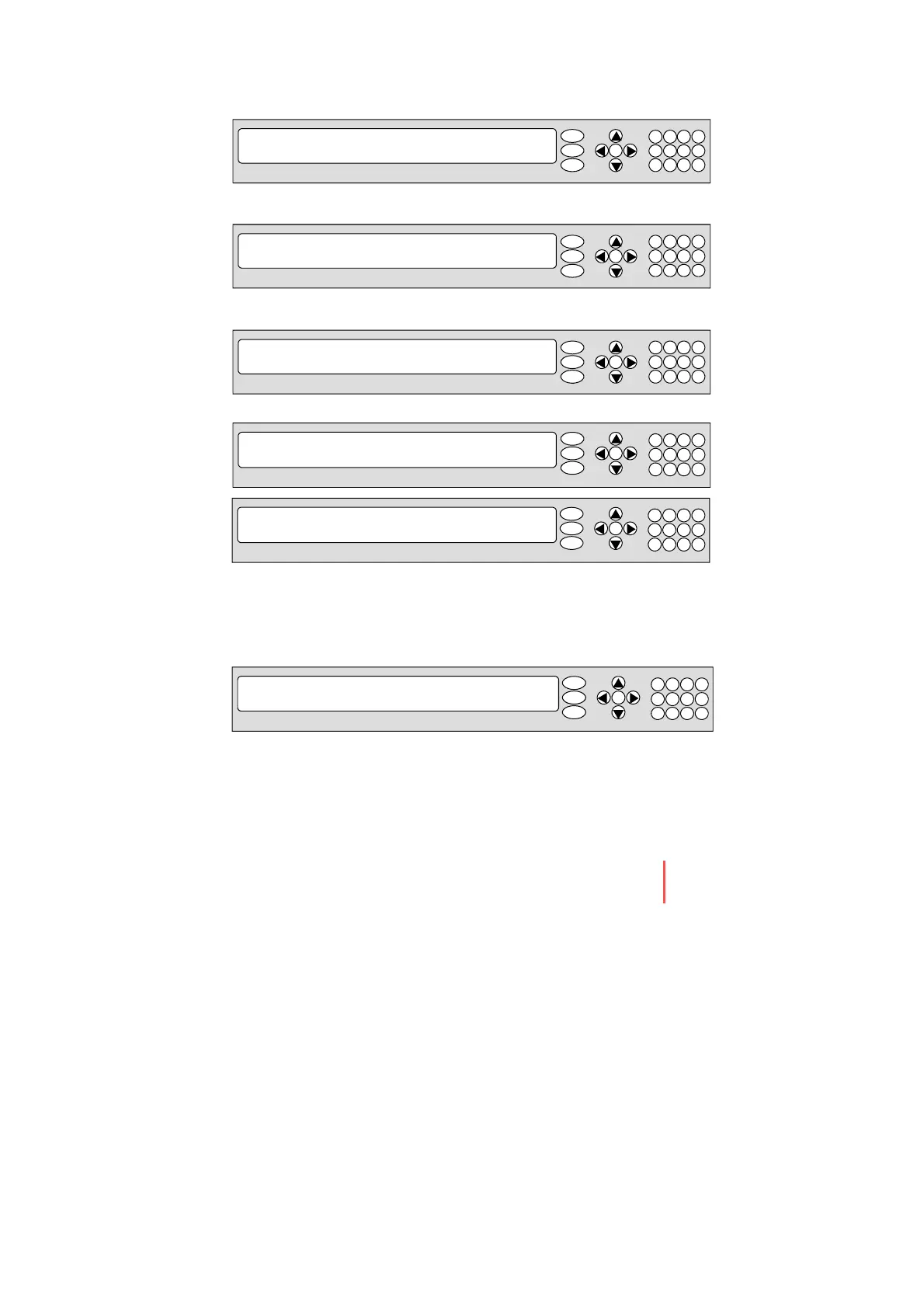

1. Press LEFT arrow key to move cursor to YES and press OK key to enter
setup mode.
2. Press DOWN arrow key to move cursor to SYSTEMand press OK key to enter
SYSTEM menu.
3. Press OK key to enter SET LOCAL menu to set the LNB local frequency.
◀ →13V + 0KHz 18V + 0KHz ▶
10000MHz 11300MHz
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
OK
M
R
F
OK
M
R
F
OK
M
R
F
OK
M
R
F
4. Set the LNB Local Frequency for each corresponded voltage power .
(13V+0KHz, 18V+0KHz, 13V+22KHz, 18V+22KHz)
Press RETURN key and press LEFT and RIGHT arrow keys to select the parameter
you wish to edit. Press OK key to edit parameter. Or press RETURN key again to return
to the main display.
13V + 22KHz 18V + 22KHz
10750MHz ▲ 09750MHz ▼
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
OK
M
R
F
Operating the ACU
