Intellian V110 User Manual

25
Installing the ACU
Intellian supplies two type of mounting methods (a)19” Rack Mount
Type and (b)Table Mount Type to mount your ACU.
19” Rack Mount Type
 The ACU should be installed using the two supplied Rack
Mounting Brackets which allow for a side 19” rack mounting
configuration.
 Using the self tapping screws supplied, attach the mounting
brackets to the sides of the ACU.
 Place the ACU in the location where it is going to be installed.
 Connect the cables to the rear of the ACU.
Table Mount Type
 The ACU should be installed using the two supplied Table
Mounting Brackets which allow for a top or bottom mounting
configuration.
 Using the self tapping screws supplied, attach the mounting
brackets to the sides of the ACU.
 Place the ACU in the location where it is going to be installed.
 Using a pencil to mark the 4 hole positions (2 each side), and
use the appropriate drill bit to drill them.
 Connect the cables to the rear of the ACU.

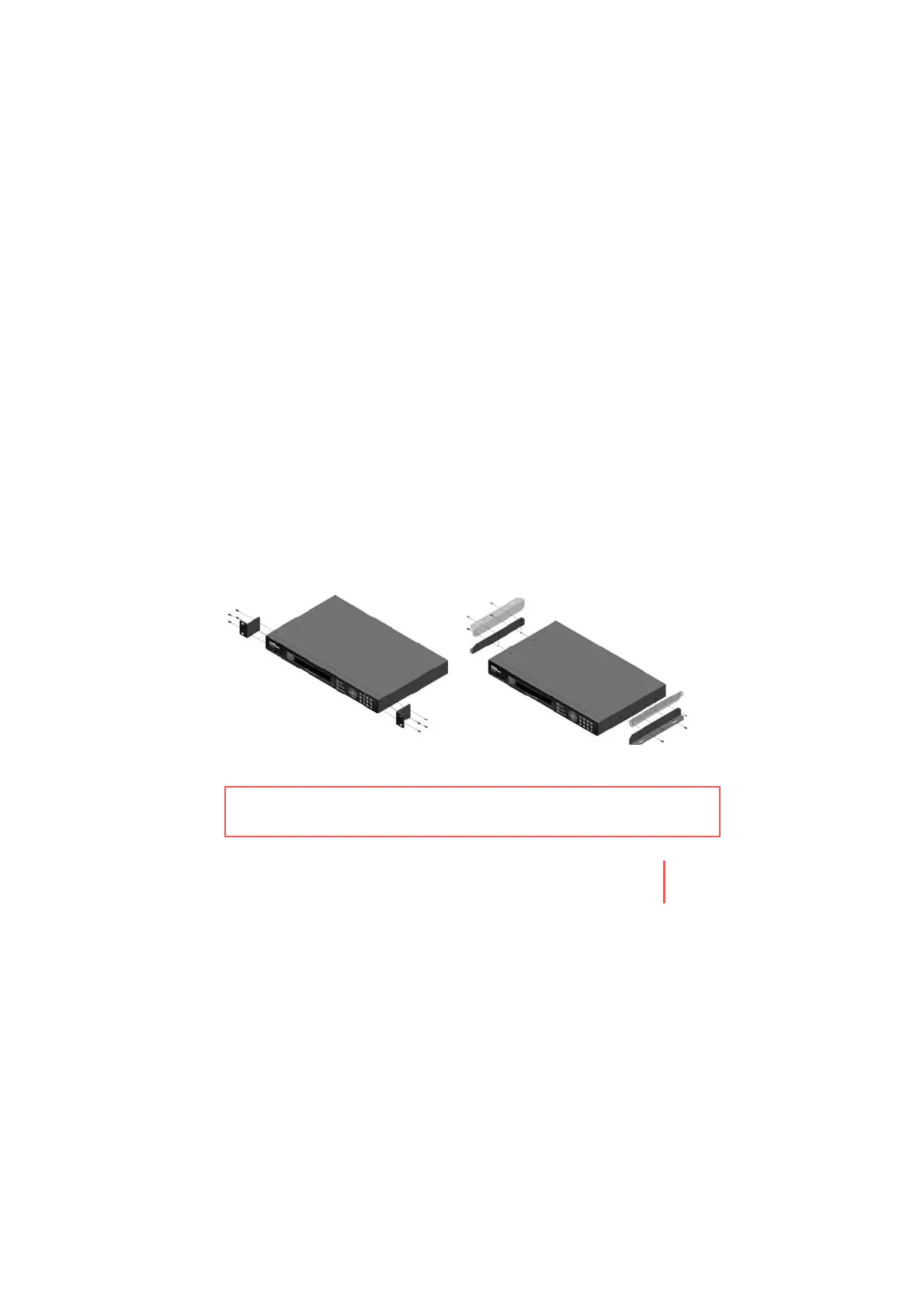

Figure 22. 19 inch Rack Mount Type Figure 23. Table Mount Type
WARNING: Ensure that the installed cables are longer enough to take out
the ACU from the rack.
Installing the ACU
