Intellian V110 User Manual

27

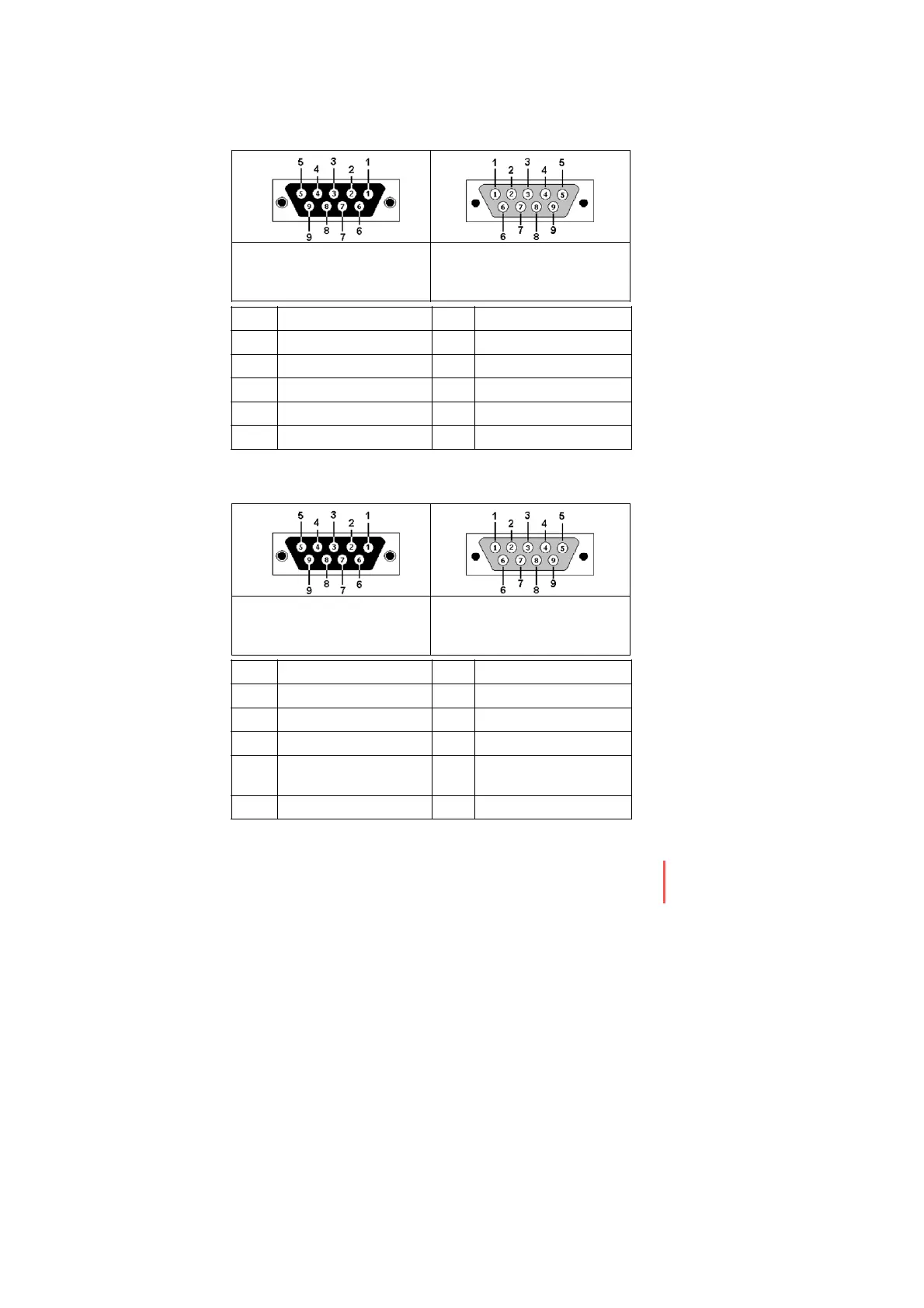

ACU Connector Guide
Synchro/SBS Connector
ACU Synchro/ SBS Port
D-Sub 9pin Female
D-Sub 9pin Male connector
Supplied Component (Ref. page 7)
Pin Signal Pin Signal
1 SBS_COM 6 SBS_C
2 SBS_B 7 SBS_A
3 SYNCHRO_R2 8 SYNCHRO_R1
4 SYNCHRO_R3 9 SYNCHRO_S2
5SYNCHRO_S1
Control Connector
ACU Consol Port
D-Sub 9pin Female
D-Sub 9pin Male connector
Supplied Component (Ref. page 7)
Pin Signal Pin Signal
1GND6GPSOUT-
2 GPS OUT + 7 MODEM_SIGNAL_IN
3 MODEM_LOCK 8 MODEM _CTRL2
4
MODEM_CTRL1
(TX MUTE)
9GPS IN-
5GPSIN +
Installing the ACU
