122
Appendix B Dimension Drawings
Dimension drawings of the Goodrive20 are shown below. The dimensions are given in millimeters and
inches.

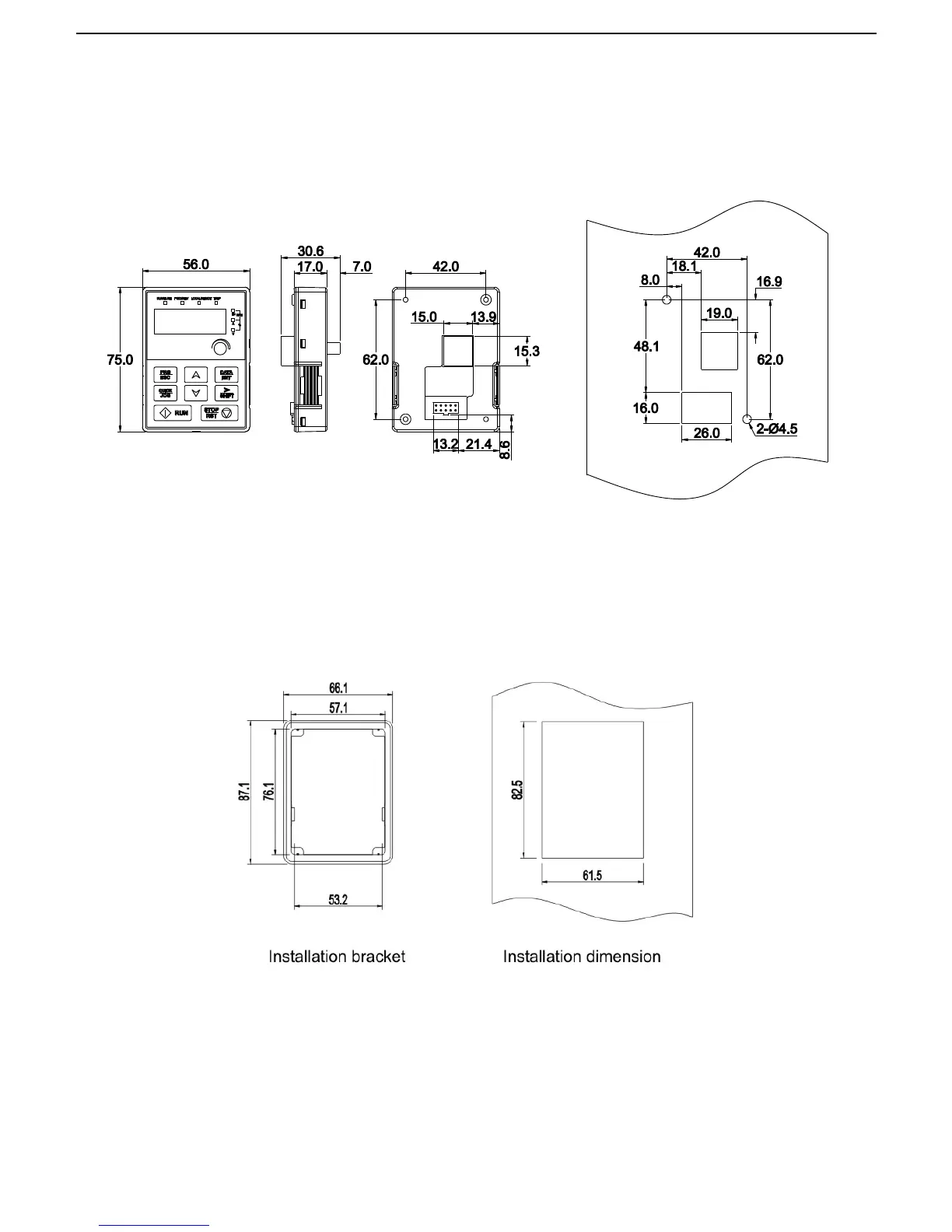

B.1 External keypad structure
Overall drawing Hole drawing
Note: The external keypad is optional for the inverters (1PH 220V/3PH 380V ≤2.2kW and 3PH 220V
≤0.75kW); the standard keypd of inverters (3PH 380V ≥4kW and 3PH 220V ≥1.5kW) can be used as the
external keypad.
The keypad can be installed on the bracket if it is external.
To Next Page
