Terminal Function
L, N
Single phase AC input terminals which are generally connected with
the power supply.
R, S, T
Three phase AC input terminals which are generally connected with
the power supply.
PB, (+) External dynamic braking resistor terminal
(+), (-) Input terminal of the DBU or DC bus
U, V, W
Three phase AC input terminals which are generally connected with
the motor.
PE Protective grounding terminal
Note:
Do not use asymmetrically motor cables. If there is a symmetrically grounding conductor in
the motor cable in addition to the conductive shield, connect the grounding conductor to the
grounding terminal at the inverter and motor ends.
Route the motor cable, input power cable and control cables separately.
3.2.3 Wiring of terminals in main circuit
1. Fasten the grounding conductor of the input power cable with the grounding terminal of the inverter (PE)
by 360 degree grounding technique. Connect the phase conductors to L1, L2 and L3 terminals and fasten.
2. Strip the motor cable and connect the shield to the grounding terminal of the inverter by 360 degree
grounding technique. Connect the phase conductors to U, V and W terminals and fasten.
3. Connect the optional brake resistor with a shielded cable to the designated position by the same
procedures in the previous step.
4. Secure the cables outside the inverter mechanically.
3.2.4 Wiring diagram of control circuit

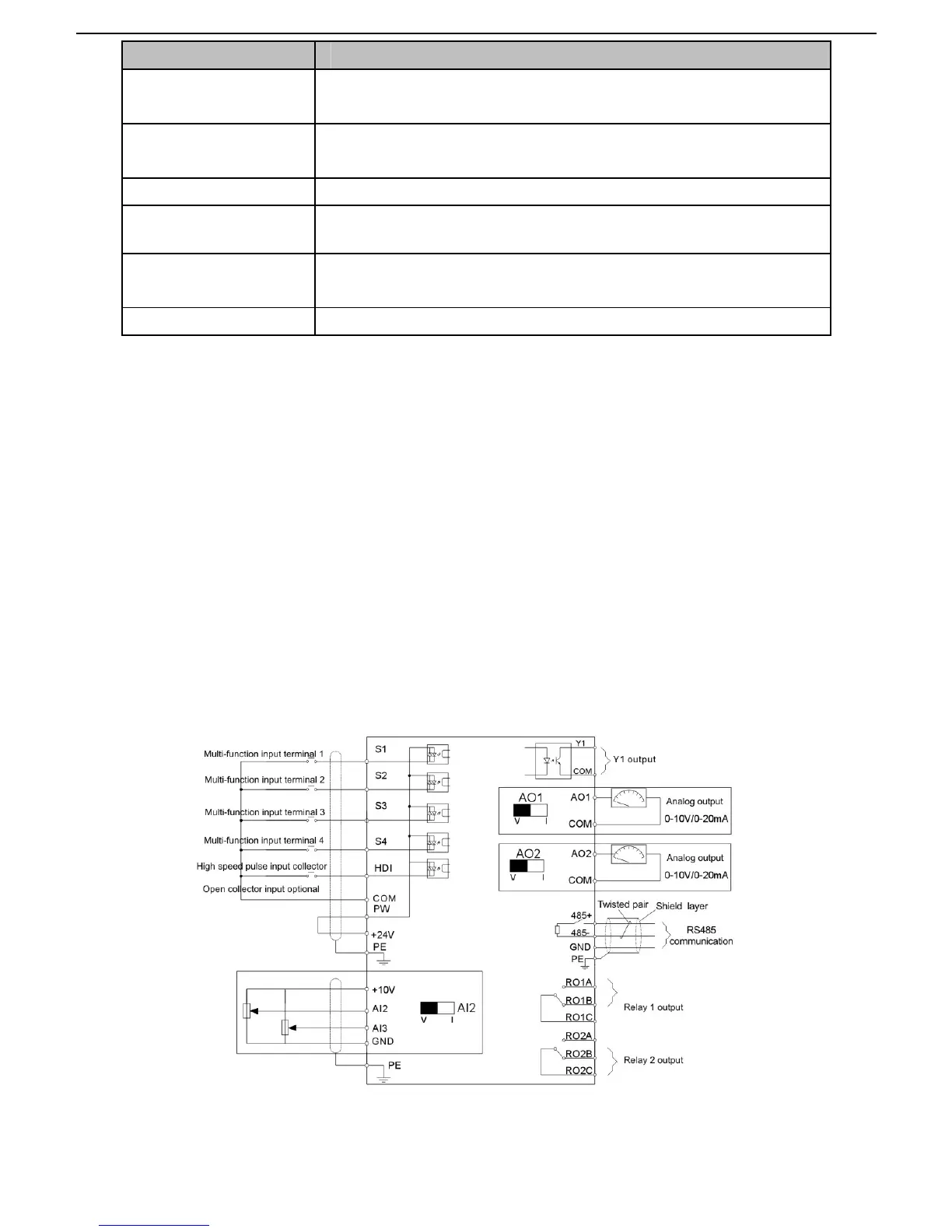

Figure 3-9 Wiring of control circuit
