Goodrive20 inverters Appendix C

133

C.6.2 C3 filter

External C3 filers are optional for Goodrive20 series inverters of 1PH 220V/3PH 380V (≤2.2kW) and 3PH

220V (≤0.75kW). The inverters of 3PH 380V (≥4kW) and 3PH 220V (≥1.5kW) have the embedded C3

filers which can be selected to connect by J10 (J10 is packed with the manual).

The input interference filter can decrease the interference of the inverter to the surrounding equipments.

Output interference filter can decrease the radio noise cause by the cables between the inverter and the

motor and the leakage current of the conducting wires.

Our company configured some filters for the convenient of the users.

Model Input filter

GD20-0R4G-S2

FLT-PS2004L-C-G

GD20-0R7G-S2

GD20-1R5G-S2

GD20-2R2G-S2

GD20-0R4G-2

FLT-P04007L-C-G

GD20-0R7G-2

GD20-0R7G-4

GD20-1R5G-4

GD20-2R2G-4

Note:

1. The input EMI meet the requirement of C3 after adding input filters.

2. Above options are external, the customer should indicate when purchasing.

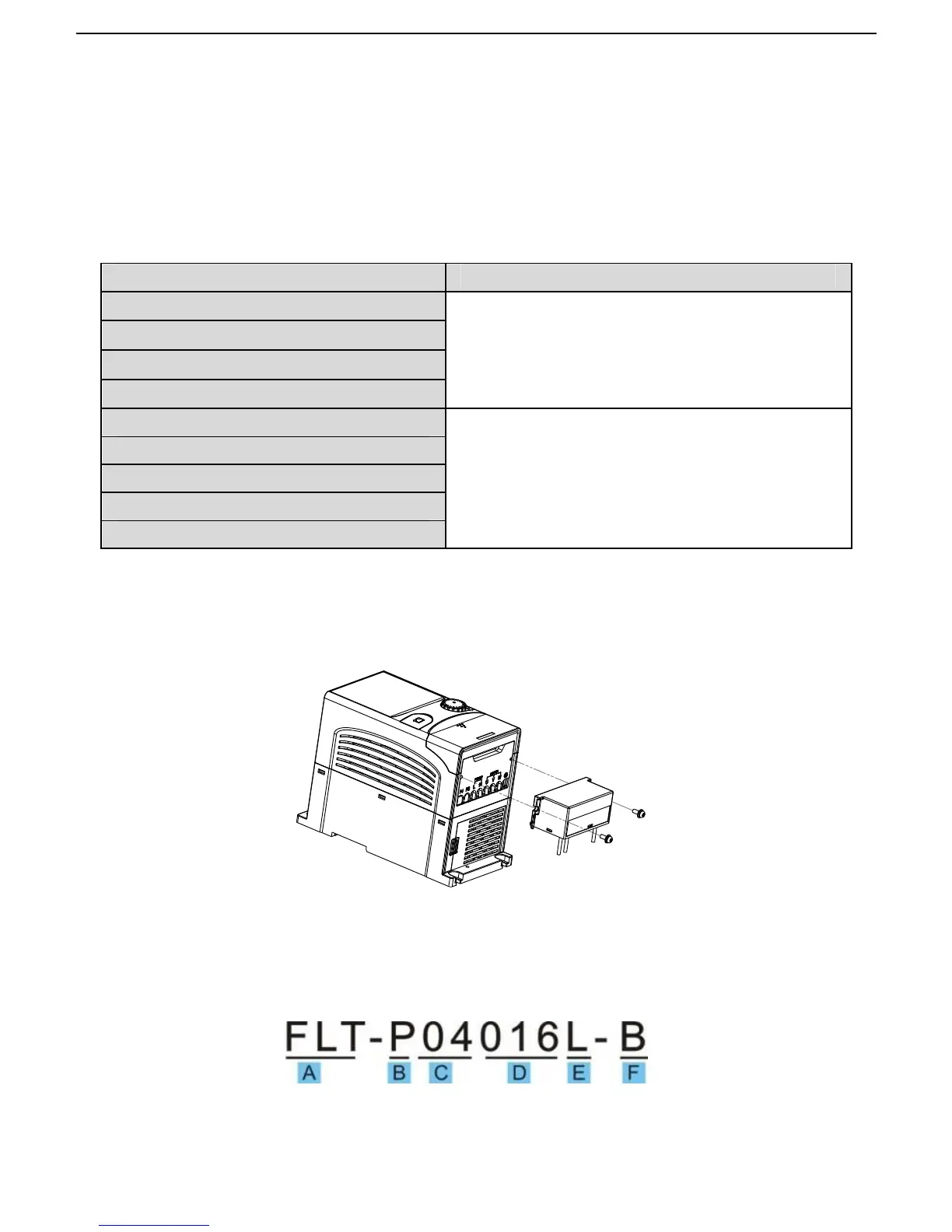

C.6.3 Installation instruction for C3 filter

The installation procedures for C3 filter are as below:

1. Connect the filter cable to the corresponding input terminal of the inverter according to the label;

2. Fix the filter onto the inverter with M3*10 screws (as shown in above picture).

C.6.4 C2 Filter type instruction
