INVT GD20-0R4G-S2 User Manual

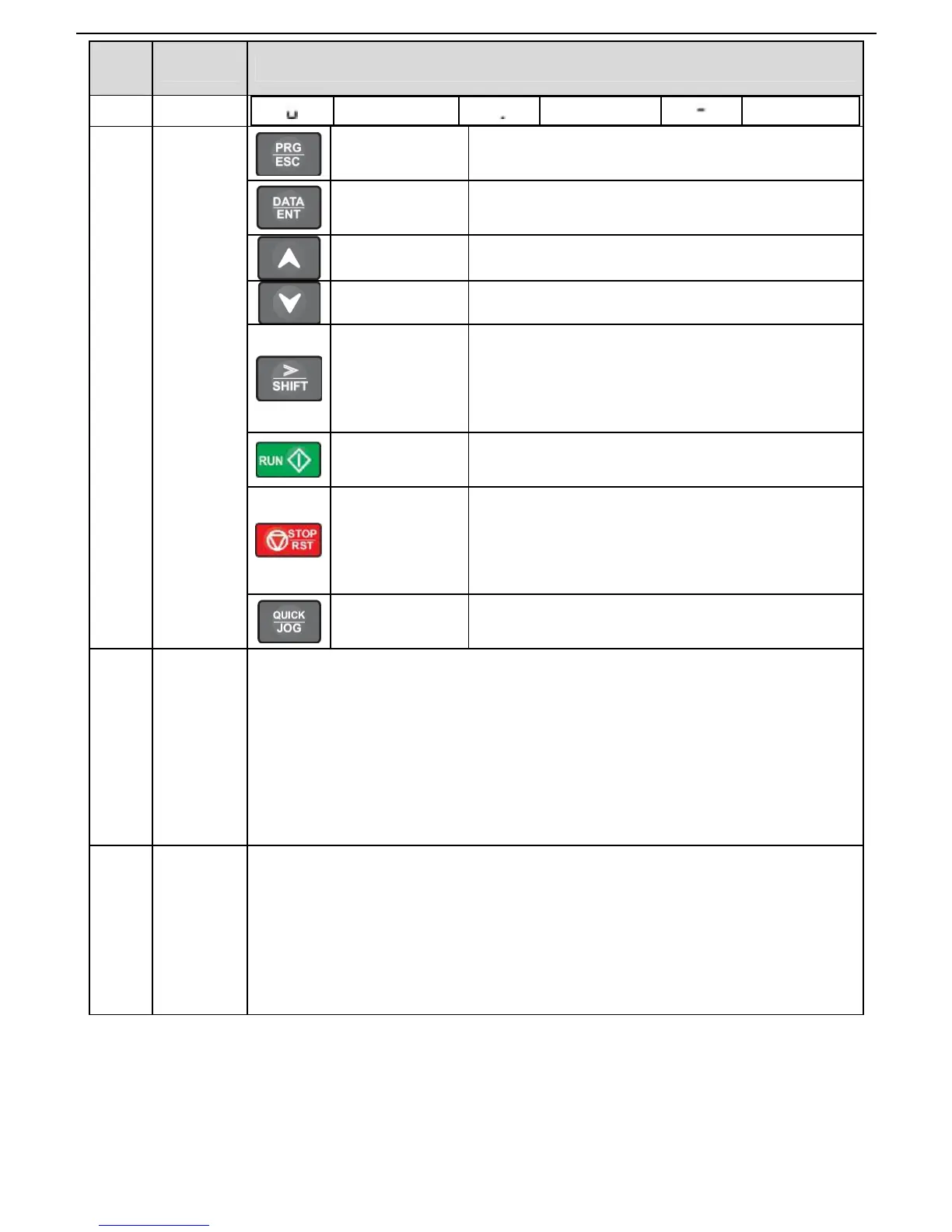

Goodrive20 inverters Keypad operation procedure
24
Serial
No.
Name Description
v . -
4 Buttons
Programming
key
Enter or escape from the first level menu and remove
the parameter quickly
Entry key
Enter the menu step-by-step
Confirm parameters
UP key Increase data or function code progressively
DOWN key Decrease data or function code progressively
Right-shift key
Move right to select the displaying parameter
circularly in stopping and running mode.
Select the parameter modifying digit during the
parameter modification
Run key
This key is used to operate on the inverter in key
operation mode
Stop/
Reset key
This key is used to stop in running state and it is
limited by function code P07.04
This key is used to reset all control modes in the fault
alarm state
Quick key
The function of this key is confirmed by function code
P07.02.
5
Analog
potentio
meter
AI1,
When the external common keypad (without the function of parameter copy ) is
valid, the difference between the local keypad AI1 and the external keypad AI1 is:
When the external keypad AI1 is set to the Min. value, the local keypad AI1 will be
valid and P17.19 will be the voltage of the local keypad AI1; otherwise, the external
keypad AI1 will be valid and P17.19 will be the voltage of the external keypad AI1.
Note: If the external keypad AI1 is frequency reference source, adjust the local
potentiometer AI1 to 0V/0mA before starting the inverter.
6
Keypad port
External keypad port. When the external keypad with the function of parameter
copying is valid, the local keypad LED is off; When the external keypad without the
function of parameter copying is valid, the local and external keypad LEDs are on.
Note: Only the external keypad which has the function of parameters copy owns the
function of parameters copy, other keypads do not have. (only for the inverters≤
2.2kW)
4.2 Keypad displaying
The keypad displaying state of Goodrive20 series inverters is divided into stopping state parameter, running
state parameter, function code parameter editing state and fault alarm state and so on.
