14
Environment Conditions
into the inverter(do not install the inverter on the flammable materials such as
wood);
keep away from direct sunlight, oil mist, steam and vibration environment.
Altitude
Below 1000m
If the sea level is above 1000m, please derate 1% for every additional 100m.
Vibration ≤ 5.8m/s
2
(0.6g)
Installation direction
The inverter should be installed on an upright position to ensure sufficient
cooling effect.
Note:
Goodrive20 series inverters should be installed in a clean and ventilated environment according
to enclosure classification.
Cooling air must be clean, free from corrosive materials and electrically conductive dust.
3.1.2 Installation direction
The inverter may be installed on the wall or in a cabinet.
The inverter needs be installed in the vertical position. Check the installation site according to the
requirements below. Refer to chapter Dimension Drawings in the appendix for frame details.
3.1.3 Installation manner
(1) Wall and rail mounting for the inverters(single phase 220V/three phase 380V, ≤2.2KW and three phase
220V, ≤0.75KW)

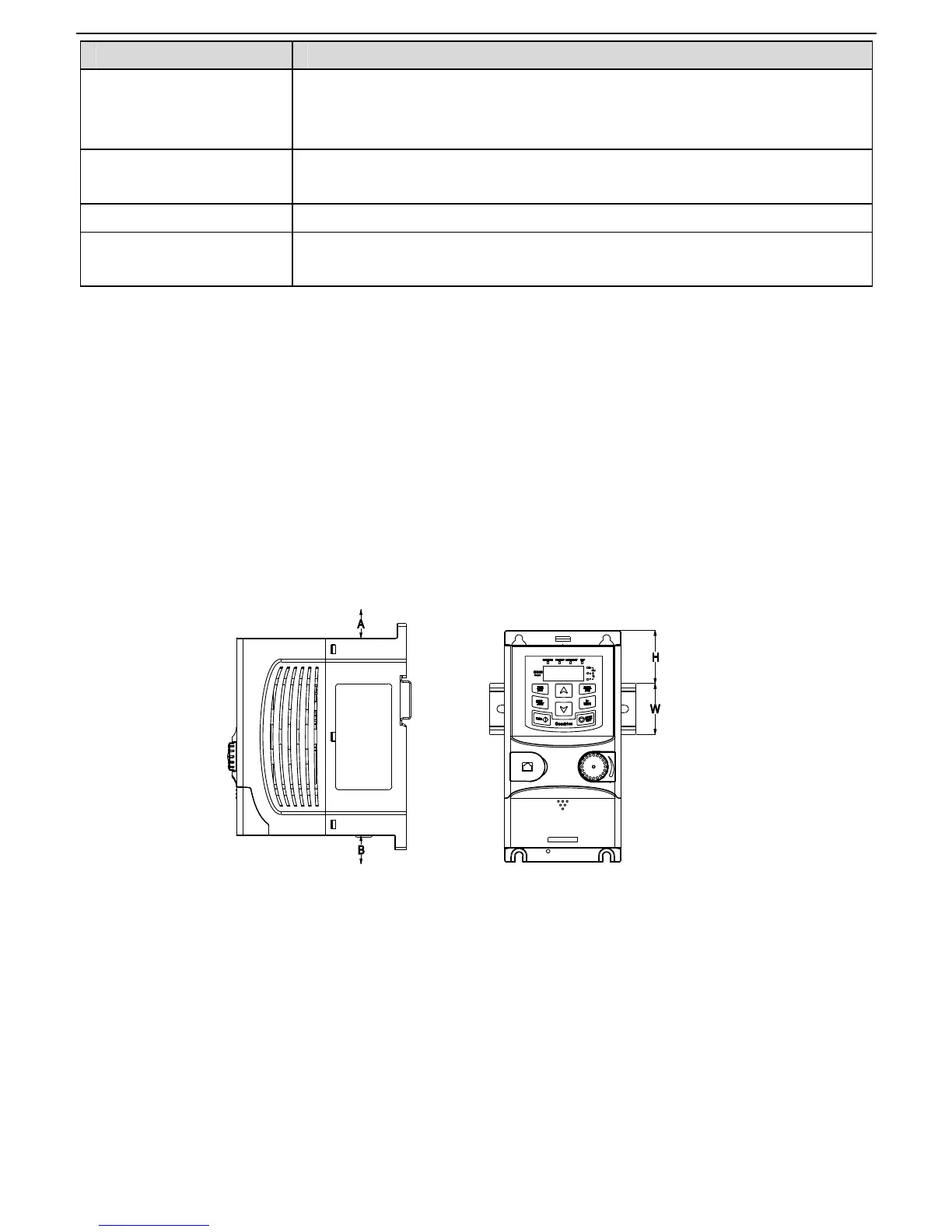

a) Wall mounting b) Rail mounting
Figure 3-1 Installation
Note: the miniumum space of A and B is 100mm if H is 36.6mm and W is 35.0mm.
(2) Wall and flange mounting for the inverters(three phase 380V, ≥4KW and three phase 220V, ≥1.5KW)
