LBK System Series| Instruction manual v1.2 SET 2021 |SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
5. Sensor position

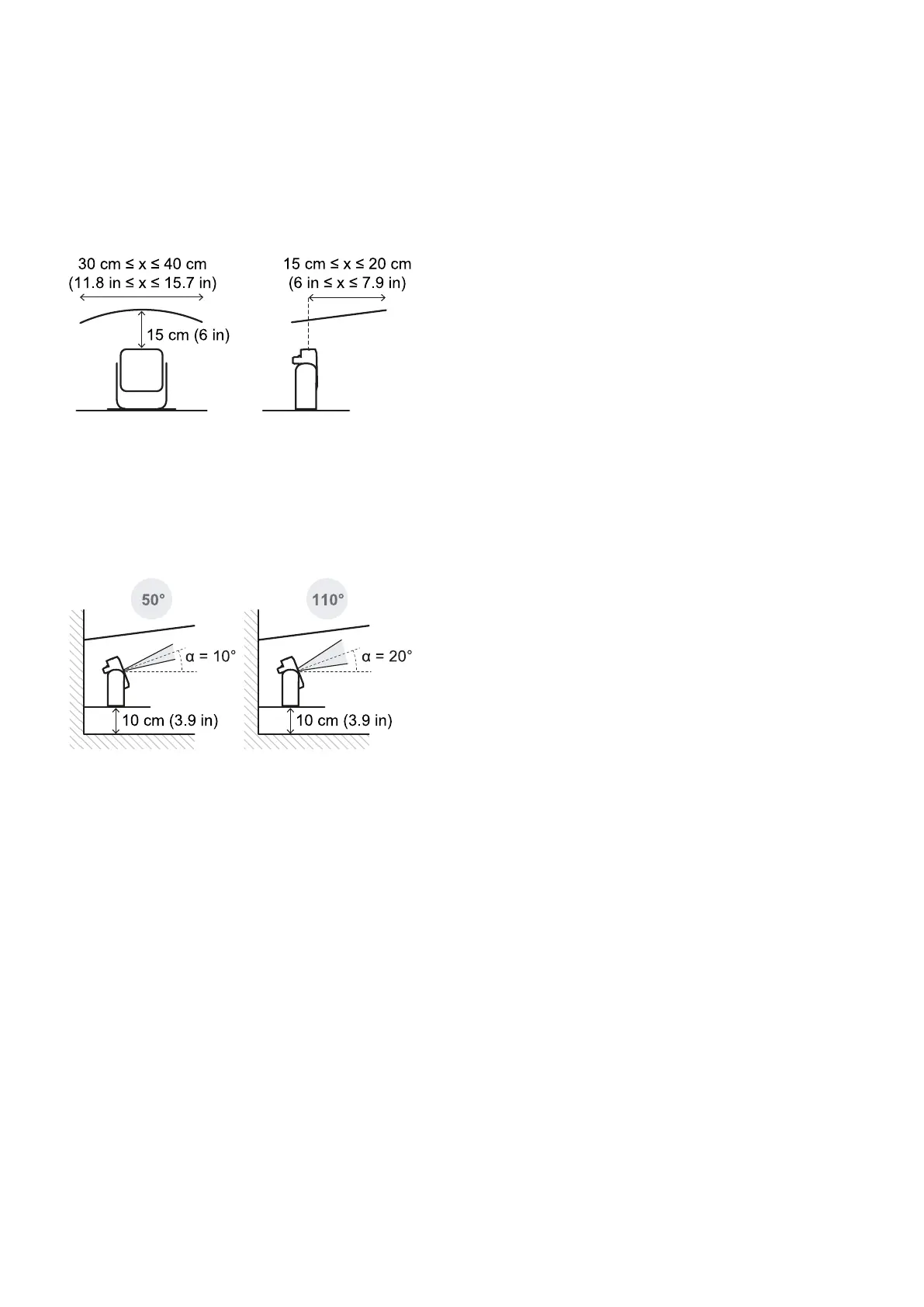

5.6.2 Recommendations for covering the sensor
Below are some recommendations for creating and installing a sensor cover:
l height from sensor: 15 cm (6 in)
l width: minimum 30 cm (11.8 in), maximum 40 cm (15.7 in)
l protrusion from the sensor: minimum 15 cm (6 in), maximum 20 cm (7.9 in)
l water outflow: at the sides or behind but not in front of the sensor (the cover should be arched and/or tilted
backwards)
5.6.3 Recommendations for positioning the sensor
Below are some recommendations for defining the sensor position:
l height above the ground: minimum 10 cm (3.9 in)
l suggested inclination: 10° for 50° field of view and 20° for 110° field of view
Before installing a sensor facing downwards, make sure there are neither liquids nor reflective materials on the
floor.
Note: during the restart prevention function or if the sensor has a 110° field of view, undesired alarms may occur
due to the higher sensitivity of the system.
5.6.4 Position not exposed to precipitation
If the installation position of the sensor is not exposed to precipitation, no special precautions are required.
