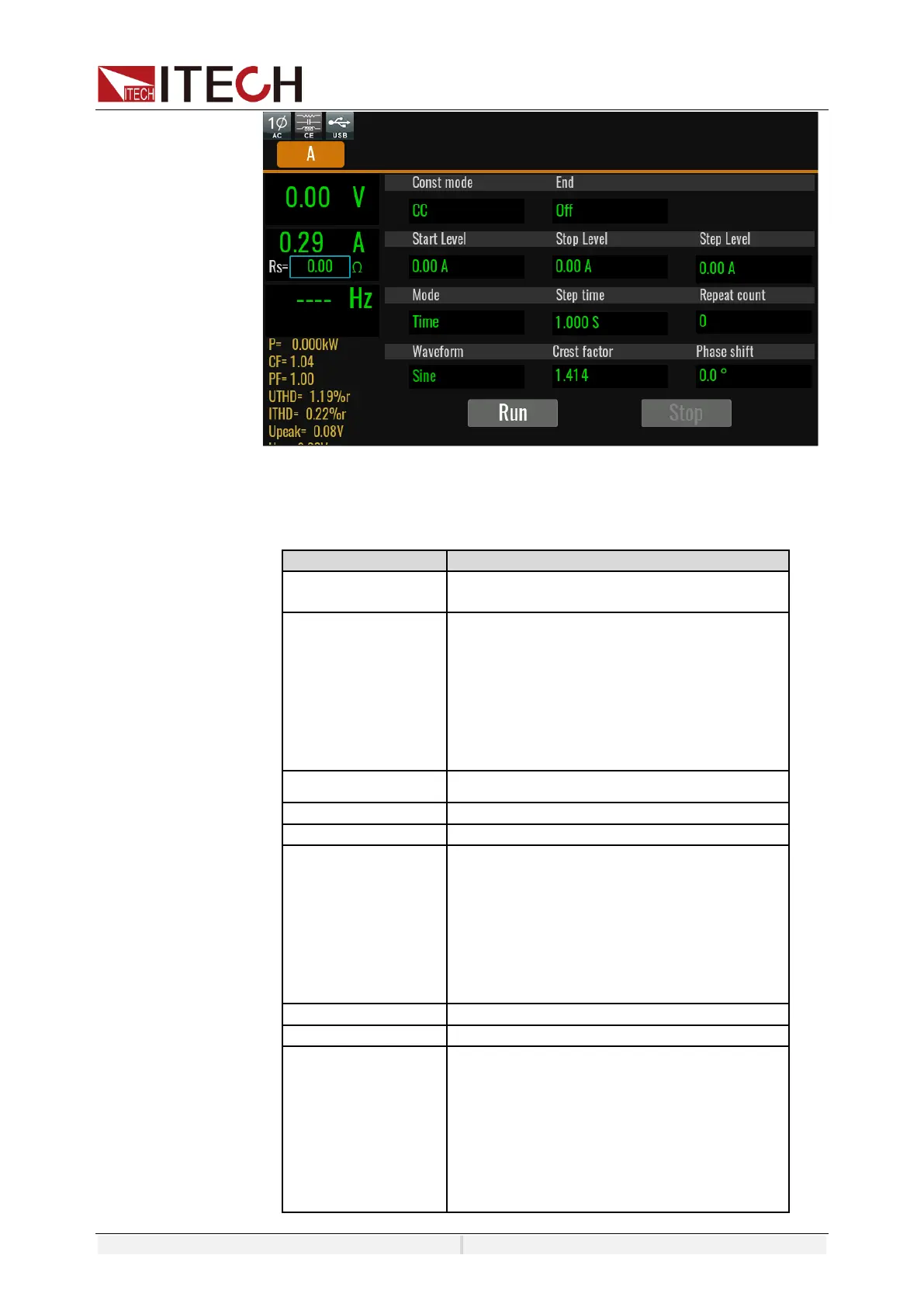

2. Set the voltage and frequency parameters in the sweep interface.

Parameters in the sweep interface are described as follows:

Parameter

Explain

Const mode

Sweep mode

CC and CR

End

Set the running state after the sweep

execution is finished:

• off: Directly off the input after the

execution is finished;

• Last: Keep the last waveform unchanged

after the execution is finished.

Normal: return to normal mode after the

sweep execution is finished.

Start Level

Set the starting value.

Stop Level

Set the ending value.

Step Level

Set the step value.

Mode

Set the sweep mode.

Time: Time Sweep Mode

Trig: Trigger mode

Time-back-forth: Step switching according

to time and scanning back and forth.

Trigger-back-forth: Step switching

according to trigger and scanning back and

forth.

Step time

Set the step time.

Repeat count

Waveform

Select sweep waveform

Sine

Square

Sawtooth

Triangle

Trapezoid
