4 CONTROLS
en-46

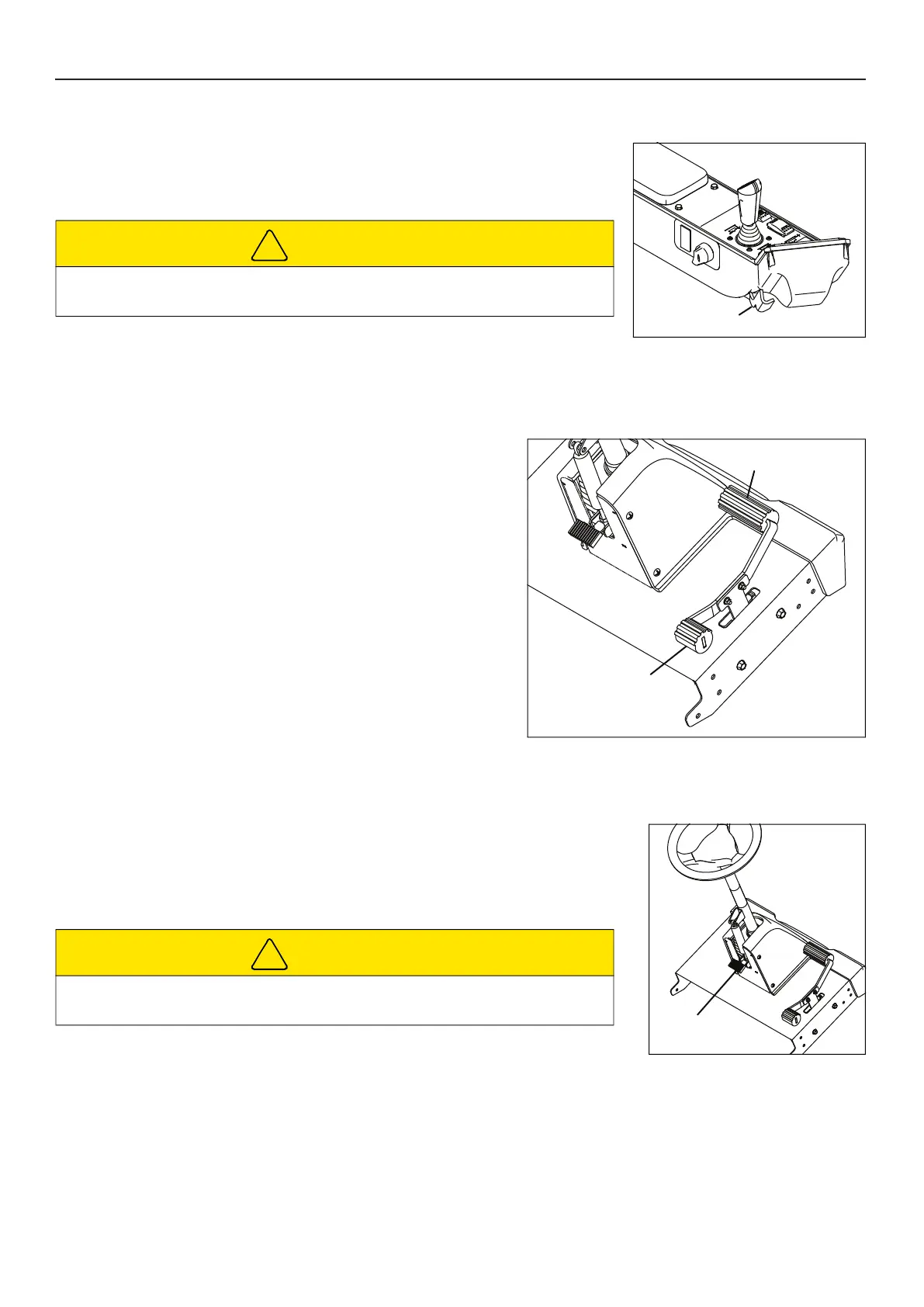

4.3 ARMREST ADJUSTER _____________________________________________________
The armrest adjuster is found on the right side under the Armrest.
• Lift up on the adjuster lever and slide the armrest in the forward or
rearward direction. Release the adjuster lever to set the adjustment.
See Section 6.4 for armrest height adjustment.
4.4 TRACTION PEDAL_________________________________________________________
The traction pedal is found on the right side of the footplate.
• Carefully press the top (A) of the foot pedal to reach the
forward speed that you need. Maximum forward transport
and mow speeds are limited by the mower controller settings
• To stop - Carefully return the foot pedal to the Neutral
position.
• To move in the reverse direction press the bottom (B) of
the foot pedal. Maximum reverse speed is limited by the
mower controller settings
4.5 STEERING TILT CONTROL__________________________________________________
While you hold the steering wheel, press the small foot pedal (A) at the base of the
steering column.
Tilt the column backward or forward to the correct position. Release the small foot
pedal to lock the steering column in position.
CAUTION
To prevent injury or property damage, do not adjust the armrest position while
the mower is in motion.
CAUTION
To prevent injury or property damage, do not adjust the steering tilt control
position while the mower is in motion.
!
!
