CONTROLS 4
en-47

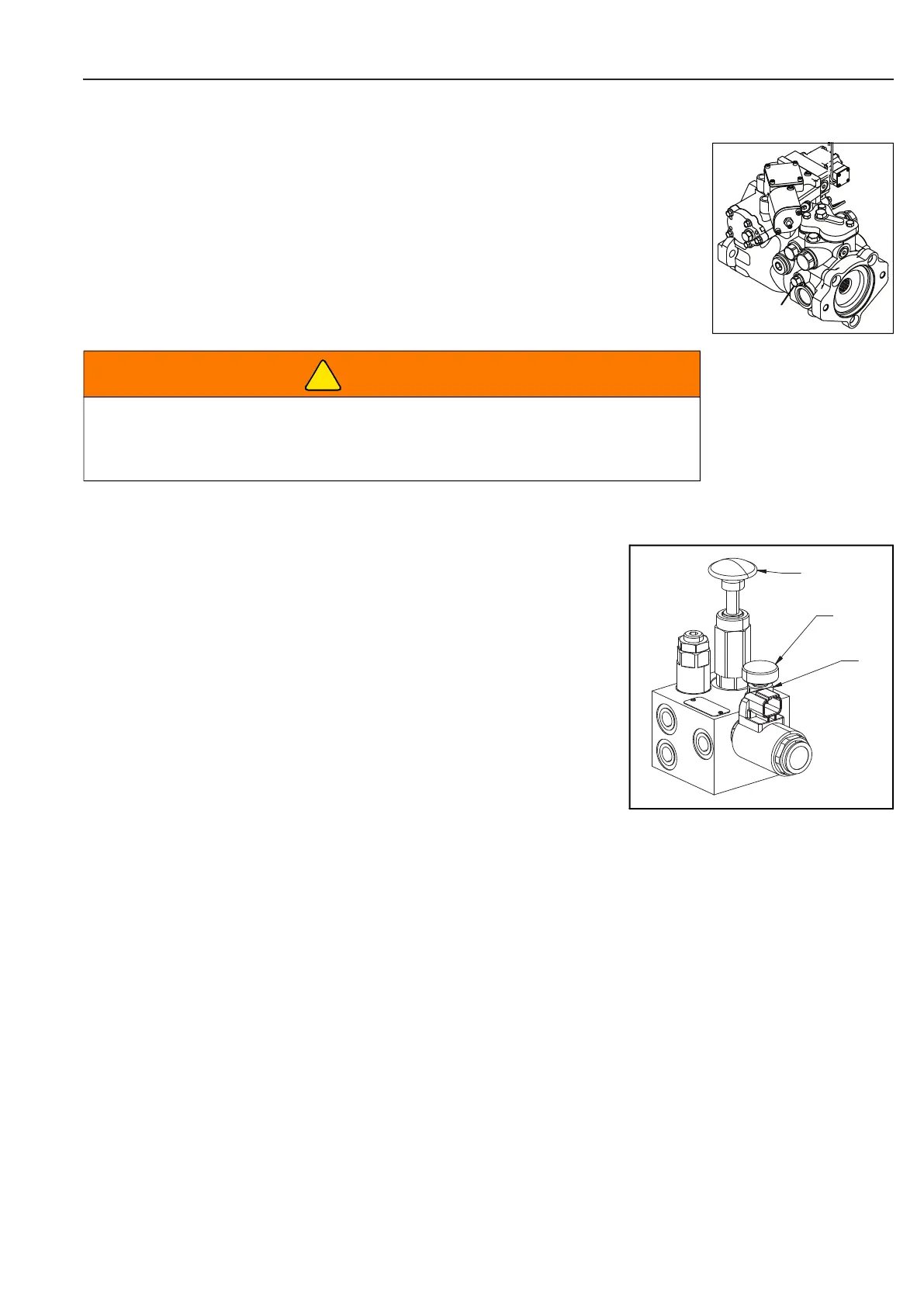

4.6 TOW VALVE ______________________________________________________________
The tow valve is situated on the right side of the transmission pump, under the seat
assembly. To access the tow valve, remove the seat retaining hardware and carefully tilt
the seat toward the right side of the mower
1. To push the machine, disengage the parking brake, See Section 4.6
2. Turn screw (A) located on the right side of the transmission pump three complete
turns counterclockwise. Set the steering wheel so that the rear wheels are pointing
straight ahead.
3. After pushing the machine, reapply the parking brake. See Section 4.6
4. Rotate screw (A) on the pump three complete turns clockwise to return the pump to
normal operation.
4.7 PARKING BRAKE RELEASE VALVE __________________________________________
The Park Brake Release Valve is situated under the operator platform, on the
right hand chassis rail. It is used to release the parking brake when the engine
is not running
To release the Parking Brake,
• Unscrew Lock wheel (B) by rotating counter-clockwise.
• Rotate Hand wheel (A) clockwise until resistance is felt.
• Using the Hand pump (C), create sufficient pressure to release the brakes
(50 to 60 strokes should give 90 seconds of brake release).
When complete rotate Hand wheel (A) counter-clockwise 3 turns and lock
using Lock wheel (B).
WARNING
THE FREE WHEEL FACILITY IS FOR RECOVERY PURPOSES ONLY.
Do not tow the machine for more than a few meters, or allow the machine to free wheel
down slopes even when unloading down ramps.
!
