6.9 HEIGHT OF CUT __________________________________________________________

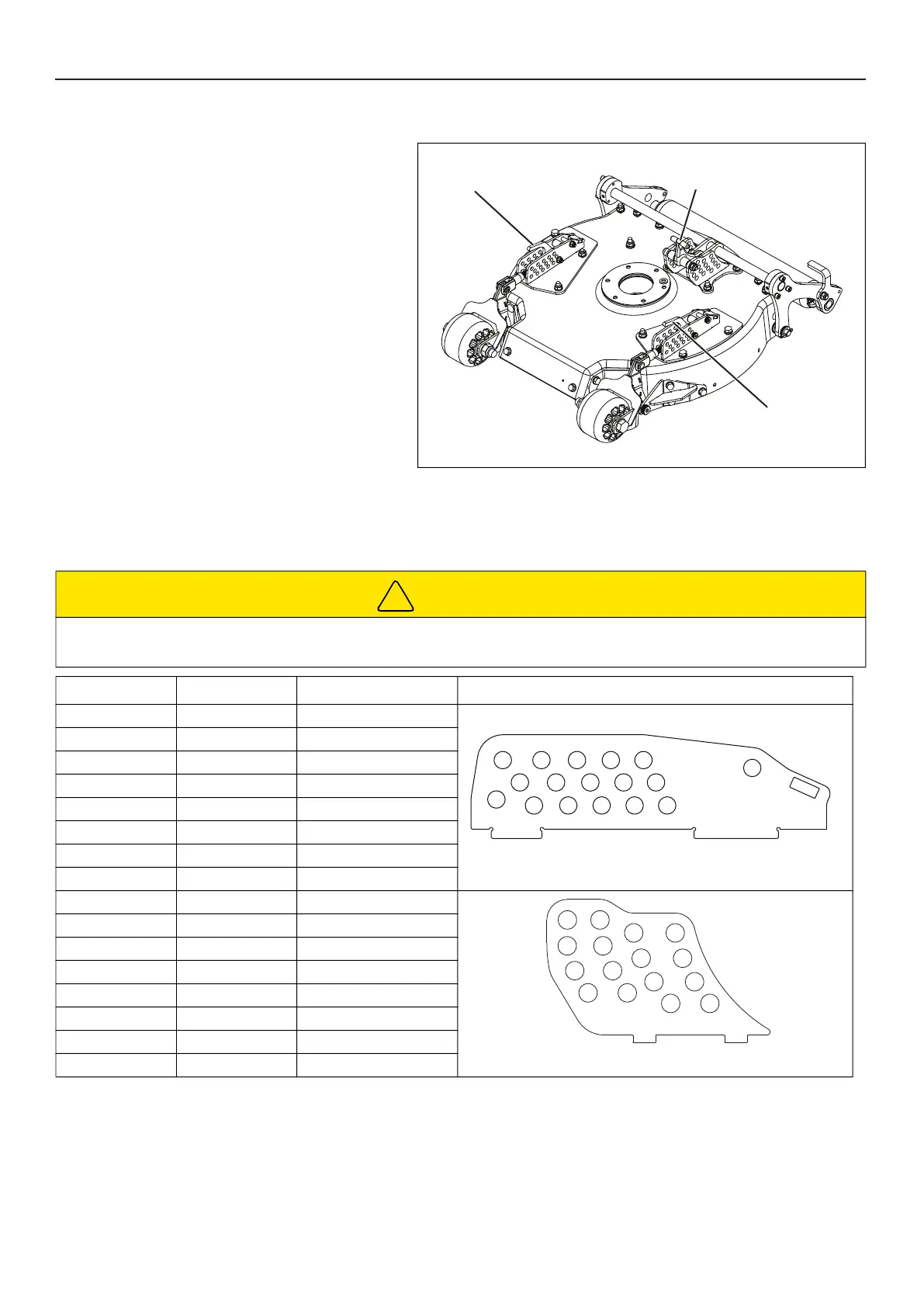

The height of cut is determined by the position of
the blades in relation to the rear roller and front
wheels. Changes to this height are made at two
points on each implement and can be done in any
order.
To adjust the height of cut:
1. Start the engine and lift the cutting
implements until the rollers are approximately
6 inches (15.2 cm) off the ground. Stop the
engine and remove the key.
2. Support the cutting implement housing.
3. Remove lock nut, washer and hex socket cap
screws from front (A) and rear (B) adjustment
handles.
4. Using the chart below or decals on the
implement, determine the correct holes for
the desired height of cut.
NOTE: The HOC brackets shown in the chart are viewed from the left side of the cutting implement.
5. Move the handle to new position and assemble handle hardware in the correct set of holes. The front wheels and
rear roller will pivot as the height of cut handles are moved.
CAUTION
To prevent injury, when adjusting the height of cut, use caution to prevent your fingers being pinched between the
moving and fixed parts of the cutting implement.
HOC Inch HOC mm HOC Bracket Hole HOC Bracket
3/4 19 1
Front HOC Bracket
1 25 2
1-1/4 32 3
1-1/2 38 4
1-3/4 44 5
2 51 6
2-1/4 57 7
2-1/2 64 8
2-3/4 70 9
Rear HOC Bracket
3 76 10
3-1/4 83 11
3-1/2 89 12
3-3/4 95 13
4 102 14
4-1/4 108 15
4-1/2 114 16
B
A
A
!
16
15 12
11
10
9
8
7
63
2
1
5
4
14
13
2
1
3
4
5
6
7
8
9
10
11
12
13
16
15
14
