Page 23
Spa operation subject to change without notice

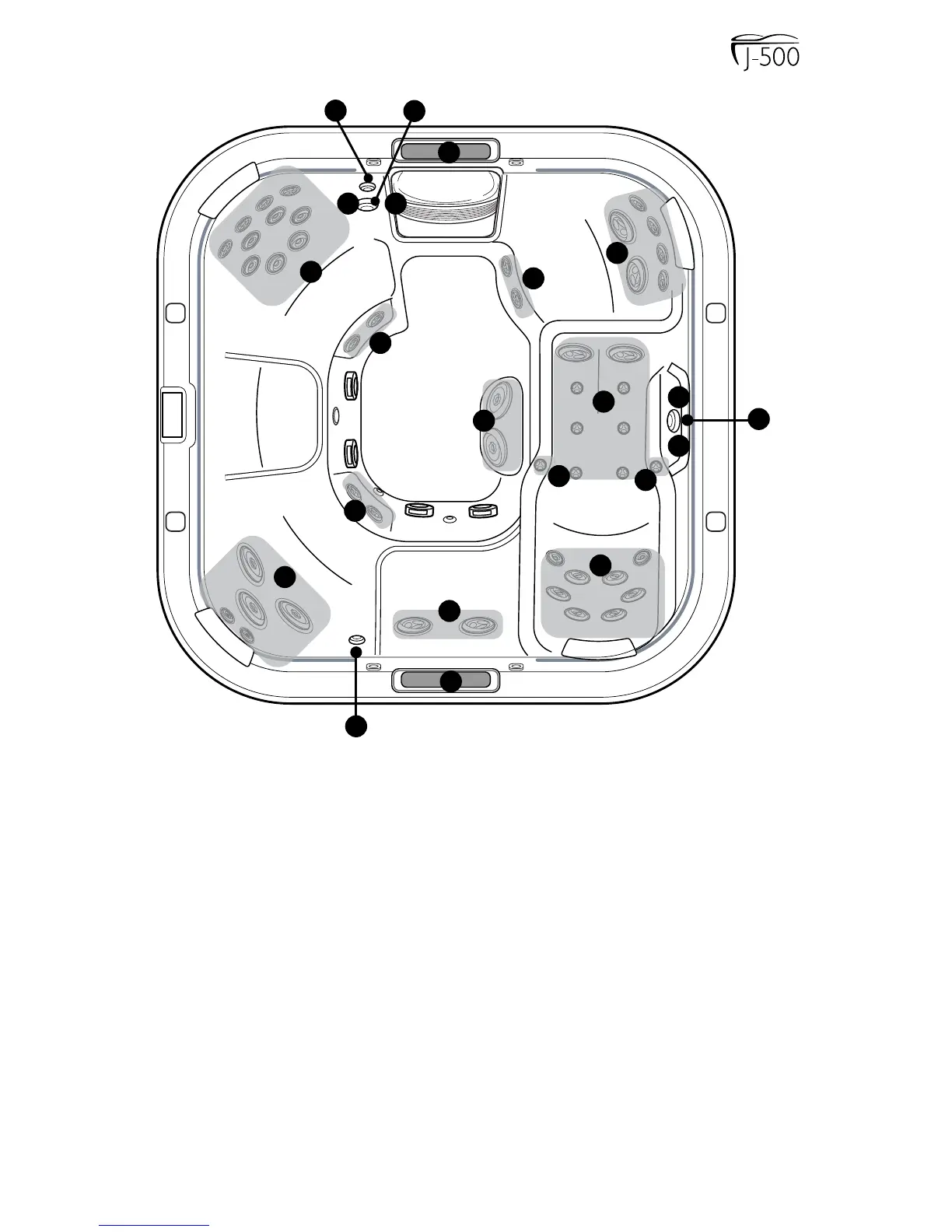

9.2 J-575 Massage/Waterfall Selector Diagram
1
4
4
a b
5
a
b
2
1a
1a
1b
1b
2a
2a
2a
2b
2b
2b
2b
3
3
Massage Selectors (1-2)
• Massage selector 1 diverts jets pump 1 output between jets groups
1a-1b.
• Massage selector 2 diverts jets pump 2 output between jets groups
2a-2b.
Waterfall Selectors (3-4)
• Waterfall selector (3) controls circulation pump output to waterfall (3).
• Waterfall selector (4) controls circulation pump output to waterfall (4).
Jets Without Massage Selector Controls (5)
• Jets (5) are always on when jets pump 1 is running.
To Next Page
