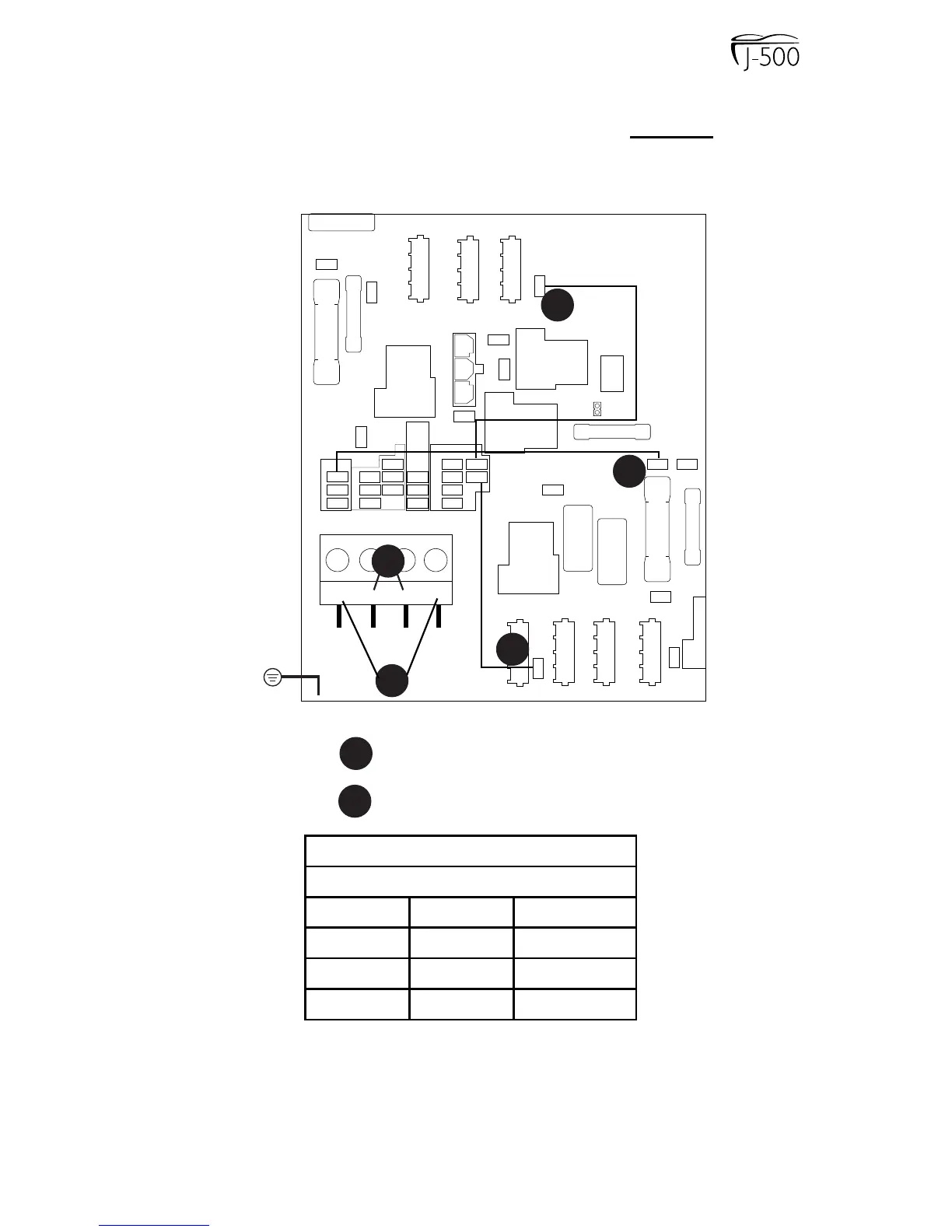

18.4 Dual Service 50Hz Connection
The factory setting for export models is for dual service breakers. The
jumper wiring is shown below. The extra White wire is not used for this
setting.
TB1
4
3
2
1
BLU
BRN
BRN
DUAL SERVICE
PARTIAL VIEW OF THE CIRCUIT BOARD
J65
J51 J3
J52
J49
J59
J44
J48
J28
J30
J37
J60
J66
J55
J54
J38
J53
J45
J46
J47
J41
J58
J42
J31
J32
J33
J40
J64
J36
J35
BLU
Heater/Transformer (Service 1)
All other components (Service 2)
1
2
A
A
B
B
3
Terminal Breaker at location:
GRN
JUMPER WIRING
Two Phase Connection Wiring
Wire From To
1 J33 J51
2 J59 J38
3 J37 J53
To Next Page
