Page 76
18.5 Single Service 50Hz Connection

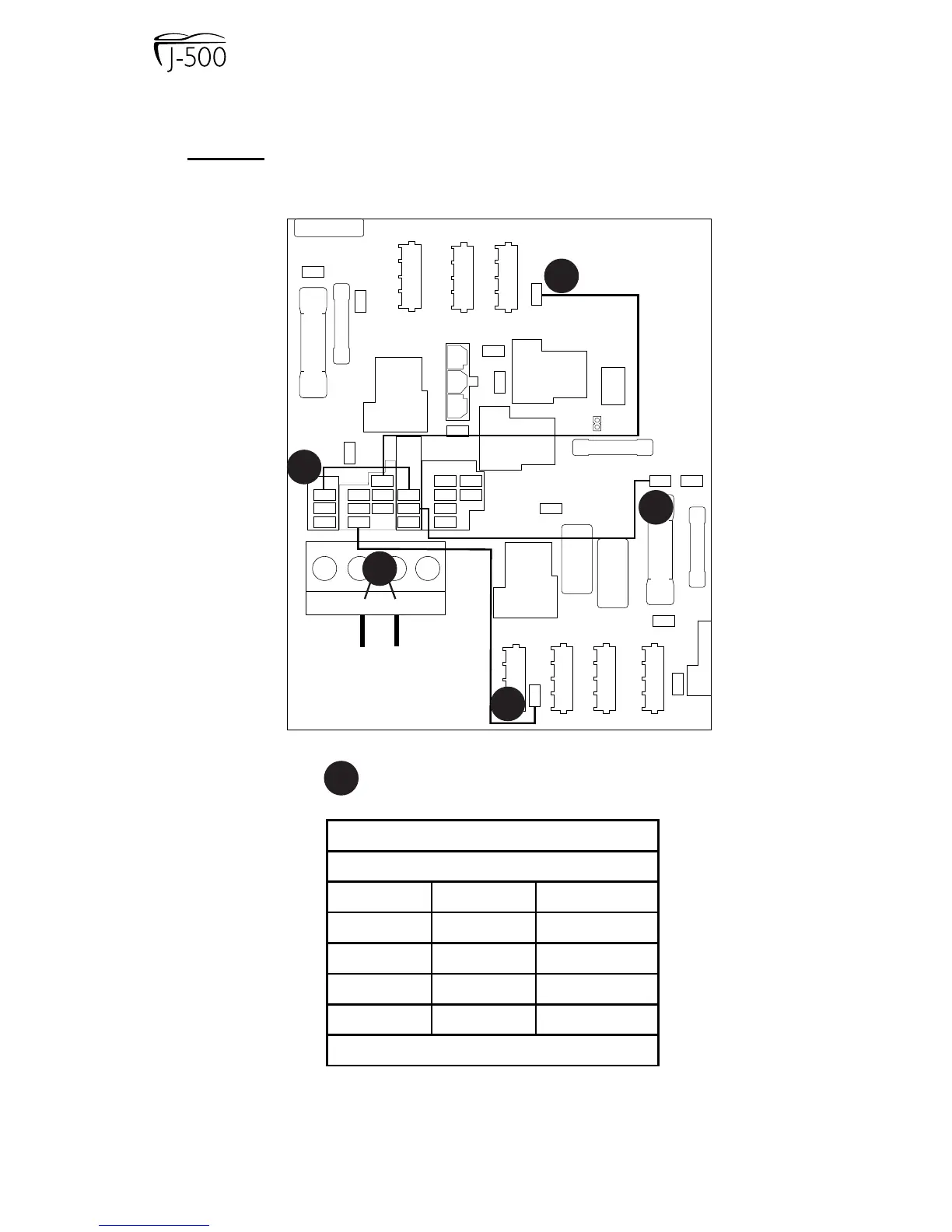

An optional setting for export models is for a single service breaker. The
jumper wiring is shown below. Additionally, the included extra White wire
(1*) must be installed.
TB1
4
3
2
1
BLU
BRN
SINGLE
SERVICE
PARTIAL VIEW OF THE CIRCUIT BOARD
J65
J51 J3
J52
J49
J59
J44
J48
J28
J30
J37
J60
J66
J55
J54
J38
J53
J45
J46
J47
J41
J58
J42
J31
J32
J33
J40
J64
J36
J35
1*
2
3
4
All components (Service 1)
A
A
Terminal Breaker at location:
JUMPER WIRING
Single Phase Connection Wiring
Wire From To
1* J33 J47
2 J59 J41
3 J36 J37
4 J46 J51
*Extra connection must be made
