– 9 –

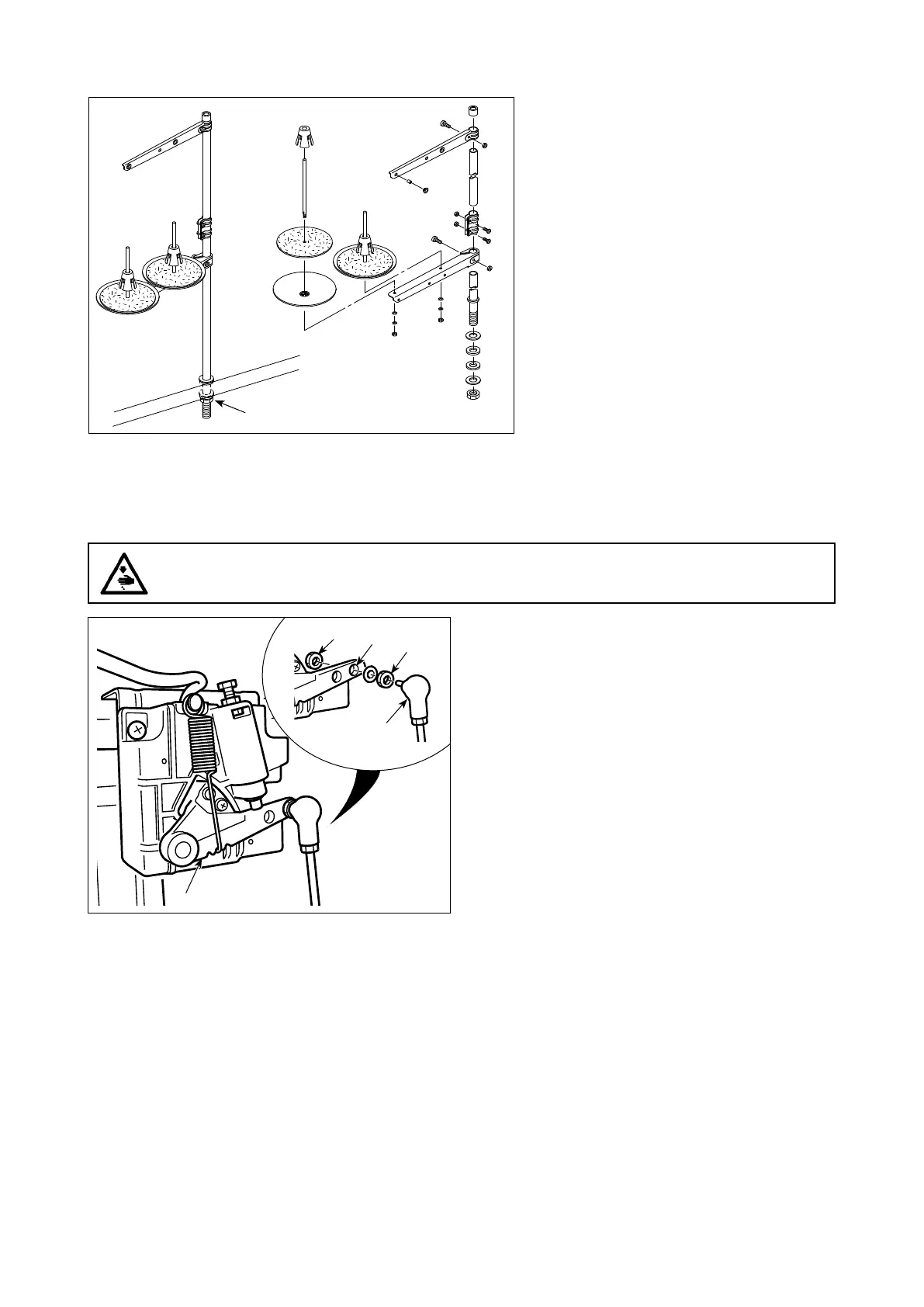

2-9. Installing the thread stand
1)
Assemble the thread stand unit, and in-
sert it in the hole in the machine table.
2) T
ighten
nut
❶
.
2-10.
Attaching the connecting rod
Fix connecting rod
❶
to installing hole of pedal lever
❷
with nut
❸
.
W
ARNING :
T
o protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power o and a lapse of 5 minutes or more.
11
