– 5 –

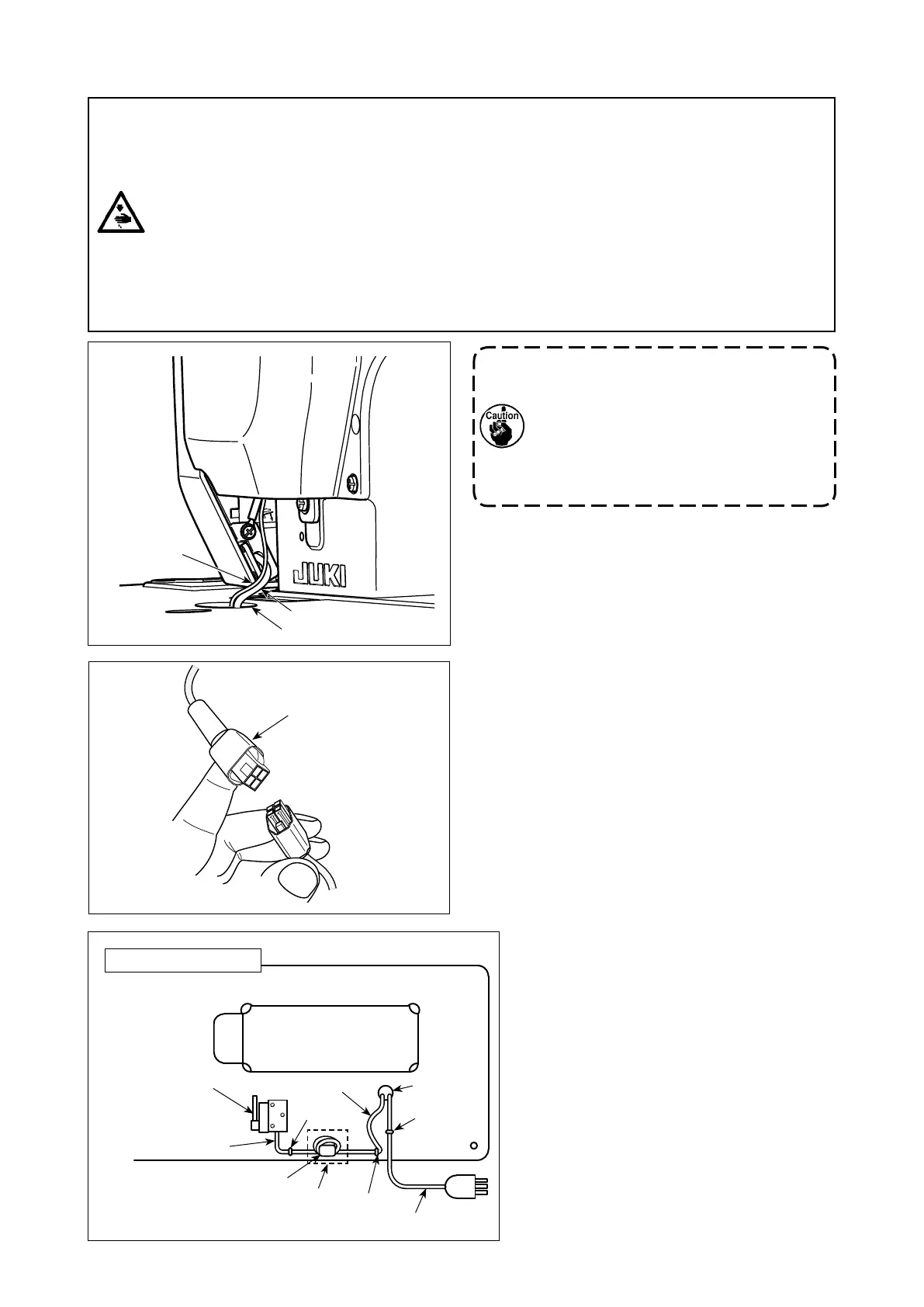

2-5. Connecting the connector
WARNING :
• To protect against personal injury resulting from abrupt start of the sewing machine, be sure to turn
the power OFF, unplug the machine and wait for ve minutes or more before installing the pedal
sensor.
• To prevent damage of device caused by maloperation and wrong specications, be sure to connect
all the corresponding connectors to the specied places. (If any of the connectors is inserted into a
wrong connector, not only the device corresponding to the connector can break but also it can start
abruptly, inviting the risk of personal injury.)
• To prevent personal injury caused by maloperation, be sure to lock the connector with lock.
• Do not connect the power plug until the connection of cords is completed.
• Fix the cords while taking care not to forcibly bend them or excessively clamp them with staples.
• As for the details of handling respective devices, read carefully the Instruction Manuals supplied
with the devices before handling the devices.
1. Do not insert the power plug into the
wall outlet.
2. Check to be sure that the power
switch is turned OFF.
3. Be sure to fully insert the connectors
into the corresponding ports until
they are locked.
Pedal sensor
Slack
Underside of the table
1) Draw out pedal sensor cable
❶
and AC input
cable
❷
coming from the electrical box to the
undersurface of the sewing machine table through
cable draw-out hole
❸
.
2) Connect pedal sensor cable
❶
and the connector
under the table.
3) Secure pedal sensor cable
❶
and AC
input cable
❷
with staples
❹
.
[EU-type models]
Install ring core
❺
.
For one ring core
❺
, clamp the pedal
sensor cable
❶
after winding the cable
round the torus of the ring core three
times.
Eu-type
