JUKI HZL-NX7 Service Manual

– 27 –
6-17 Motor belt
○
Remove the front panel.
Adjustmentprocedure
 1.Setthemotortimingbelttothemotorpulleyandthemotorshaftpulley.
 2.Adjustthemotorbracketsothatthebeltdeectionamountbecomes6±1mmwhenpressingthecenter
ofthebeltwithaforceof0.98N.Aftercompletionofadjustment,tightenthesetscrewinthemotorbracket.

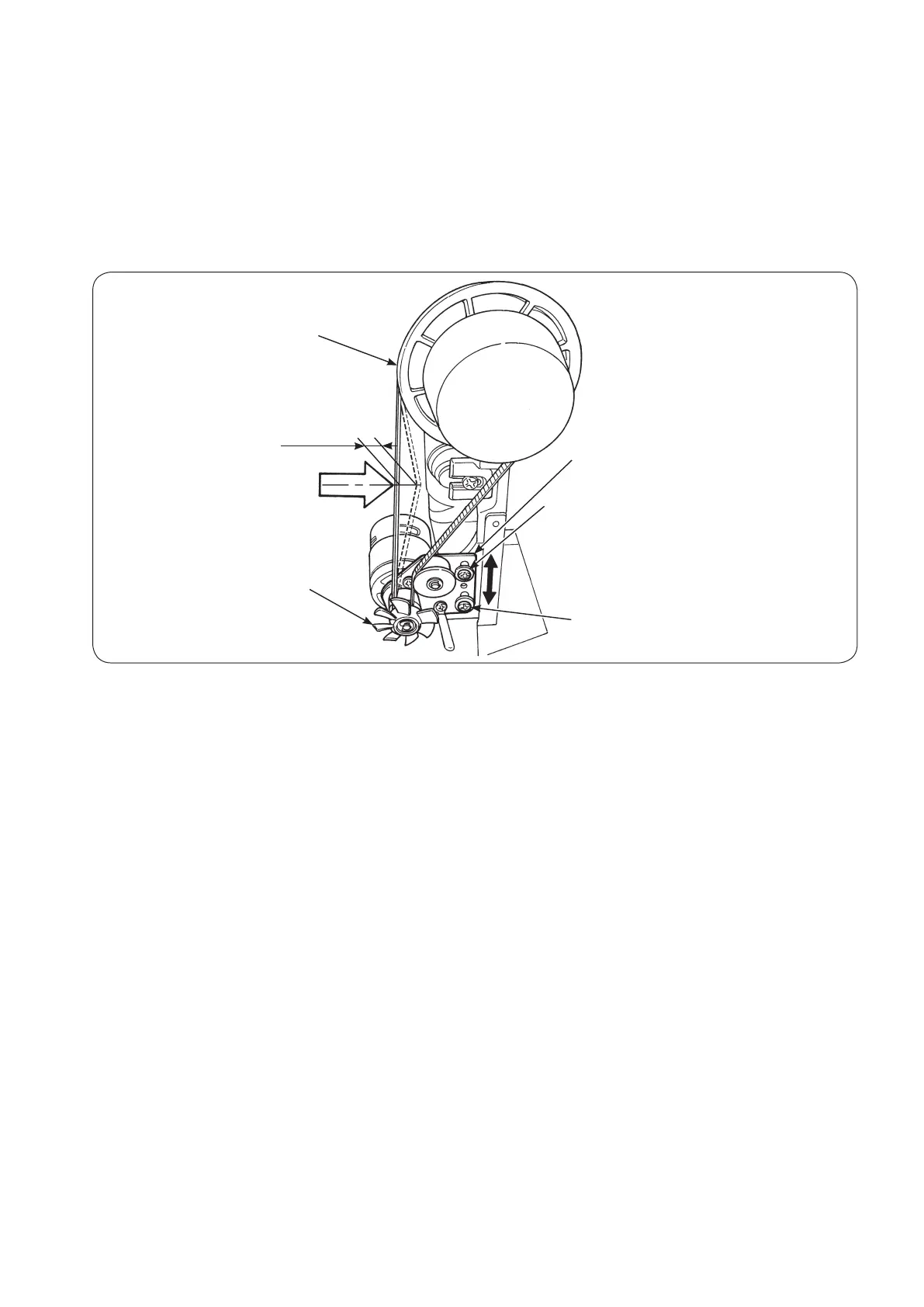

Motor pulley
Motor shaft pulley
Motor bracket
Setscrew of the motor bracket
Setscrew of the motor bracket
0.98 N
6 ± 1 mm
