JUKI HZL-NX7 Service Manual

– 30 –
6-19-2 Adjusting the height of the auto-lifter
○
Remove the needle.
1. In the state the power switch is turned OFF, keep the
reversefeedstitchingbuttonandthethreadtrimming
buttonheldpressedsimultaneouslyuntilthepower
switch is turned ON.

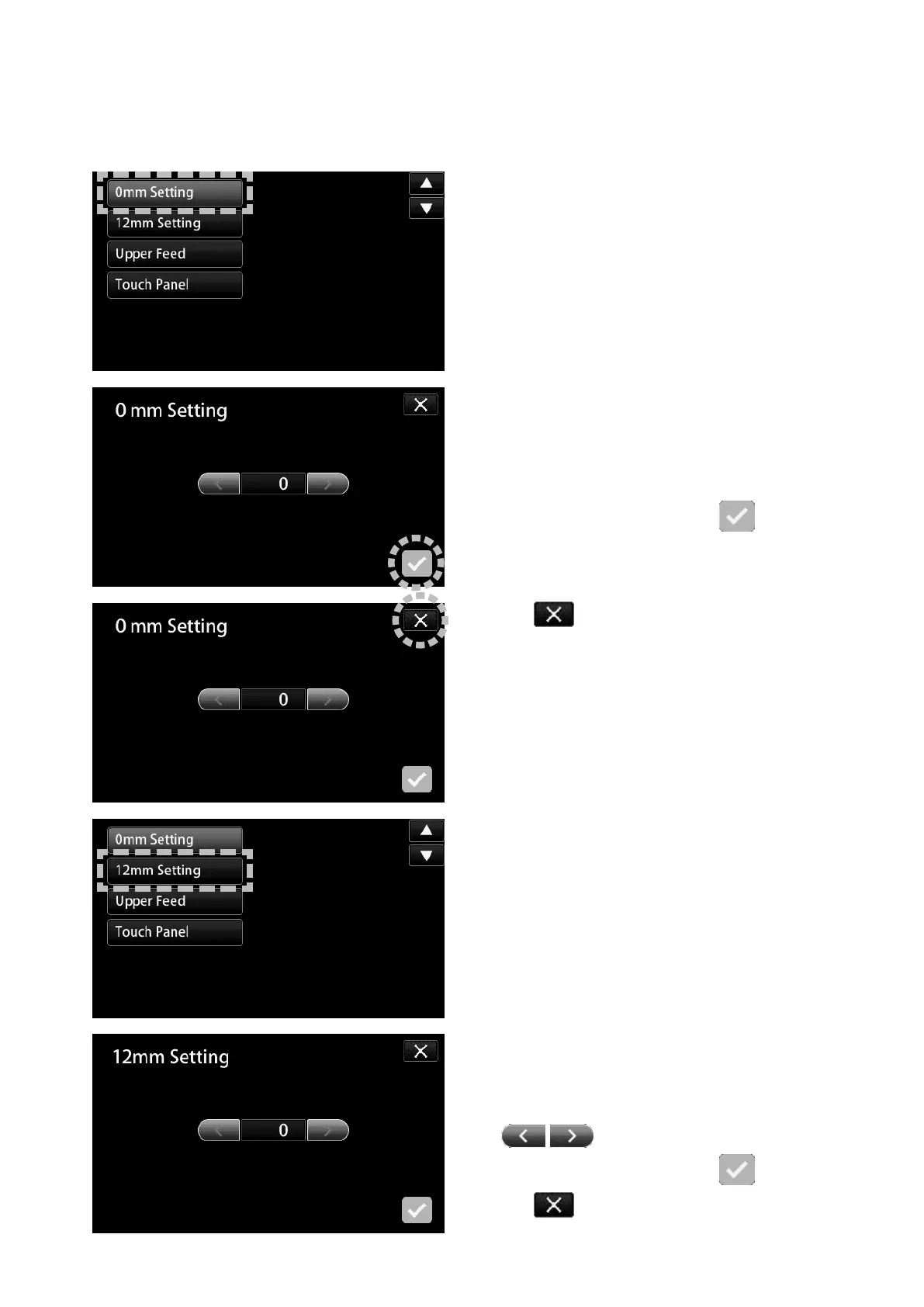

The Service mode screen is displayed. Proceed to the
2nd page screen and select "0mm Setting".
2. Turn the handwheel to lower the feed dog until it sinks
under the throat plate.
3. Push down the presser foot holder until the sole of
thebasicpresserfootcomesincontactwiththethroat
plate.
4. In the aforementioned state, press .
5. Press to return the screen to the selection screen
under the Service mode.
7. Lift the presser foot with the presser foot lifting lever.
Then,lowerthebasicpresserfootwitha12-mmspacer
placed under it.
* Carefully check the position of the needle bar.
* is not used.
8. In the aforementioned state, press .
9. Press to return the screen to the selection screen
under the Service mode.
6. Select "12mm Setting".
