JUKI LBH-1790 User Manual

– 116 –

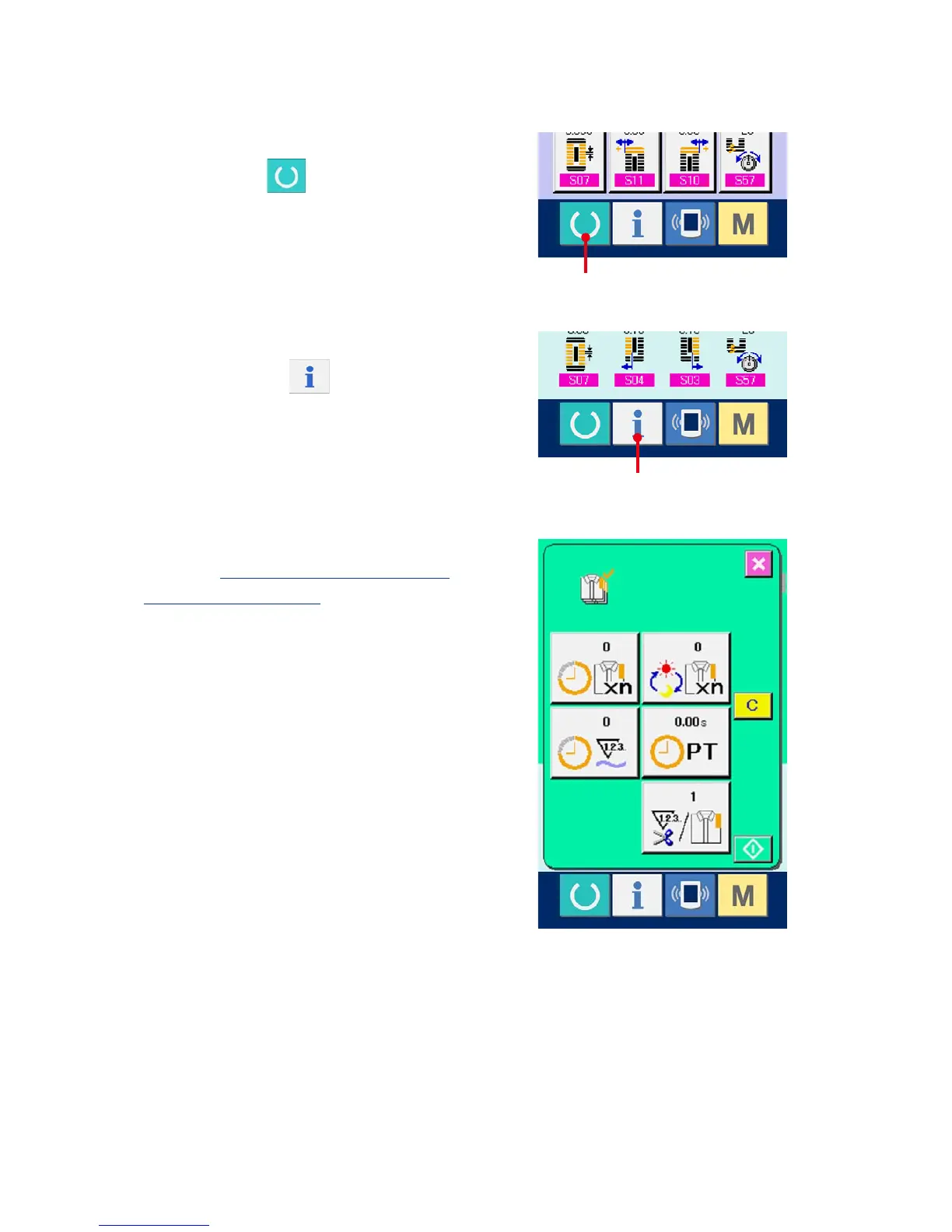

30-4-2 When displaying from the sewing screen
1
Display the sewing screen.
When READY key (A) of the switch seat
section is pressed in the data input screen, the
sewing screen is displayed.
2
Display the production control screen.
When information key (B) of the switch
seat section is pressed in the sewing screen, the
production control screen is displayed.
The contents of display and the functions are
common to
30-4-1 When displaying from the
information screen, p.114
.
A
B

JUKI LBH-1790 Specifications

General

Stitch Type	Lockstitch
Max Sewing Speed	4, 200 sti/min
Needle Bar Stroke	34.6 mm
Type	Industrial
Needle	DPx5
Motor	Servo Motor
Buttonhole Length	8 mm ~ 40 mm
