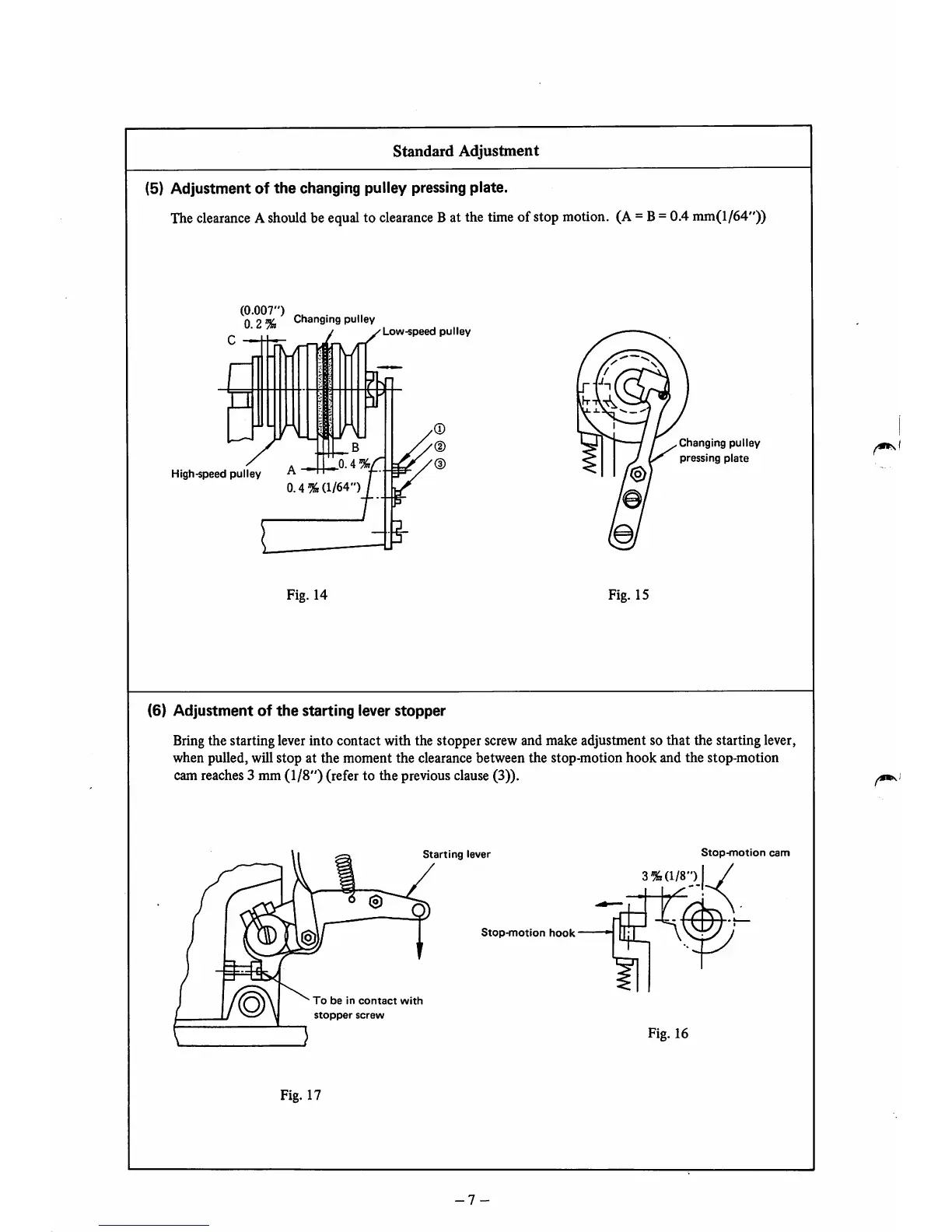

Standard Adjustment
(5) Adjustment of the changing pulley pressing plate.
The clearance A should be equal to clearance Bat the time ofstop motion. (A=B=0.4mm(l/64"))
(0.007") .
0 2% Changing pulley
j Low-speed pulley
fKTT
r\
High-speed pulley ^
B
0.4'
0.4% (1/64")
Fig. 14 Fig. 15
Changing pulley
pressing plate
(6) Adjustment of the starting lever stopper
Bring the starting lever into contact with the stopper screw and make adjustment so that the starting lever,
when pulled, will stop at the moment the clearance between the stop-motion
hook and the stop-motion
cam reaches3 mm (1/8") (refer to the previous clause(3)).
Starting lever
To be in contact with
stopper screw
Fig. 17
Stop-motion hook-
-7-
Stop-inotion cam
3% (1/8") I /
tn
Fig. 16
