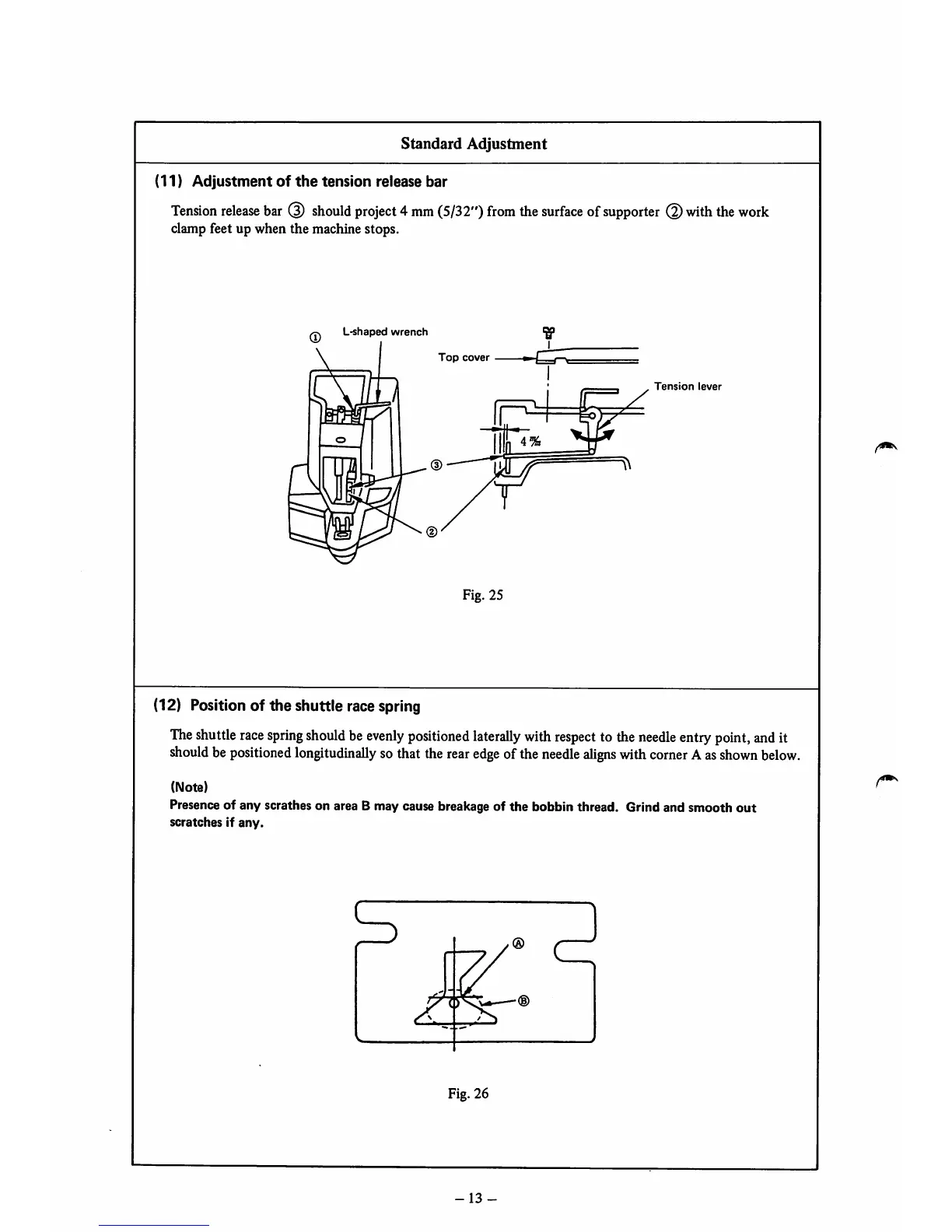

Standard
Adjustment
(11)
Adjustment
of
the
tension
release
bar
Tension
release
bar
(3)
should
project
4
mm
(5/32")
from
the
surface
of
supporter
with
the
work
clamp
feet
up
when
the
machine
stops.
L-shaped
wrench
"g"
Tension
lever
Fig.
25
(12)
Position
of
the
shuttle
race
spring
The
shuttle
race
spring
should
be
evenly
positioned
laterally
with
respect
to
the
needle
entry
point,
and
it
should
be
positioned
longitudinally
so
that
the
rear
edge
of
the
needle
aUgns
with
corner
A
as
shown
below.
(Note)
Presence
of
any
scrathes
on
area
B
may
cause
breakage
of
the
bobbin
thread.
Grind
and
smooth
out
scratches
If
any.
Fig.
26
-
13
-
