JUKI LK-1854-6 User Manual

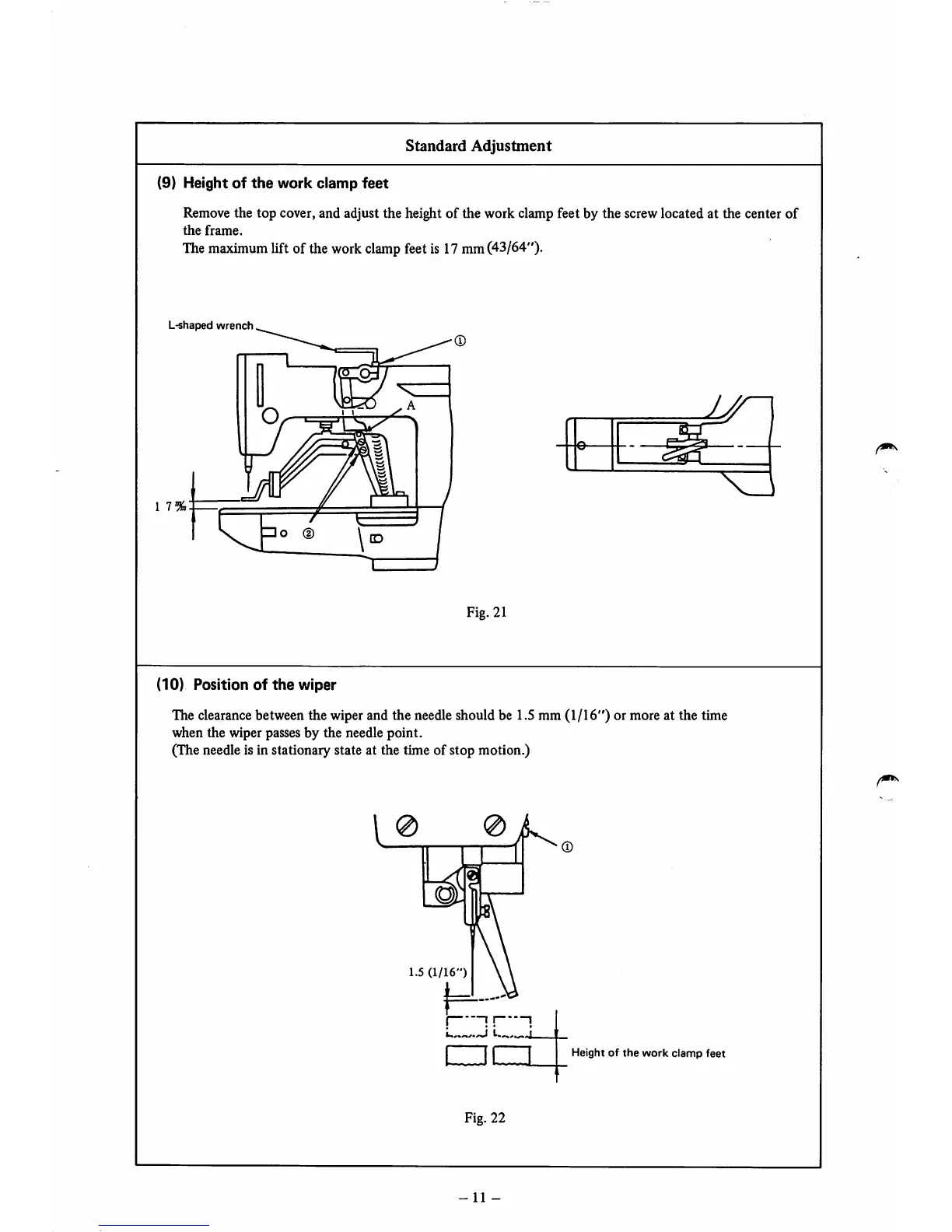

Standard Adjustment
(9) Height of the work clamp feet
Remove the top cover, and adjust the height of the work clamp feet by the screwlocated at the center of
the frame.
The maximum lift of the work clamp feetis 17mm(43/64").
L-shaped wrench
1 7
(10) Position of the wiper
Fig. 21
j/r^
r\
A
The clearance between the wiper and the needle should be 1.5 mm (1/16") or more at the time
when the wiper passes by the needle point.
(The needleis in stationary state at the time of stop motion.)
o
1.5 (1/16")
j ;! 1
•czi
Height of the work clamp feet
Fig. 22
-11 -
From the library of: Superior Sewing Machine & Supply LLC
