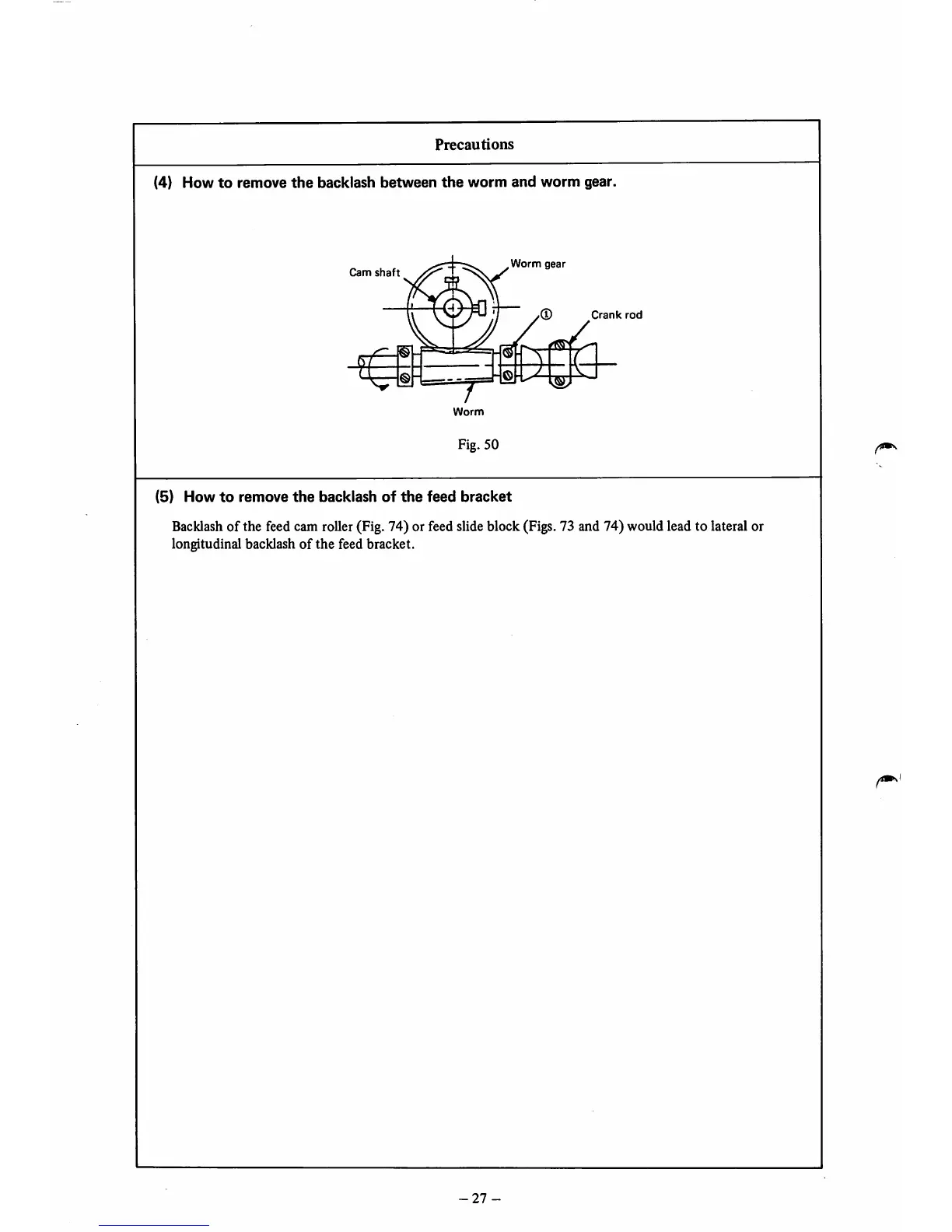

Precautions
(4)
How
to
remove
the
backlash
between
the
worm
and
worm
gear.
Cam
shaft
Worm
gear
(D
Crank
rod
Worm
Fig.
50
(5)
How
to
remove
the
backlash
of
the
feed
bracket
Backlash
of
the
feed
cam
roller
(Fig.
74)
or
feed
slide
block
(Figs.
73
and
74)
would
lead
to
lateral
or
longitudinal
backlash
of
the
feed
bracket.
-27-
