JUKI LK-1854-6 User Manual

3. STANDARD ADJUSTMENT FLOW CHART
Adjustment of
stop-motion mechanism
Positioning the
stop-motion hook
Adjusting the
stop-motion timing
Adjusting the
safety plate
Adjustment of
speed reducer
Adjusting the
chan^ng pulley
pressing plate
Adjusting the starting
lever stopper

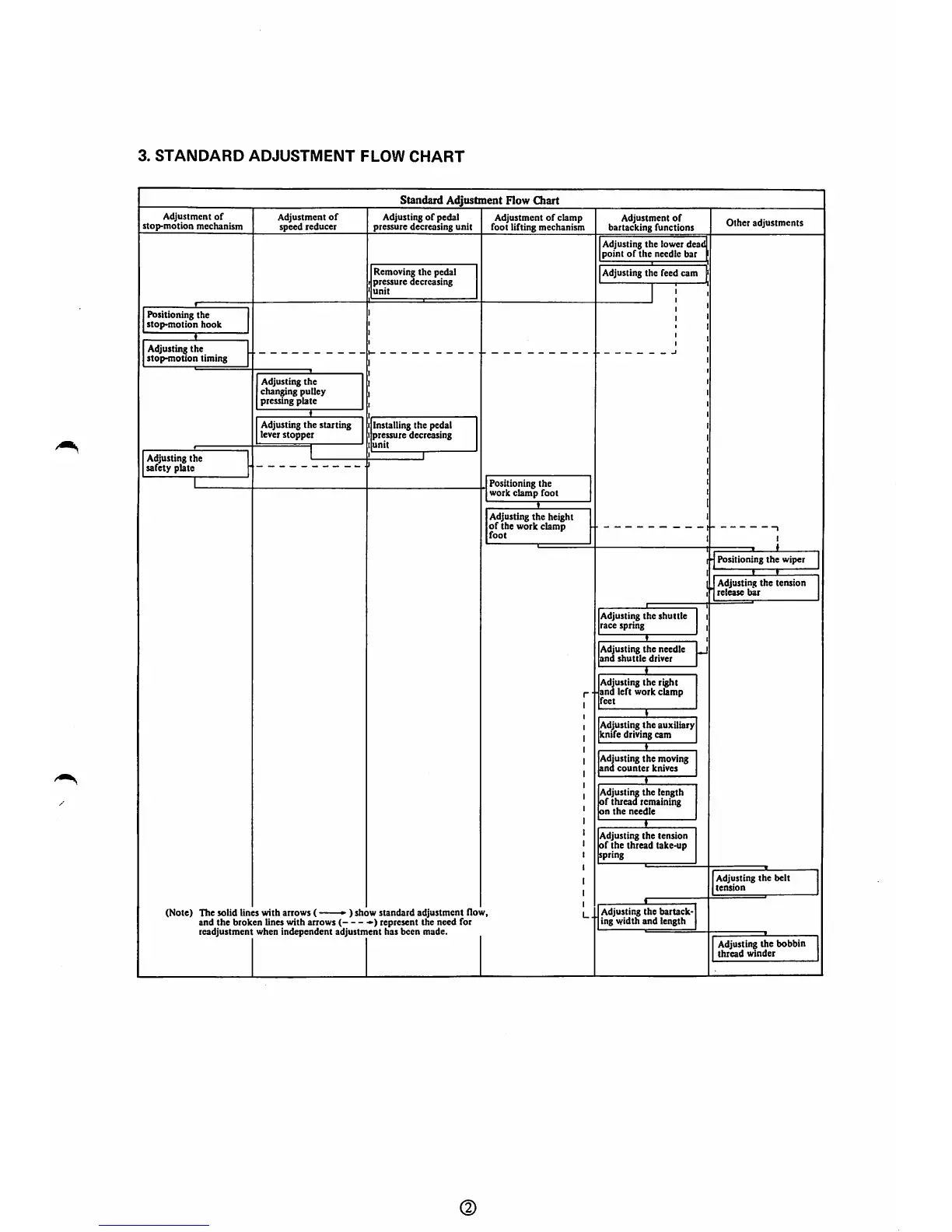

Standard Adjustment Flow Chart
Adjusting of pedal
pressure decreasing unit
Removing the pedal
pressure decreasing
unit
Installing the pedal
pressure decreasing
unit
Adjustment of clamp
foot lifting mechanism
Positioning the
work clamp foot
Adjusting the height
of the work clamp
foot
Adjustment of
bartacking functions
Adjusting the lower deat
point of the needle bar
Adjusting the feed cam
Adjusting the
shuttle
race spring
Adjusting the needle
and shuttle driver
Adjusting the right
and left work clamp
feet
Adjusting the auxiliary
knife driving cam
Adjusting the moving
and counter knives
Adjusting the length
of thread remaining
on the needle
Adjusting the tension
of the thread take-up
spring
(Note) The solid lines with arrows ( , ,
and the broken lines with arrows ( -•) represent the need for
readjustment when independent adjustment has been made.
) show standard adjustment flow.
U.
Adjusting the bartack
ing width and length
@
Other adjustments
t-
Positioning the wiper
Adjusting
the teiuion
release bar
Adjusting the belt
tension
Adjusting the bobbin
thread winder
