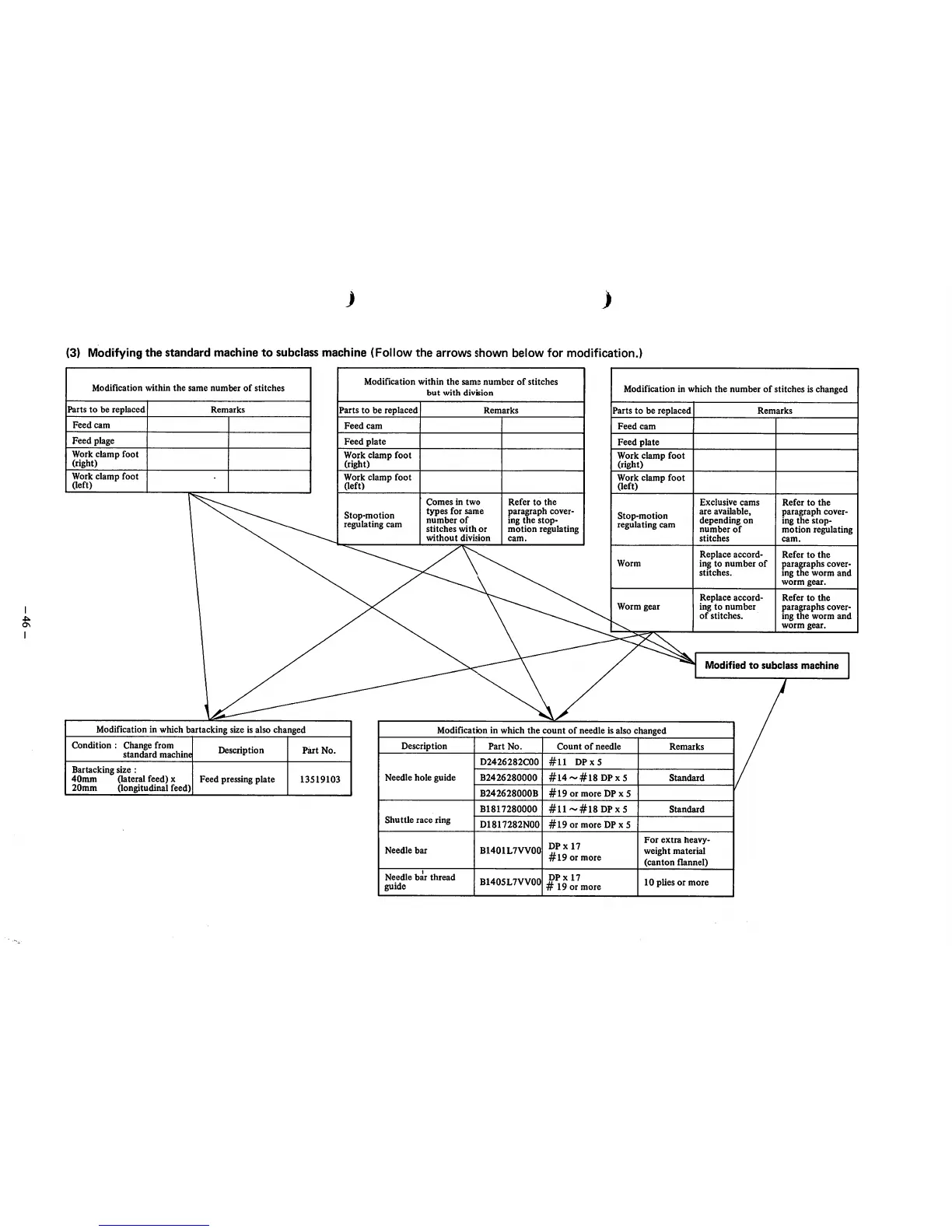

(3) Modifying the standard machine to subclass machine (Follow the arrows shown below for modification.)
Modification within the same number of stitches
Parts to be replaced
Remarks
Feed cam
Feed plage
Work
clamp foot
(right)
Work
clamp foot
aeft)
Modification within the same number of stitches
but with division
Parts to be replaced
Remarks
Feed cam
Feed plate
Work clamp foot
(right)
Work clamp foot
Oeft)
Stop-motion
regulating cam
Comes in two
types for same
number of
stitches with or
without division
Refer to the
paragraph cover
ing the stop-
motionreflating
cam.
Modification in which the number of stitches is changed
Parts to be replaced Remarks
Feed cam
Feed plate
Work clamp foot
(right)
Work clamp foot
(left)
Stop-motion
regulating cam
Exclusive cams
are available,
depending on
number of
stitches
Refer to the
paragraph cover
ing the stop-
motion reflating
cam.
Worm
Replace accord
ing to number of
stitches.
Refer to the
paragraphs cover
ing
the worm and
worm gear.
Worm gear
Replace accord
ing to number
of stitches.
Refer to the
paragraphs cover
ing
the worm and
worm gear.
Modified to subclass machine
Modification in which bartacking size is also changed
Condition ; Change from
standard machine
Description
Part No.
Bartacking size :
40mm (lateral feed) x
20mm (longitudinal feed)
Feed pressing plate
13519103
Modification in which the count of needle is also changed
Description
Part No. Count of needle
Remarks
Needle hole guide
D2426282C00
#11 DPx5
B2426280000
#14 ~ #18 DP X5
Standard
B242628000B
#19 or more DP x 5
Shuttle race ring
B1817280000
#ll'-#18DPx5 Standard
D1817282N00 #19 or more DP x 5
Needle bar
B1401L7W00
DPxl7
#19 or more
For extra heavy
weight material
(canton flannel)
Needle bm: thread
guide
B1405L7VV00
DPx 17
# 19 or more
10 plies or more
