JUKI LK-1854-6 User Manual

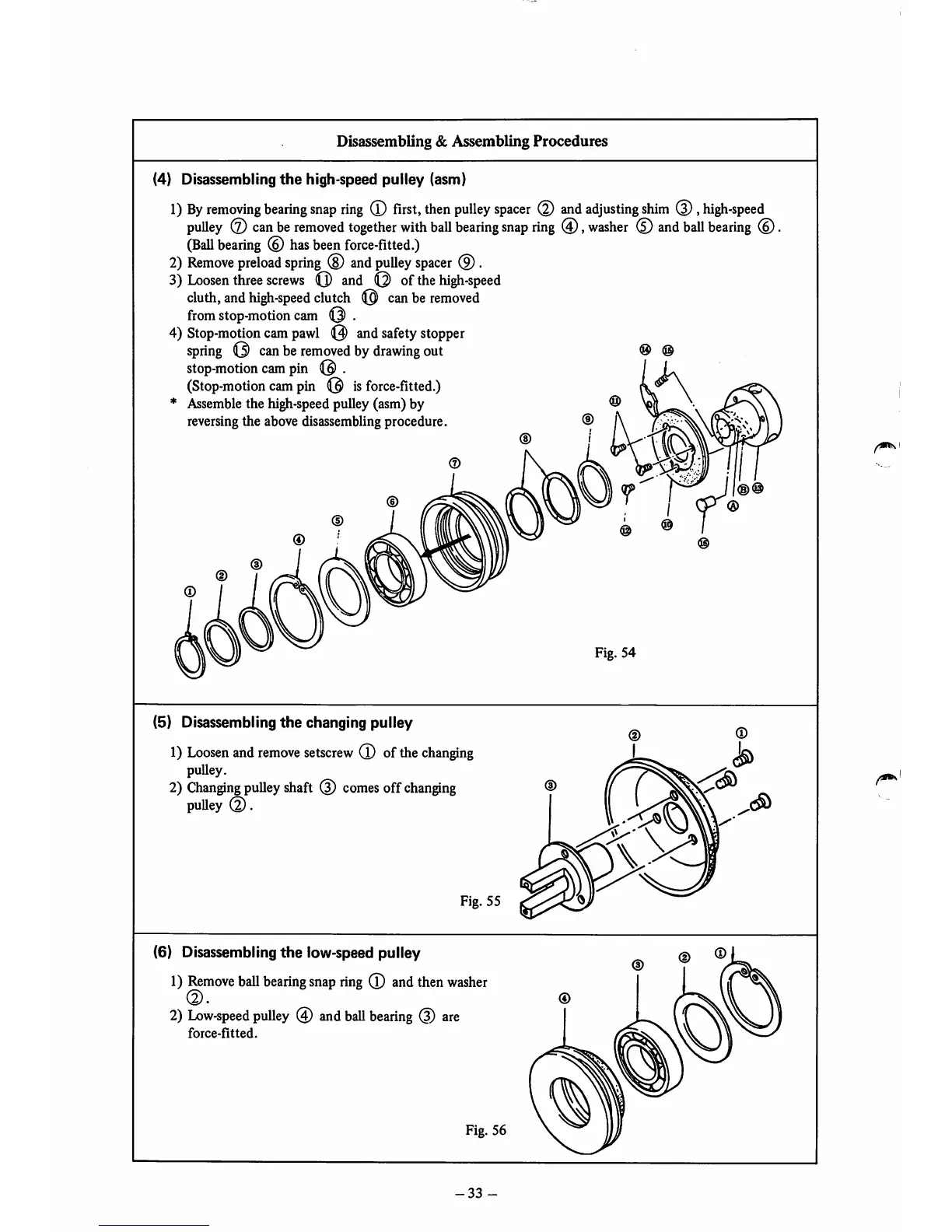

Disassembling & Assembling Procedures
(4) Disassembling the high-speed pulley (asm)
1) By removing bearing snap ring (D first, then pulley spacer and adjusting shim (D, high-speed
pulley (2) can be removed together with ball bearing snap ring 0, washer 0 and ball bearing 0
(Ball bearing 0 has been force-fitted.)
2) Remove preload spring 0 and pulley spacer 0 .
3) Loosen three screws O and © of the high-speed
cluth, and high-speed clutch @ can be removed
from stop-motion cam 0) .
4) Stop-motion cam pawl and safety stopper
spring O can be removed by drawing out
stop-motion cam pin (0) .
(Stop-motion cam pin 0 is force-fitted.)
* Assemble the high-speed pulley (asm) by
reversingthe above disassemblingprocedure.
<D
(5) Disassembling the changing pulley
1) Loosen and remove setscrew 0 of the changing
pulley.
2) Changing pulley shaft 0 comes off changing
pulley (2).
Fig. 55
(6) Disassembling the low-speed pulley
1) Remove ball bearing snap ring 0 and then washer
2) Low-speed pulley @ and ball bearing @ are
force-fitted.
Fig. 56
-33
0
From the library of: Superior Sewing Machine & Supply LLC
