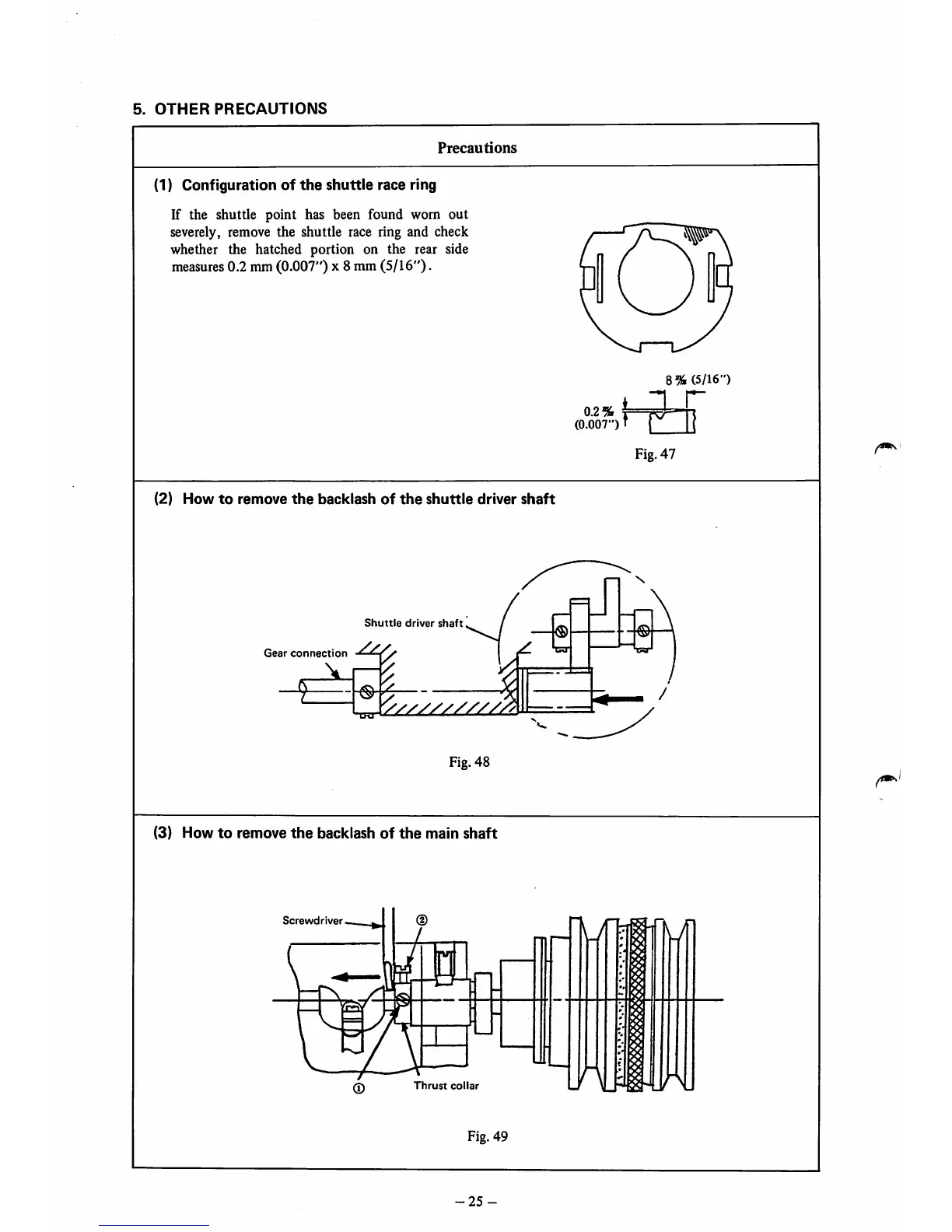

5.
OTHER
PRECAUTIONS
Precautions
(1)
Configuration
of
the
shuttle
race
ring
If the shuttle point has been found worn
out
severely, remove the shuttle race ring and check
whether the hatched portion on the rear side
measures
0.2 mm(0.007") x 8 mm (5/16").
0.2%
(0.007")
(2)
How
to
remove
the
backlash
of
the
shuttle
driver
shaft
Shuttle
driver
shaft
Gear
connection
^ 1 ^
Fig. 48
(3)
How
to
remove
the
backlash
of
the
main
shaft
Screwdriver
0 Thrust collar
Fig. 49
-25-
-t
8%
(5/16")
* n r
Fig. 47
